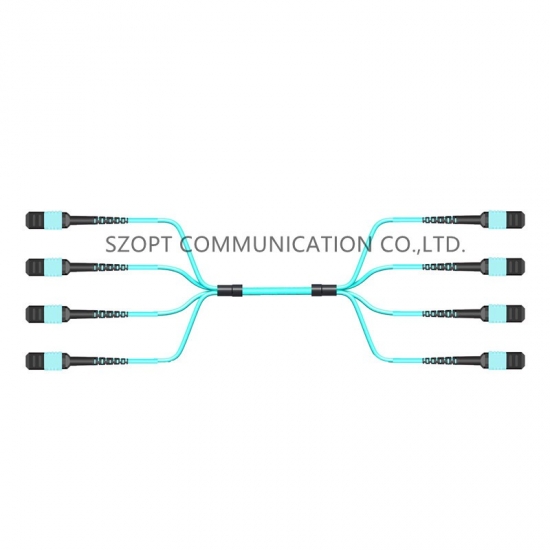

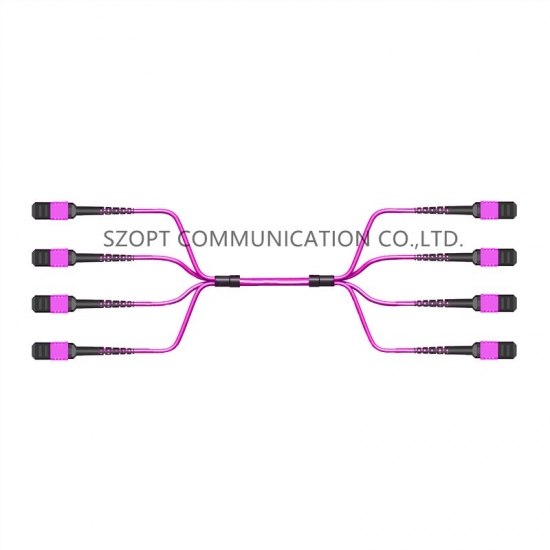

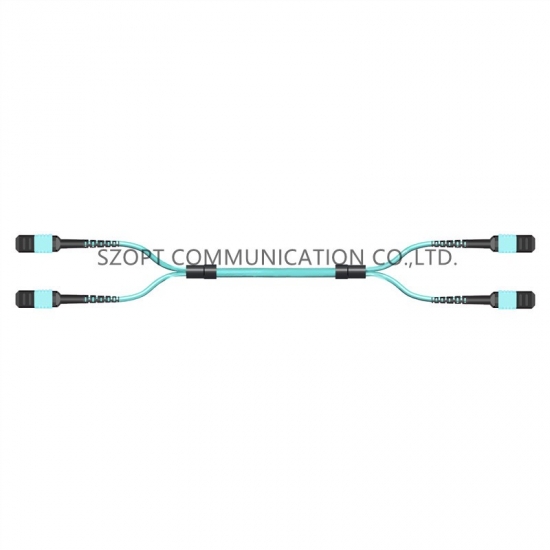

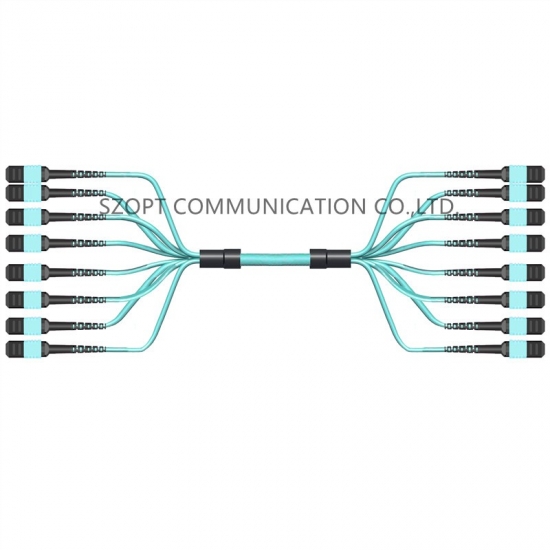

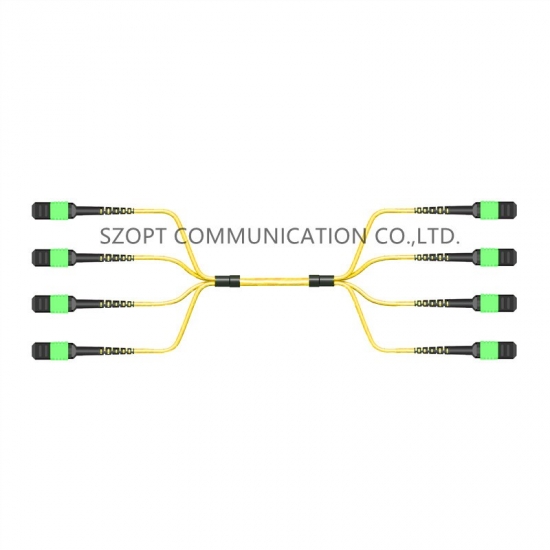

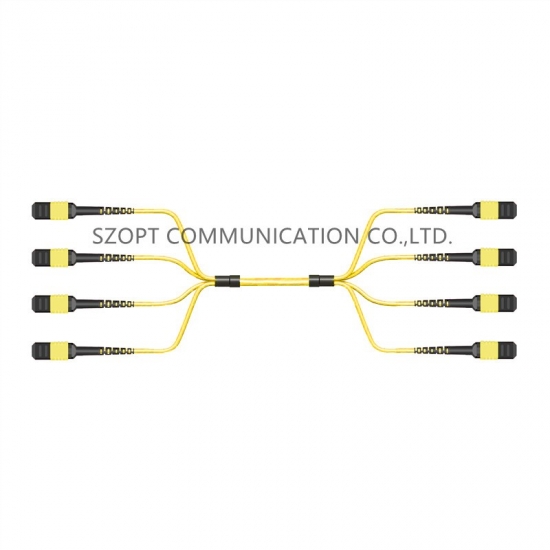

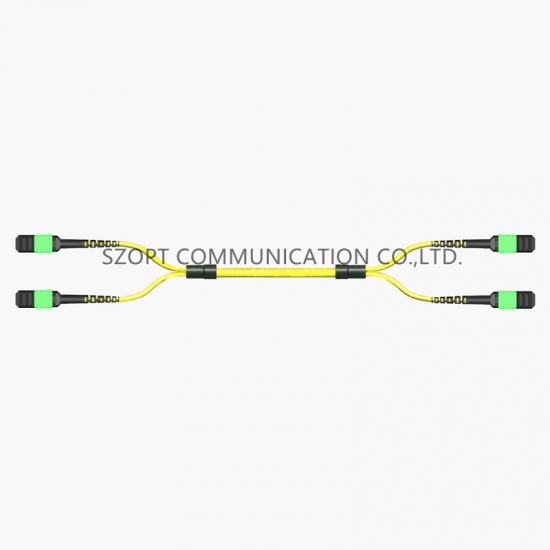

MPO/MTP-MTP/MTP Trunk Cable SM MM OM3 OM4 OM5 24-144core

MPO/MTP-MTP/MTP Trunk Cable SM MM OM3 OM4 OM5 24-144core

MPO/MTP Trunk Cable 24/48/72/96/144 Core is type of multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment with at least 2pcs of MPO/MTP connectors, reducing network installation or reconfiguration time and cost.MTP/MPO are used to interconnect cassettes, panels, or fan outs using a compact and rugged microcables structre. The compact cable optimizes cableway use and improve airflow.These MPO/MTP cable are build with the highest quality components , Low loss elite(premium) versions are offered accordingly,please contact SZOPT for details.

  • Payment:

    T/T,WU,L/C,etc.
  • Product origin:

    CN
  • Color:

    Yellow,Aqua or custom
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    3-15 days
  • Product Details

MPO/MTP-MTP/MTP SM MM OM3 OM4 OM5 Trunk Cable 24-144core


We have a complete strict quality control system,from raw material,production process,inspection,packing,etc. to ensure the top quality of the finished products reach 100% qualification before exporting . We never let any defect out of factory.

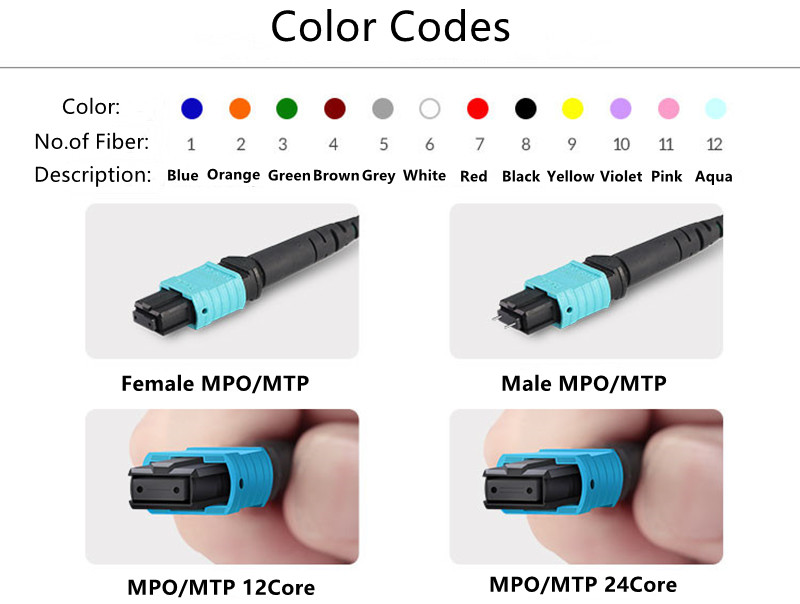

MPO MTP in Female Male

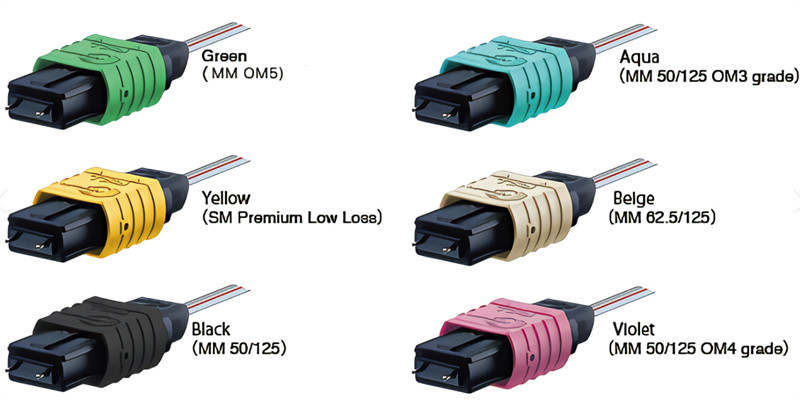

Different MPO MTP Connectors

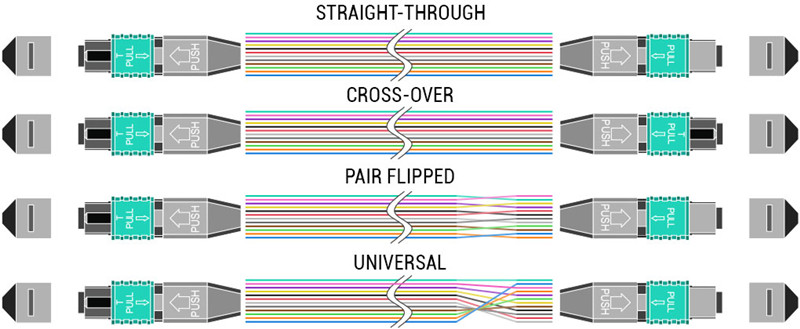

MPO MTP Polarities

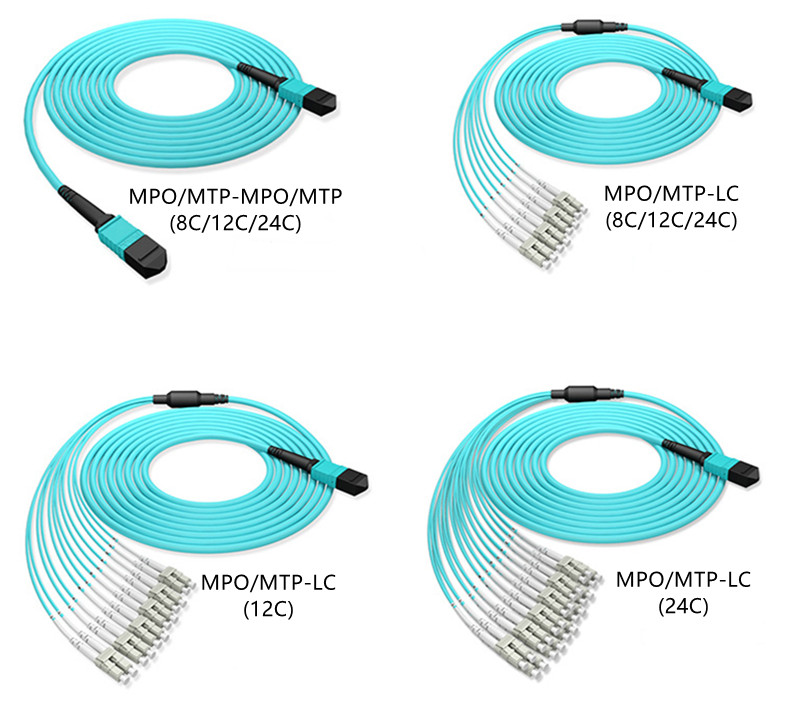

MPO MTP Cable assemblies

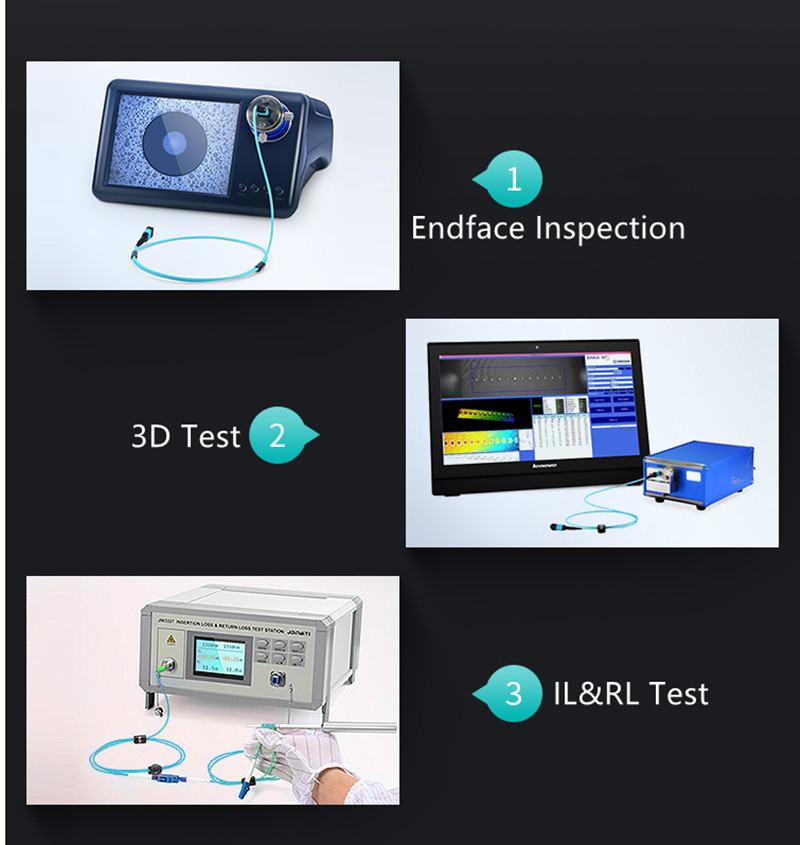

Test of patch cables

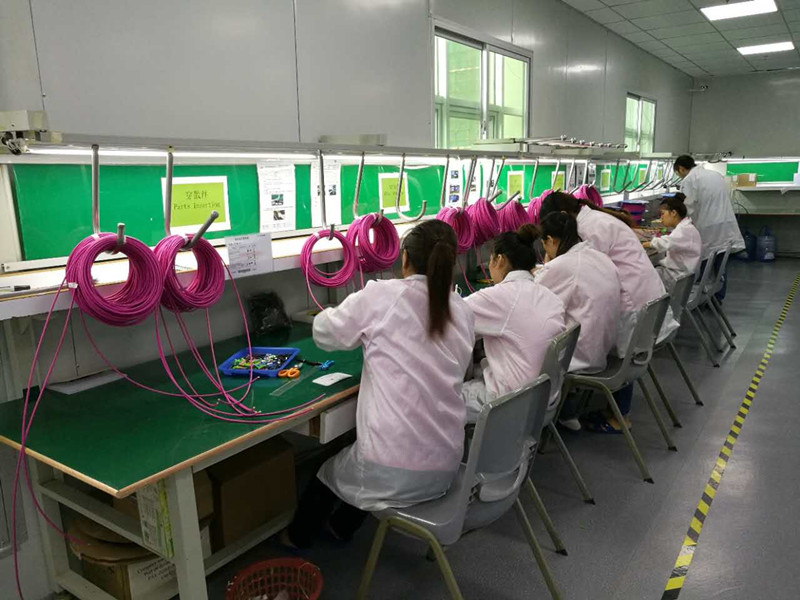

MPO MTP WORKSHOP

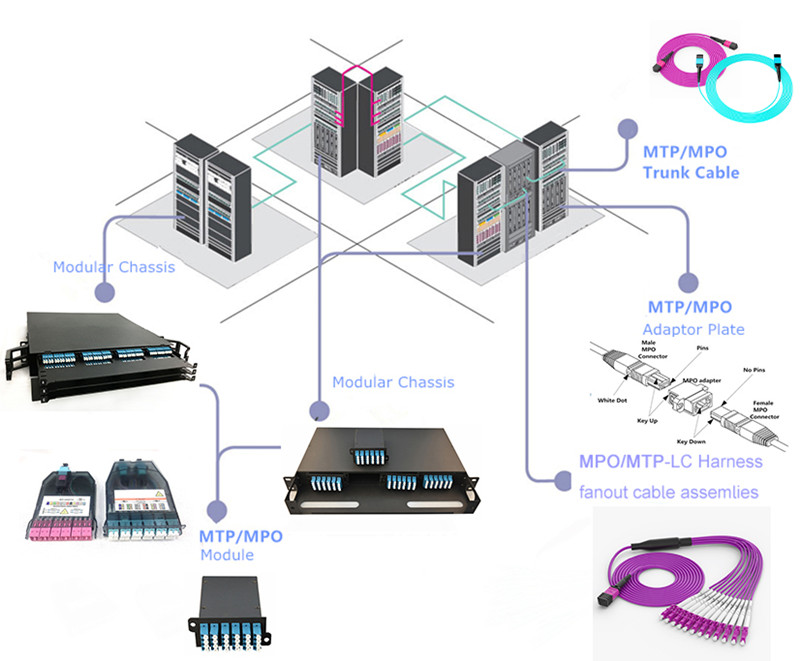

MPO MTP Appliance

Goods ready to ship


Application:

Telecommunication System

Testing Equipment

CATV System

LAN System


Feature:

Low Insertion Loss

High Return Loss

High Reliability and Stability

0.9mm,2.0mm,3.0mm or custom


Package:

Each piece in a small PE bag,then 10pcs or 20pcs in a big bag,finally put into carton box.


Specification

Connector

Fiber Mode

Endface

Standard

Elite(Premium)

IL(max) (dB)

RL(min) (dB)

IL(max) (dB)

RL(min) (dB)

MPO/MTP

Singlemode

APC

≤0.75

≥60

≤0.35

≥60

Multimode

PC

≤0.60

≥20

≤0.35

≥20
