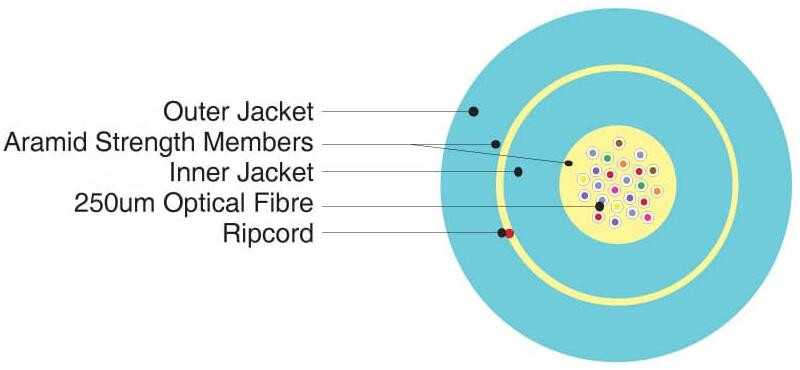

MPO MTP Trunk Cable Double Jacket SM MM OM3 OM4 OM5 12C 24C 48C

MT-MT MT-FA Patch Cable Assembly is mainly used for a parallel optical technology module (QSFP), which connects the internal optical lens and external port to meet the signal transmission of the optical module. There are two types of MT-MT and MT-FA optional; SZOPT can provide all kinds of MT short patch cable products. It has the advantages of stable transmission and high reliability.

SZOPT’s MPO/ MTP loopback is a device widely used for parallel connection tests and an aging test of optical communication equipment. Our MPO/MTP loopback adapter can transmit the optical network signal from the transmitter to the receiver, thereby forming the optical signal receiving and transmitting loop. MPO/MTP loopback provides a fast and efficient way to test the transmission capacity and receiving sensitivity of optical network equipment. The MPO/MTP loopback has 8F, 12F, 16F, 24F, 32F channels with low loss, singlemode and multimode(OM1/OM2/OM3/OM4/OM5) options.

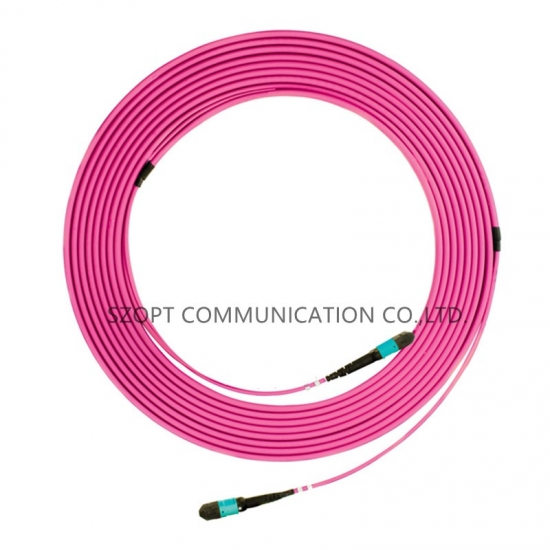

MPO/MTP Trunk Cable 24/48/72/96/144 Core is type of multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment with at least 2pcs of MPO/MTP connectors, reducing network installation or reconfiguration time and cost.MTP/MPO are used to interconnect cassettes, panels, or fan outs using a compact and rugged microcables structre. The compact cable optimizes cableway use and improve airflow.These MPO/MTP cable are build with the highest quality components , Low loss elite(premium) versions are offered accordingly,please contact SZOPT for details.

MPO/MTP to LC harness cables are used to fan out the multicore MPO/MTP fibers into generic connectors, usually it is MPO/MTP to LC, but SZOPT can also make it MPO/MTP to SC/ST/FC/MTRJ/E2000, etc. The MPO/MTP harness cable is used to transit from backbone trunk cables to fiber management racks, cable sheaths available are Mini-Core Plenum (OFNP), Mini-Core Riser (OFNR), Mini-Core Low Smoke Zero Halogen (LSZH), typical optical fiber types are single mode OS2, multimode OM1, OM2, OM3, OM4, OM5. The MPO/MTP to LC harness cables are usually 3mm ruggedized furcation legs in customized length, this will hep make it more rugged.

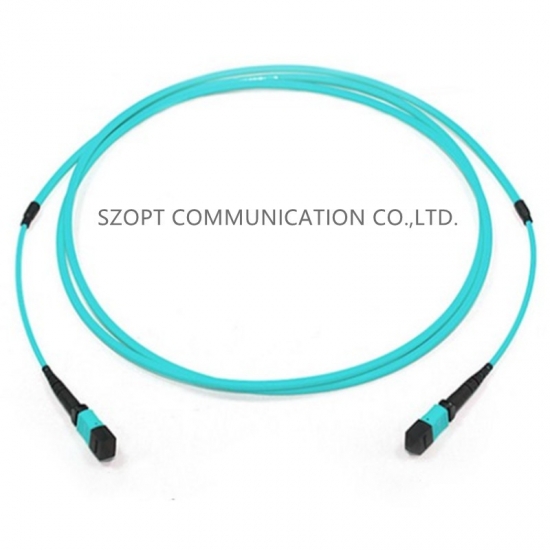

MPO/MTP Trunk Cable 12/16/24 Core is type of multicore cable assembly facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost.MTP/MPO are used to interconnect cassettes, panels, or fan outs using a compact and rugged microcables structure. The compact cable optimizes cable way use and improve airflow.These MPO/MTP cable are build with the highest quality components , Low loss elite(premium) versions are offered accordingly,please contact SZOPT for details.

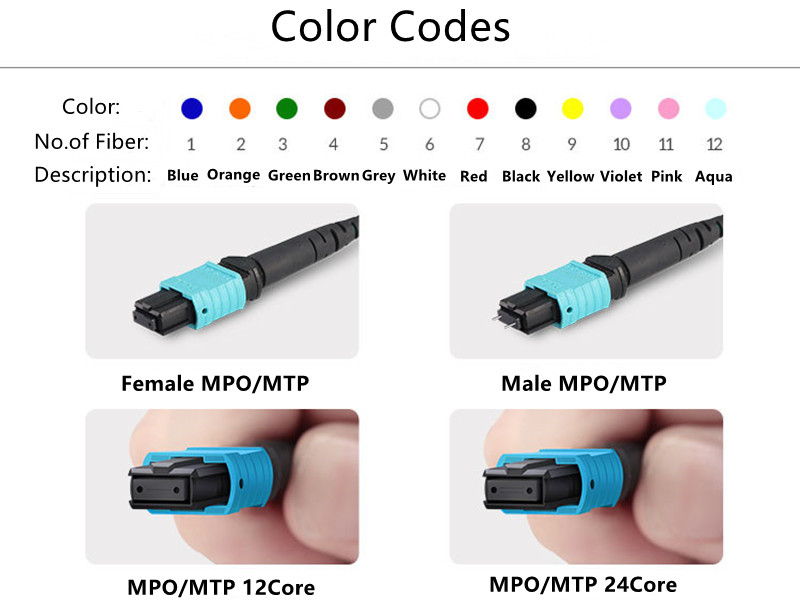

MPO/MTP harness cable 0.9mm, also known as MPO/MTP breakout cable or MPO/MTP fan-out cable, is a kind of patch cords terminated with MPO/MTP connectors on one end and MTP/MPO/LC/FC/SC/S,etc. connectors(generally MTP to LC) on the other end used for inside the MPO/MTP cassette.Female and Male MPO/MTP Connector is available.SZOPT can offer Single mode and Multimode MTP fiber optical patch cables in colors or custom,please reach us for details.

MPO MTP Trunk Cable 12/16/24 Core is type of multicore cable assembly facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.MTP/MPO are used to interconnect cassettes, panels, or fan outs using a compact and rugged microcables structre. The compact cable optimizes cableway use and improve airflow.These MPO/MTP cable are build with the highest quality components , low loss version,elite(premium).

The pulling eye can further speed up the installation process compared with filed termination. It saves time during installation of conduits, ducts or risers. In addition, the pulling eye protects the connectors of the trunk cables and prevents the cables from twisting during the installation process. Since the pulling eye is strain relived directly onto the outer jacket.With the pulling eye,the tension strength of the cables can reach up to 245N.

FTTA is a broadband network architecture to connect the building base band unit (BBU) to the remote radio unit (RRU) at the top of the tower by using optical fibers to replace part or all of the coaxial network. FTTA technology can greatly reduce the loss of signal power. And up to 20km’s maximum transmission distance helps realize centralized placement of base stations in lower-cost telecommunication rooms as well as more flexible and modularized network planning.

SZOPT’s 19” 1U/2U/3U/4U fiber swing out patch panel are SC/FC/ST/LC port available ,12C/24C/48C/96C/144C/288C fibers with the cold rolled steel powder well coated,designed to fit standard 19” racks. These patch panels are ideal for high density LAN interconnect or cross-connect patching,providing a designated terminus for interrelated cabling deployments.

SZOPT’s SC/APC OptiTap connector cable assemblies provide a cost effective, convenient operation, environmental seal and mechanical protection solution. The design makes the connector has blind-mating function, provides quick installation solutions and has good performance, it can be compatible with all the similar products in market, such as Corning Opitap-SC and H-type connector, Cable can be 2×3.0mm, 2×5.0mm flat drop or 5.0mm and 7.0mm round cable, amored or non-amored. Please reach us for details.

ADSS is the short form of All-dielectric Self-supporting,ADSS cable is a type of fiber optic cable that is strong enough to support itself between structures without containing conductive metal elements. The fibers can be arranged in ADSS cables with a maximum of 144 fibers. ADSS fiber optic cable is designed for outside plant aerial and duct applications in local and campus network loop architectures from pole-to-building to town-to-town installations. The cabling system that includes cables, suspension, dead-end, and termination enclosures offers a comprehensive transmission circuit infrastructure with high-reliability performance.
