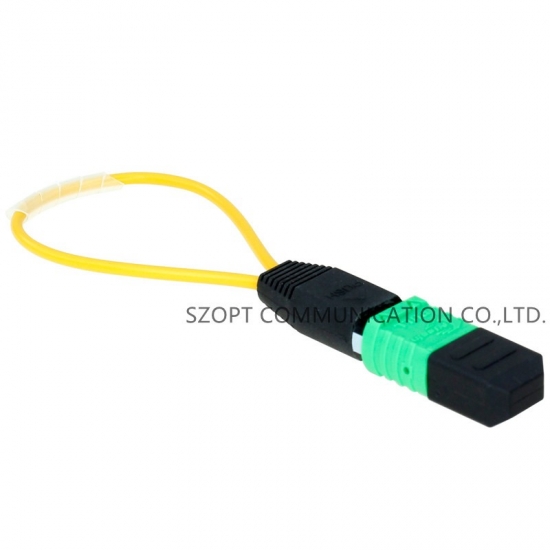

Fiber Optical Loopback MPO/MTP SM OM1/OM2/OM3/OM4/OM5

SZOPT’s MPO/ MTP loopback is a device widely used for parallel connection tests and an aging test of optical communication equipment. Our MPO/MTP loopback adapter can transmit the optical network signal from the transmitter to the receiver, thereby forming the optical signal receiving and transmitting loop. MPO/MTP loopback provides a fast and efficient way to test the transmission capacity and receiving sensitivity of optical network equipment. The MPO/MTP loopback has 8F, 12F, 16F, 24F, 32F channels with low loss, singlemode and multimode(OM1/OM2/OM3/OM4/OM5) options.

  • Payment:

    T/T,WU,L/C,etc.
  • Product origin:

    CN
  • Color:

    Magenta or custom
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    3-15 days
  • Product Details

Fiber Optical Loopback MPO/MTP SM OM1/OM2/OM3/OM4/OM5


The MPO/MTP loopback occupies both ends of fiber in a duplex connector or a multicore connector. This MPO/MTP loopback with housing and pull-tab can provide an effective solution so as to test the emission ability of the network equipment and receive sensitivity. Especially in 40/100G network communication, SZOPT’s MPO/MTP loopback devices can achieve fiber network in pairs on a single element or interface and conduct effective tests and evaluation of the Internet through back signal positioning.

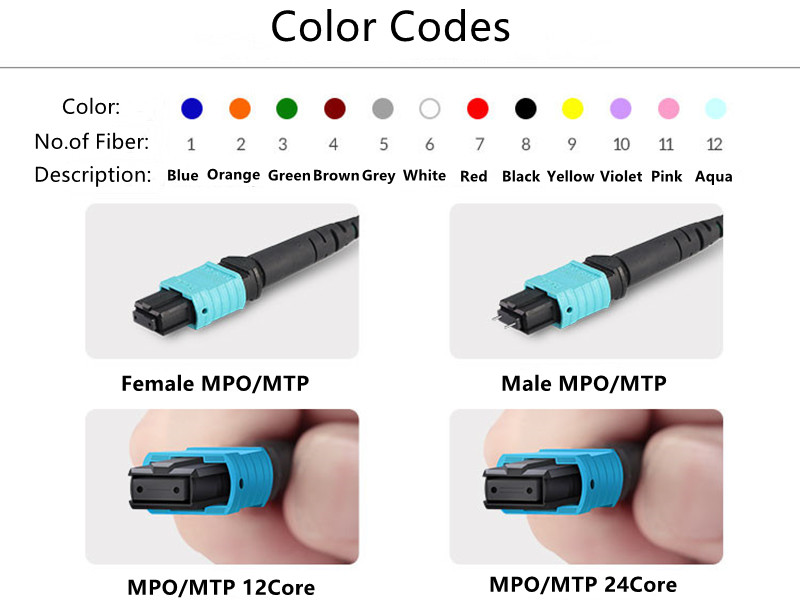

MPO MTP in Female Male

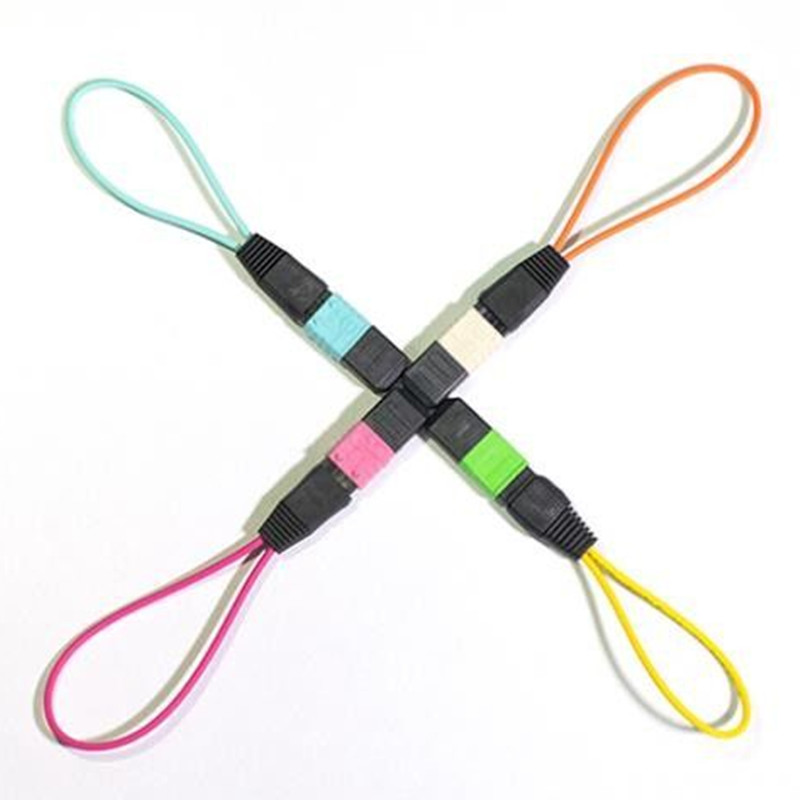

Loopback in SM MM OM3 OM4


Test of patch cables

MPO MTP Workshop

MPO MTP Appliance

Goods ready to ship


Application:

Telecommunication System

Testing Equipment

CATV System

LAN System


Feature:

Low Insertion Loss

High Return Loss

High Reliability and Stability

0.9mm,2.0mm,3.0mm or custom


Package:

Each piece in a small PE bag,then 10pcs or 20pcs in a big bag,finally put into carton box.


Specification:

Connector

Fiber Mode

Endface

Standard

Elite(Premium)

IL(max) (dB)

RL(min) (dB)

IL(max) (dB)

RL(min) (dB)

MPO/MTP

Singlemode

APC

≤0.75

≥60

≤0.35

≥60

Multimode

PC

≤0.60

≥20

≤0.35

≥20
