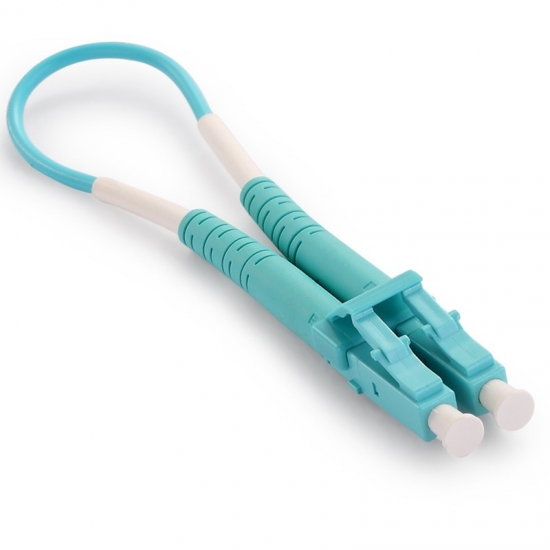

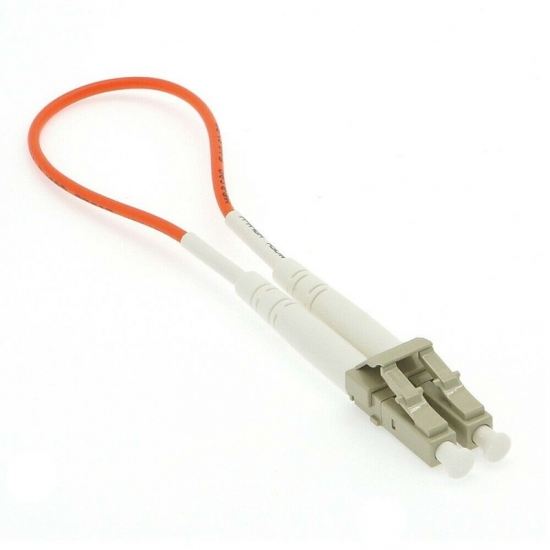

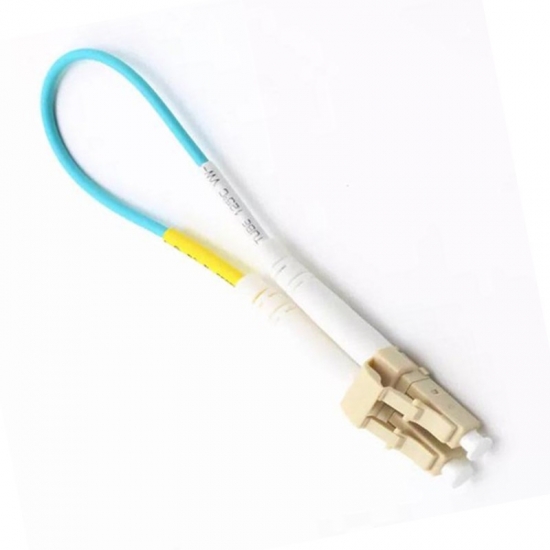

Fiber Optic Loopback Cable LC Singlemode Multimode

Fiber optic loopback plugs are designed for equipment testing, self-testing, engineering, network diagnostics and measurement applications.These devices are typically used for testing the transmission capability and receiver sensitivity of network equipment,and play an important role in fiber optic link troubleshooting.

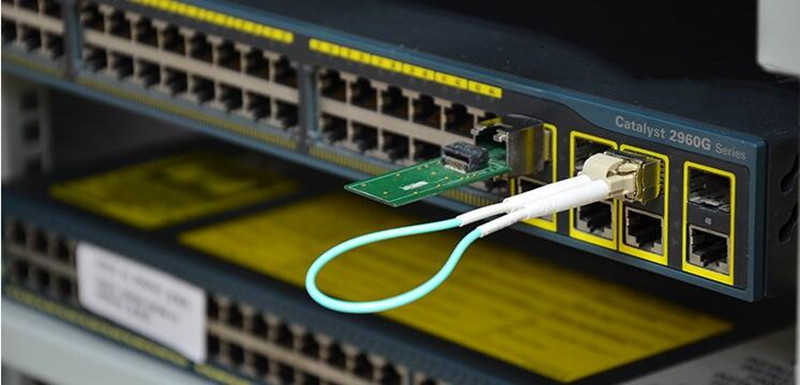

Fiber loopback cable is often utilized to check whether the transceiver module is working perfectly as designed. As we all know,transceiver module has two ports, a transmitter port and a receiver port. The former one is to send out laser signals and the latter is to receive signals.

Fiber optic loopback modules LC are designed to provide test engineers with an effective way of testing the transmission capability and receiver sensitivity of optical network equipment.

Fiber loopback is designed to provide a media of return patch for a fiber optic signal; typically it is used for fiber testing applications or network restorations. For the testing applications, the loopback signal is used for diagnosing a problem.

A loopback cable is also known as loopback plug or loopback adapter, which is a plug used to test physical ports to identify network problem. It provides system test engineers a simple but effective way of testing the transmission capability and receiver sensitivity of network equipment.

This is a kind of ABS box PLC Splitter available with 1X4/1X8/1X16/1X32/1X64/1X128,2X4/2X8/2X16/2X32/2X64/2X128,the terminators can be  sc/lc/fc/st in 3.0mm or 2.0mm cable,the cable length is usually 1-1.5m.Available wavelength is:1260-1650nm.

Indoor Hybrid Cable is for indoor installations that utilize a centralized power supply to remote power and devices, thus eliminates the need to provide local AC power to each location.The two copper wires provide power from a centralized power supply to end devices while fiber optic elements provide bi-directional data paths through the cable.

Fiber optic closures provide a protected area for the spliced sections to live, keeping them away from any hazards. Any of these that come in contact with the wires can lead to damage. Bugs may bite through the protective layers, while moisture can flood the cabling. Even things like vandalism and damage from car accidents can be troublesome. A rugged, hermetically sealed fiber optic splice closure can better protect cables and the sensitive data that runs through them from many of the dangers they face.

MPO MTP Trunk Cable Double Jacket can be available for 12Core 24Core 48Core or custom,such double jacket trunk cable is of much more rigid performance for preferable deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.MTP/MPO are used to interconnect cassettes, panels, or fan outs using a compact and rugged microcables structre. The micro cable optimizes cable way use and improve airflow.These MPO/MTP cable are build with the highest quality components , better insertion loss versions are offered accordingly,please contact SZOPT for details.

SZOPT’s SC/APC OptiTap connector cable assemblies provide a cost effective, convenient operation, environmental seal and mechanical protection solution. The design makes the connector has blind-mating function, provides quick installation solutions and has good performance, it can be compatible with all the similar products in market, such as Corning Opitap-SC and H-type connector, Cable can be 2×3.0mm, 2×5.0mm flat drop or 5.0mm and 7.0mm round cable, amored or non-amored. Please reach us for details.

A fiber optic HDMI cable is a cable using optical fiber as the transmission medium,the principle of the cable is to integrate the photoelectric conversion line at the hdmi interface and use the fiber optic as the transmission medium material; during the transmission process, the hdmi optical fiber transmitting end converts the hdmi signal into an optical signal and transmits it to the hdmi fiber optic through the optical fiber medium line receiving end, the receiving end then converts the optical signal into a lossless hdmi signal and outputs it to the display device.

Fiber Optical Patch Cord SMA-SMA has SMA connectors on both ends,with PVC,LSZH,OFNP jacket in yellow(SM);orange(OM1/OM2),aqua(OM3), magenta(OM4),lime green(OM5) or custom.Simplex or Duplex is available.
