Fiber Optic Loopback Module SC Singlemode Multimode

Fiber Optic Loopback Module SC Singlemode Multimode


Fiber optic loopback plugs are designed for equipment testing, self-testing, engineering, network diagnostics and measurement applications.These devices are typically used for testing the transmission capability and receiver sensitivity of network equipment,and play an important role in fiber optic link troubleshooting.


  • Payment:

    T/T,LC,WU,etc.
  • Product origin:

    CN

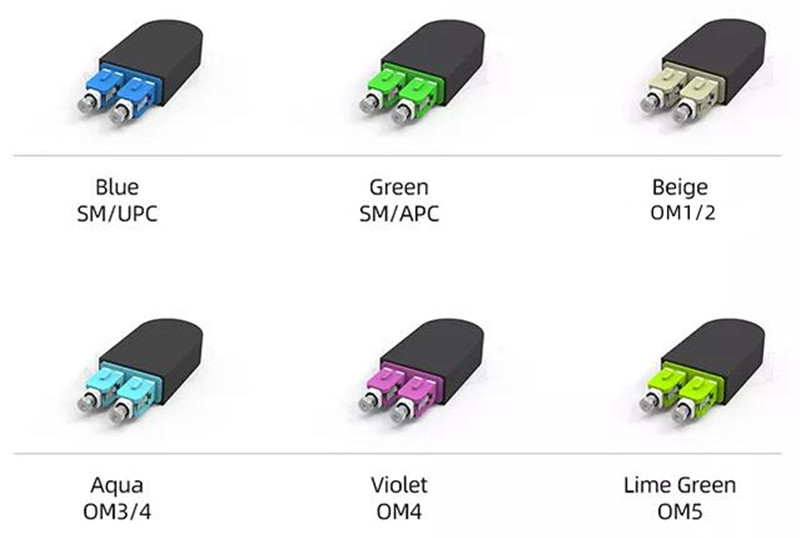

  • Color:

    Blue,Green or custom
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    3-15days
  • Product Details

Fiber Optic Loopback Module SC Singlemode Multimode



Fiber Optic loopback modules are designed for testing and engineering purposes,they provide system test engineers with a simple but effective way of testing the transmission capability and receiver sensitivity of fiber optic network equipment.The loopback modules may also be used for the burn-in stage of boards and other equipment,incorporate two fiber optic connectors,one connector is plugged into the output port, the other fiber optic connector is plugged into the input port of the equipment.Any enquiry,please contact SZOPT anytime.

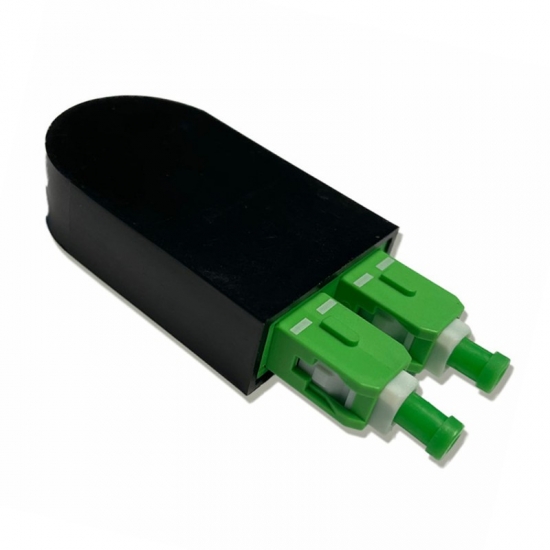

Fiber Optic Loopback Module

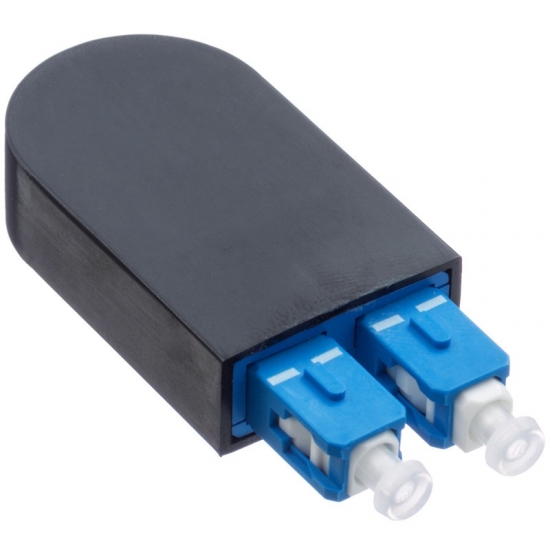

Fiber Optic Loopback Module

Test of Fiber Patch Cords

Workshop of Fiber Cords

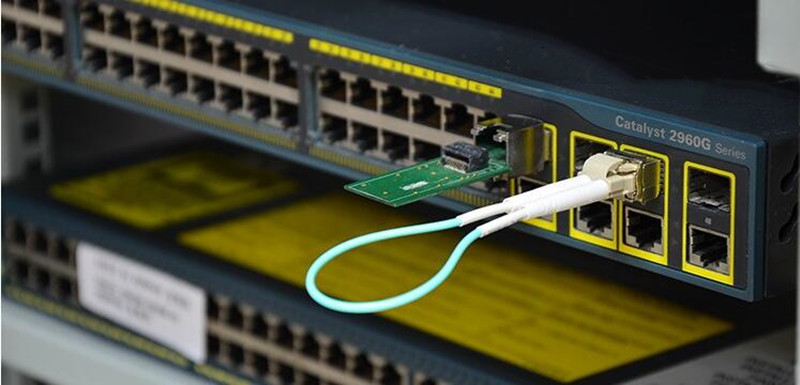

Loopback appliance


Application:

For equipment self-testing;
Molded connector to secure connection;
Fully tested cable to ensure high quality and durability;


Feature:

Low Insertion Loss

High Return Loss

High Reliability and Stability

0.9mm,2.0mm,3.0mm or custom diameter cable available


Package:

Each piece in a small PE bag,then some pcs in a bigger bag,finally put into a carton box.


Specification:

Connector Type

Performance Data

Connector

Polishing Mode

IL(dB)

RL(dB)

SC/LC/FC/ST/MU/E2000

SM

UPC

≤0.3

≥50

APC

≤0.3

≥60

MM

PC

≤0.3

≥35

MTRJ

SM

PC

  ≤0.5

≥50

MM

PC

≤0.5

≥35
