SC/LC/FC/ST CWDM DWDM WDM Fiber Optic Multiplexer

SZOPT offers a full range of CWDM&DWDM to meet the demand of applications such as: Gigabit & 10G Ethernet,SDH/SONET,ATM,ESCON,Fibre Channel,FTTx and CATV,etc.

  • Payment:

    T/T,L/C,WU,etc.
  • Product origin:

    CN
  • Color:

    Yellow or custom.
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    15 days
  • Product Details

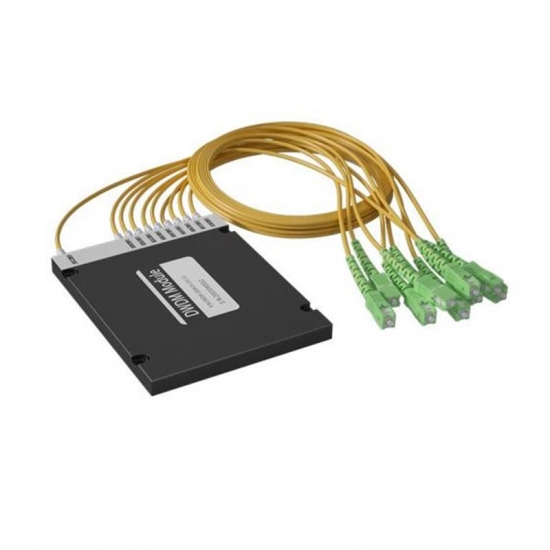

SC/LC/FC/ST CWDM DWDM WDM Fiber Optic Multiplexer

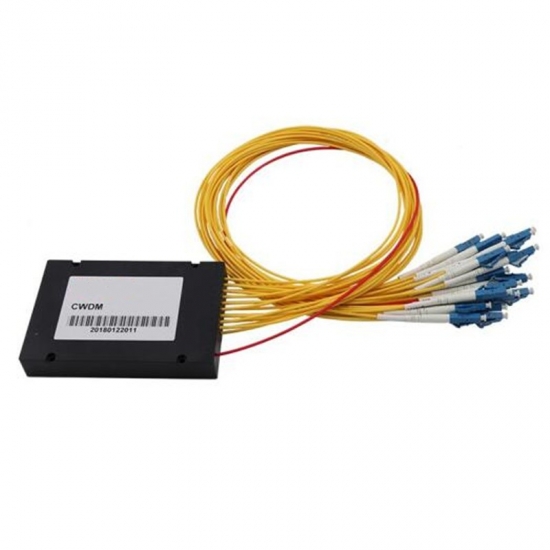

Our CWDM Mux Demux series provide up to 16-channel or even 18-channel Multiplexing on a single fiber,keep the the low insertion,otherwise,DWDM achieves uplink and downlink according to the membrane filter technique and proprietary non-flux metal bonding micro-optics packaging design, it provides ITU channel center wavelength with low insertion loss, high channel isolation, low power consumption and wide passband characteristics, no glue loop, excellent thermal stability and reliability.

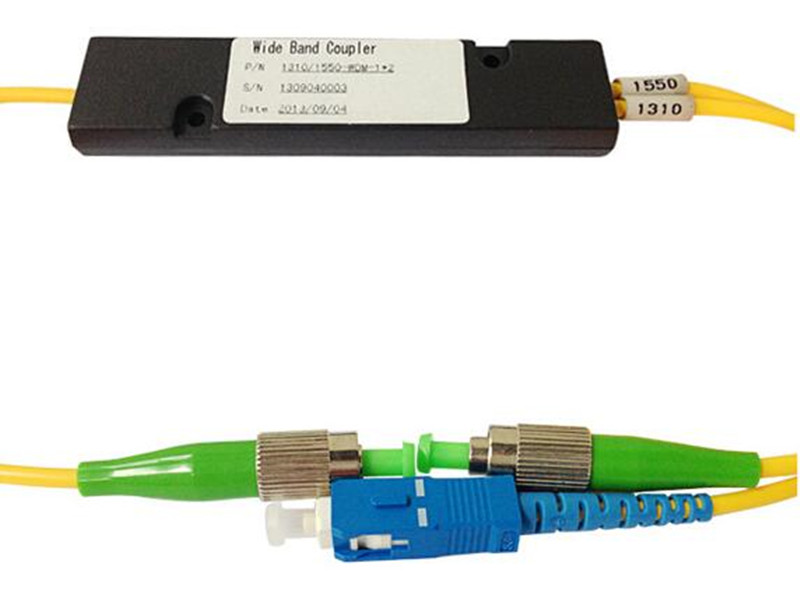

top quality connector of the coupler


WDM patch cords


CWDM DWDM workshop


CWDM DWDM Appliance

Goods ready to ship


Application:

Line Monitoring

WDM Network

Telecommunication

Cellular Application

Fiber Optical amplifier

Acess Network



Feature:

Low Insertion loss

Wide Wavelength Range

Low Crosstalk

High Stability, High Reliability

Epoxy-free on Optical Path

Latching and Non-latching



Package:

Each one is put in a glister box,then put into a carton box.


Specification:

Parameter

4 Channel

8 Channel

16 Channel

Mux

Demux

Mux

Demux

Mux

Demux

Channel Wavelength(nm)

1270~1610

Center wavelength Accuracy(nm)

±0.5

Channel Spacing(nm)

20

Channel Pass band(@-0.5dB bandwidth (nm)

>14

Insertion Loss(dB)

≤1.4

≤2.6

≤5.0

Channel Uniformity (dB)

≤0.5

≤0.5

≤0.5

Channel  Ripple (dB)

0.3

Isolation (dB)

Adjacent

N/A

>30

N/A

>30

N/A

>30

Non-adjacent

N/A

>40

N/A

>40

N/A

>40

Insertion Loss Temperature Sensitivity (dB/℃)

<0.005

Wavelength Temperature Shifting (nm/℃)

<0.002

Polarization Dependent Loss (dB)

<0.1

Polarization Mode Dispersion (PS)

<0.1

Directivity (dB)

>50

Return Loss(dB)

>45

Maximum Power Handling(mW)

500

Operating Temperature(℃)

-5~+75

Storage Temperature (℃)

-40~85

Package dimension(mm)

1.     L100 x W80 x H10 ( 2 CH~8CH Module)

2.     L120xW800xH18  (9 CH~18CH Module)
