It's also called butterfly drop cable or bow-type ftth drop
cable,the outer jacket is black or white in PVC or LSZH for indoor use,the dimension of the cable
is:3.0x2.0mm(1-2core) or 3.5x2.0mm(4core),the option for strength member is:Steel,FRP or KFRP,the option for the fiber is:G652D,G657a1,G657a2 or custom.

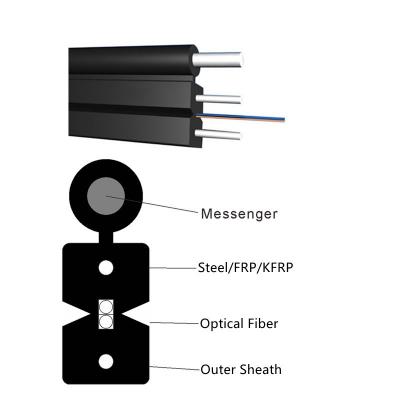

The Ftth self-supporting drop cable is usually used for outdoor with the outer jacket of black PVC/LSZH,the dimension of the cable
is:5.0x2.0mm,the option for strength member is:Steel Wire,FRP or KFRP,the option for the fiber is:G652D,G657a1,G657a2 or custom.

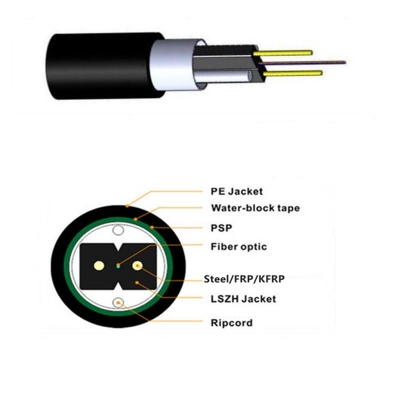

Duct type Ftth drop cable is also called duct ftth drop
cable,the outer jacket is black PE,the dimension of the cable
is:7.0mm,the option for strength member is:Steel/FRP/KFRP,the option for the fiber is:G652D,G657a1,G657a2 or custom.

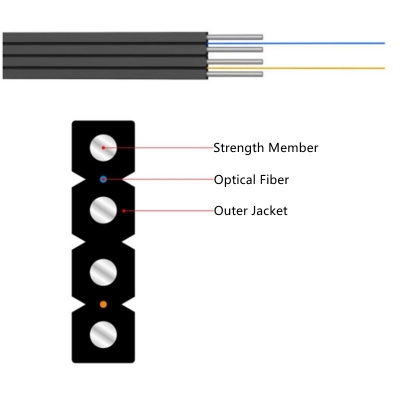

Double-fly Ftth drop cable is the strengthen version of the traditional butterfly drop cable or bow-type ftth drop
cable,the outer jacket is black PVC/LSZH for indoor,the dimension of the cable
is:2.0x6.0mm(2*1-4core) ,the option for the strength member is also:Steel Wire/FRP/KFRP,the option for the fiber is:G652D,G657a1,G657a2 or custom.

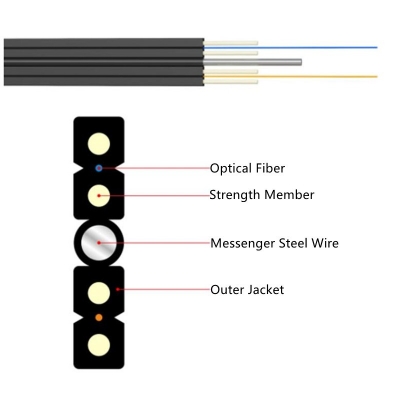

Ftth outdoor self-supporting double-fly drop cable is the strengthen version different from the traditional self-supporting butterfly drop cable,the outer jacket is black PVC/LSZH for outdoor use,the dimension of the cable
is:2.0x8.0mm(2*1-4core) ,the option for strength member is:Steel Wire,FRP or KFRP,the fiber can be specific as:G652D/G657a1/G657a2 or custom.
Armored fiber optic cable consists of a
cable surrounded by a stainless steel tube to protect it from moisture and abrasion. Such
armored cable can be much stronger than regular indoor cable due to its high
tensile force.SZOPT offers both singlemode and multimode armored cable with
outer sheath of yellow,blue,beige or custom.

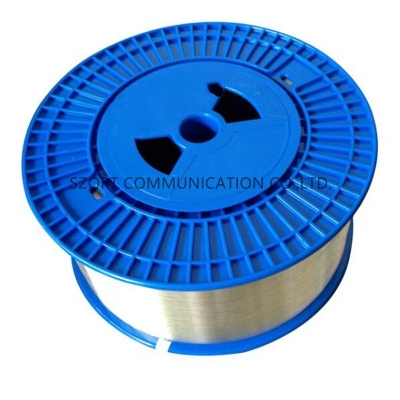

250um loose-tube and 900um tight-buffered fiber cables start with the same 250um bare fibers that feature the same size fiber
core (i.e., 62.5/50um for multimode and 9um for singlemode), 125um cladding and soft
250um coating.
Simplex fiber optic cable consists of a single
fiber,tight-buffered (coated with a 900 micron buffer over the primary buffer
coating) with Kevlar (aramid yarn) strength members
and jacketed for indoor use.The outer jacket can be with Riser, Plenum rated
constructions and LSZH jacket.Duplex cable has two
types,one is with two individual fibers in “8”digit,the other has two fibers in
a round cable.

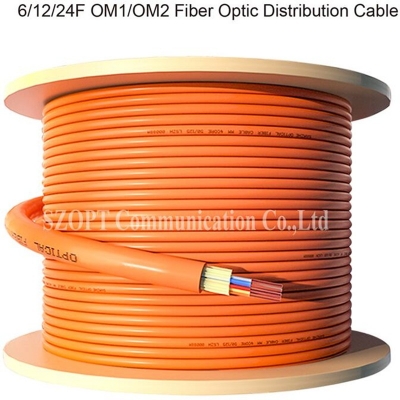

Fiber optic distribution cable is a type of
high density optical fiber cable that is primarily used in LANs and data
centers, or any indoor environment,available in all fiber types, the durable
jacket offers excellent strength and protection during installations and
restorations. The 900μm color coded buffers allow for easy identification and
termination.The jacket is available for OFNR,OFNP,LSZH,etc.
