High Density 19" MPO/MTP Patch Panel SM OM3 OM4 OM5 48/96/144 Core

High Density 19" MPO/MTP Patch Panel SM OM3 OM4 OM5 48/96/144 Core

MPO/MTP Fiber Optic Patch Panel is used for trunk cable connection and distribution cable management in distribution area of MDA, IDA or HDA data centers. It could be installed in 19 inch racks and cabinets. It could accommodate MPO/MTP cassette modules or MPO/MTP adapter panels.

  • Payment:

    T/T,L/C,WU,etc.
  • Product origin:

    CN
  • Color:

    Black or White
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    10-30 days
  • Product Details

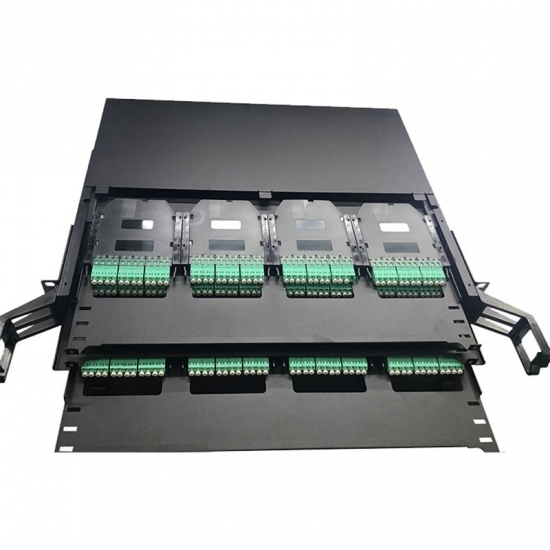

High Density 19" MPO/MTP Patch Panel SM OM3 OM4 OM5 up 48/96/144 Core

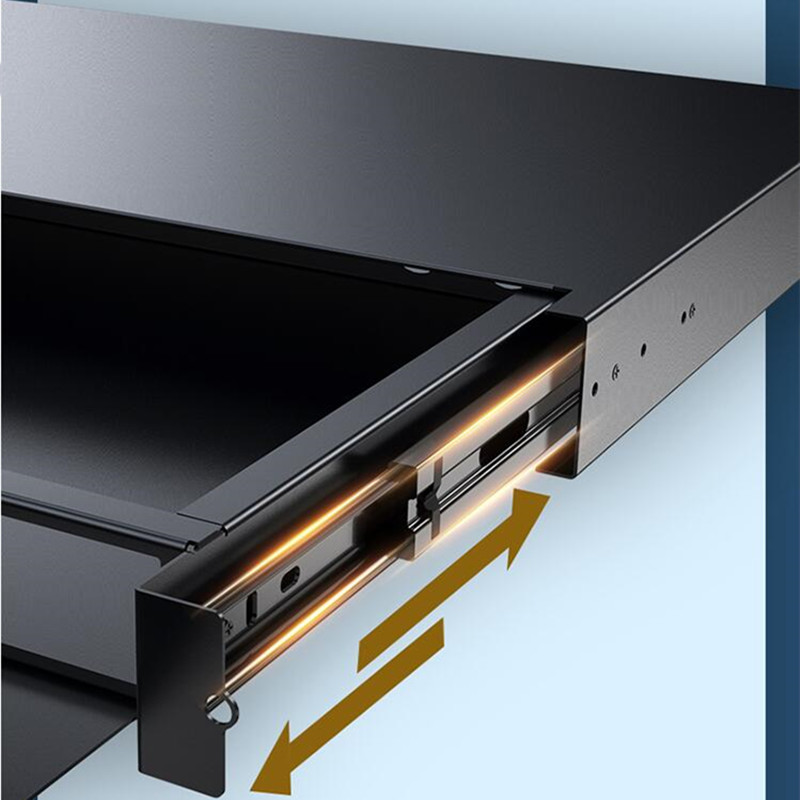

SZOPT’s MPO Patch Panels are the cost-effective high density fiber solution.Our MPO/MTP Patch Panels offer up to 96 front LC connections as well as being the only fiber panel capable of providing 48 SC/FC/ST connections in a single rack unit. The MPO/MTP patch panels feature a removable top case, sliding and locking front tray, adjustable mounting brackets, and a hinged front panel. All our MPO patch panels come with a complete set of mounting hardware, and pre-terminated fiber cassettes,fiber adapter panels and necessary accessories.Please reach us for details.

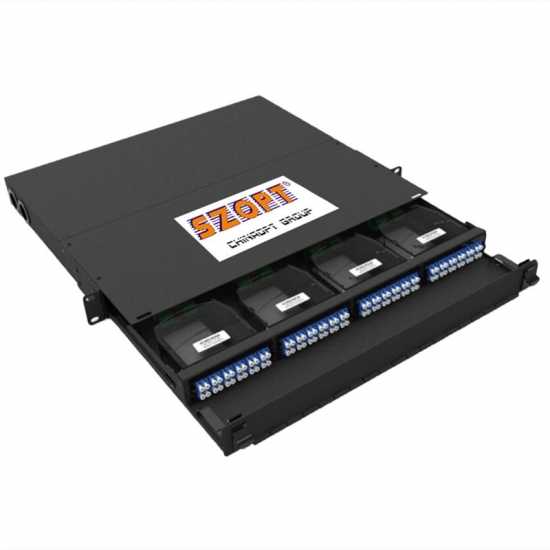

SZOPT’s MPO Patch Panels

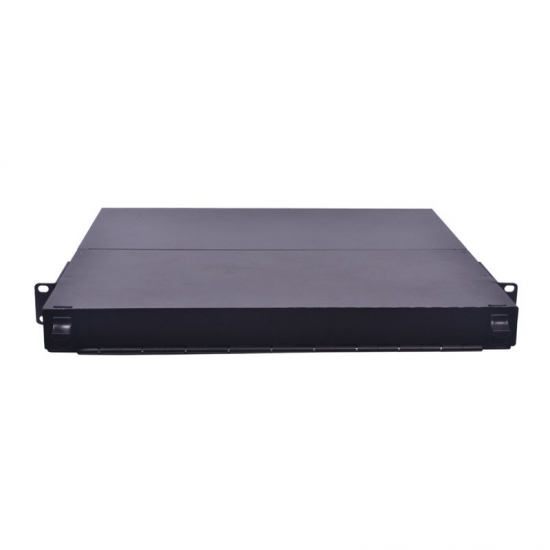

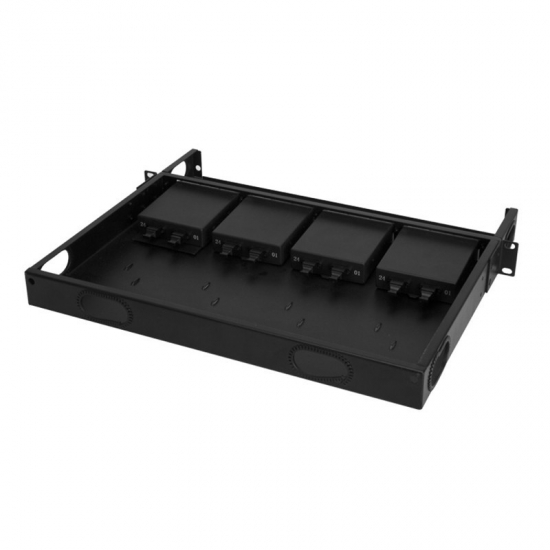

SZOPT’s MPO Patch Panels

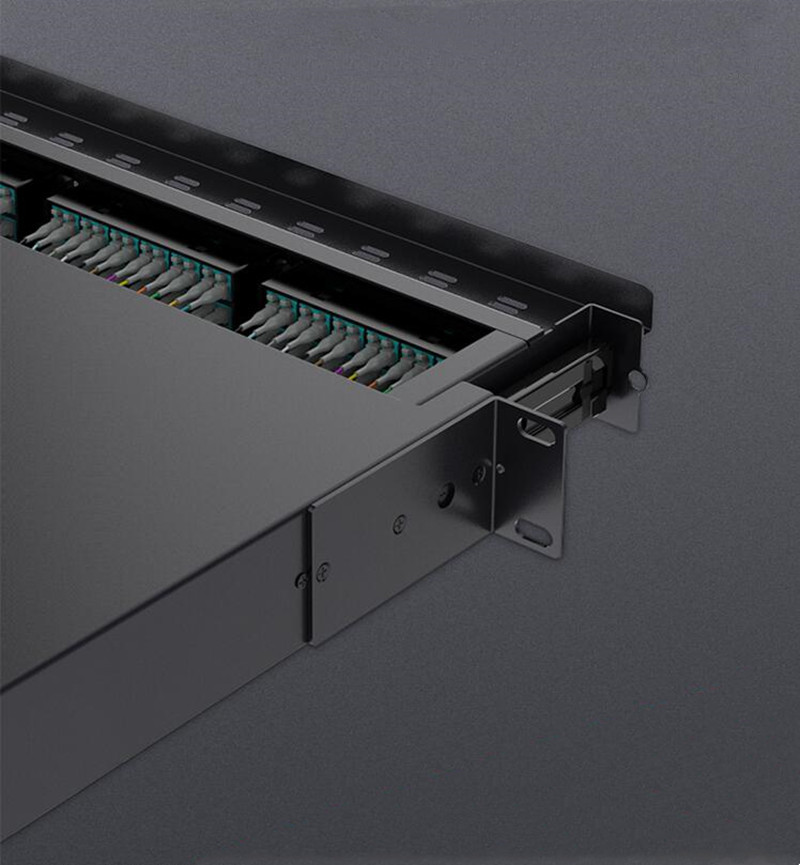

Convenient Hanging Ear Design

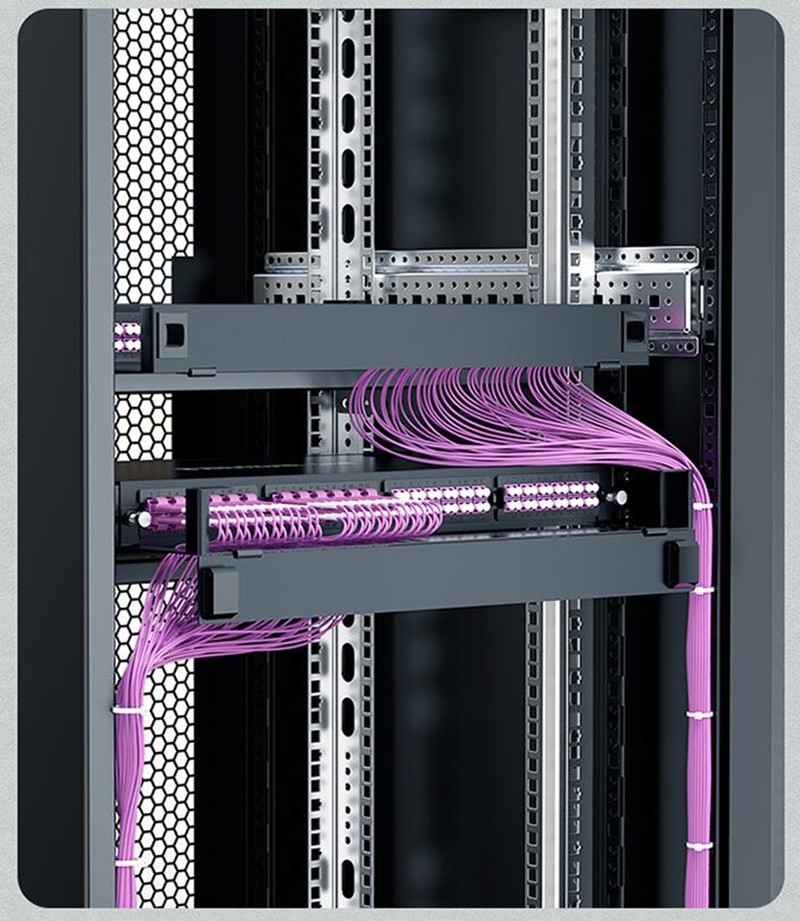

MPO Patch Panel Appliance

Goods Ready to ship


Features:

Standard 19" rack mounting;

Smooth electrostatic powder spraying cold rolled sheet/aluminum alloy;

Suitable for SC/FC/LC/ST/MPO/MTP etc.different interfaces;

Capacity:up to 144 fibers;


Applications:

Telecommunications Equipments

LAN/WAN

CATV

FTTx


Specification:

Operating  temperature: -25 ~ +40

Storage  temperature: -25 ~ +40

Relative humidity: <85%

Air  pressure: 70Kpa  ~  106Kpa


Package:

Each set in an inner carton box,then put in an outer carton box,well protection.


Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
