High Speed DAC Patch Cable 1G SFP 10G SFP+ Passive Direct Attach Copper Cable

High Speed DAC Patch Cable 1G SFP 10G SFP+ Passive Direct Attach Copper Cable

SZOPT’s passive copper cable solutions provide power-efficient replacement for active power connectivity such as fiber optic cables. The SFP SFP+ QSFP+ QSFP28 cables provide 1Gb 40Gb 100Gb systems the ability to connect to switches or adapter cards. Optimizing systems to operate with passive copper cables significantly reduce power consumption and enlarge the connectivity opportunities of the system.

  • Payment:

    T/T,L/C,WU,etc.
  • Product origin:

    CN
  • Color:

    Black
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    2-10 days
  • Product Details

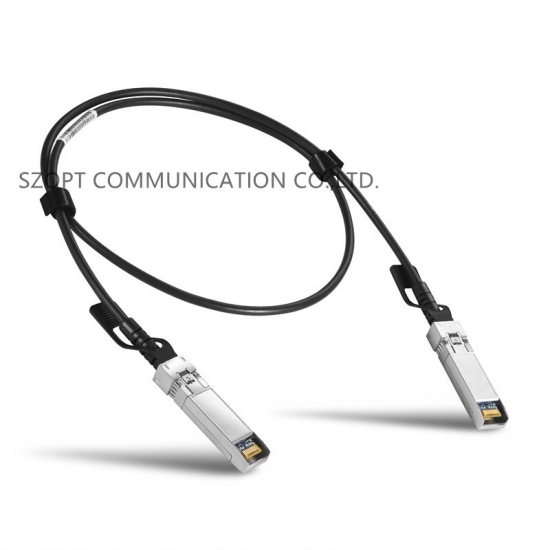

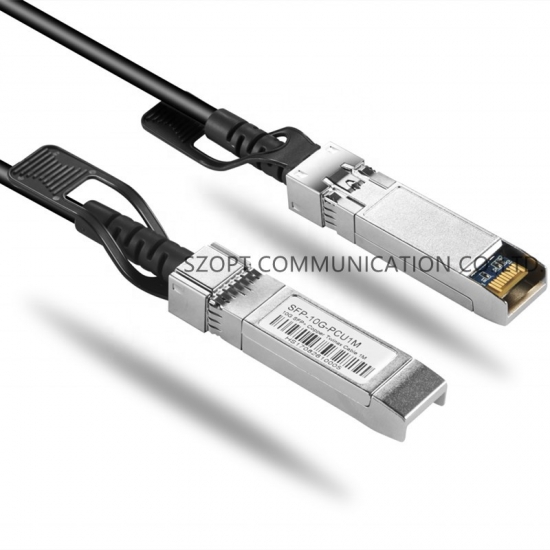

High Speed DAC Patch Cable 1G SFP 10G SFP+ Passive Direct Attach Copper Cable


SZOPT’s DAC cables are compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel,  D-link,  Enterasys,  Netgear, Juniper, Nortel, IBM, Gigamon, Linksys, Allied, Zyxel, Dell, Redback,  H3C, ZTE, Ruijie,  Ciena , Alcatel-lucent, Allied Telesis, Chelsio, Palo Alto Networks, lxia, MikroTik, MRV etc.We keep strict quality control to make sure all items from our factory are satisfied by our customers.Please reach us for details.


raw materials of SFP

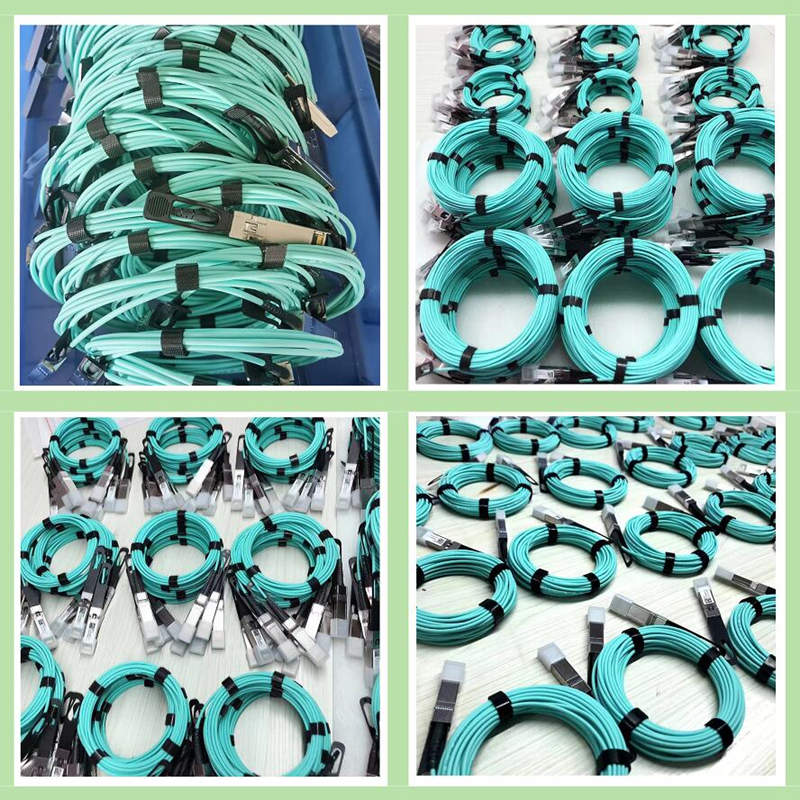

CABLES READY PRODUCTION

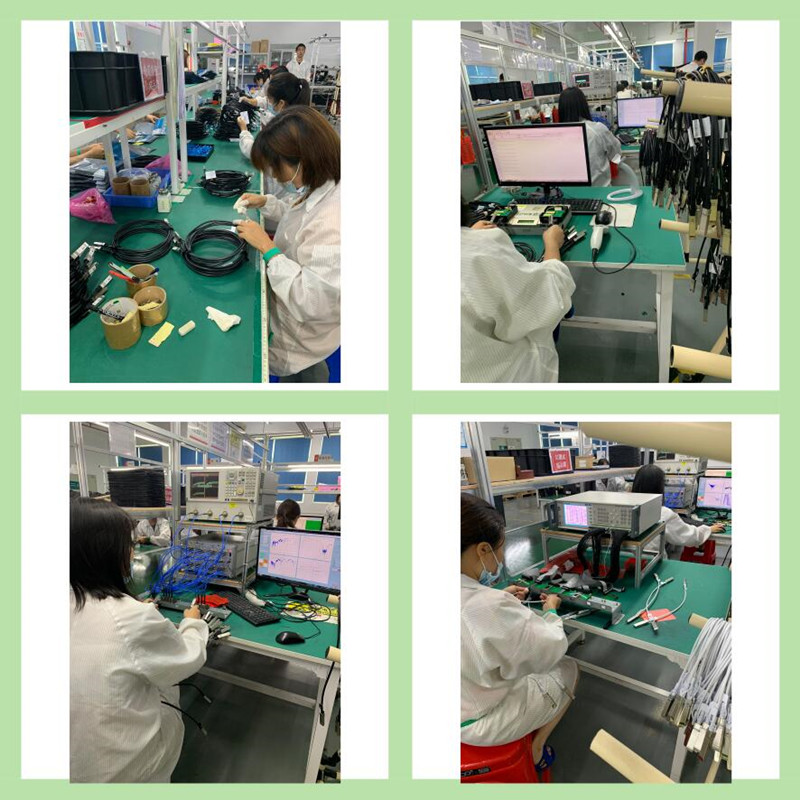

WORKSHOPS

GOODS READY TO SHIP

Applications:


1G/10G/40G/100G Ethernet
High Performance Computing Clusters
High End Servers
Metro Network Switch/Cross Connect


Features:

Support for multi-gigabit data rates up to 10.5Gbps
I/O Connector designed for high speed differential signal applications
Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
Compatible with industry standard SFP SFP+ cages +Switches

Compliant with RoHS


Package:

Each item in a PE bag,finally in a carton box.


Maximum ratings:

Parameter

Symbol

Min.

Typ.

Max.

Unit

Storage Temperature

Ts

-40



85

ºC

Supply Voltage

Vcc1,VccTx,VccRx

-0.5



+4.0

V

Relative Humidity

RH

5



95

%
