SZOPT’s indoor&outdoor fiber optical cables
deliver outstanding audio, video, and data signal performance for educational,
corporate and government campus applications. These cables streamline
installation by reducing and, in some cases, eliminating contractor cable
'prep' work when going from the outdoor to the indoor environment. By
eliminating the need for outside to inside cross-connection, the entire system
reliability is improved and with lower overall installation costs.
-
Ftth Indoor Flat Drop Cable Steel FRP KFRP Strength Member
It's also called butterfly drop cable or bow-type ftth drop
cable,the outer jacket is black or white in PVC or LSZH for indoor use,the dimension of the cable
is:3.0x2.0mm(1-2core) or 3.5x2.0mm(4core),the option for strength member is:Steel,FRP or KFRP,the option for the fiber is:G652D,G657a1,G657a2 or custom.
-
FTTH Outdoor Self-supporting Drop Cable
The Ftth self-supporting drop cable is usually used for outdoor with the outer jacket of black PVC/LSZH,the dimension of the cable
is:5.0x2.0mm,the option for strength member is:Steel Wire,FRP or KFRP,the option for the fiber is:G652D,G657a1,G657a2 or custom.
-
Fiber Optic Ftth Duct Type Drop Cable
Duct type Ftth drop cable is also called duct ftth drop
cable,the outer jacket is black PE,the dimension of the cable
is:7.0mm,the option for strength member is:Steel/FRP/KFRP,the option for the fiber is:G652D,G657a1,G657a2 or custom.
-
Ftth Indoor Double-Fly Flat Drop Cable
Double-fly Ftth drop cable is the strengthen version of the traditional butterfly drop cable or bow-type ftth drop
cable,the outer jacket is black PVC/LSZH for indoor,the dimension of the cable
is:2.0x6.0mm(2*1-4core) ,the option for the strength member is also:Steel Wire/FRP/KFRP,the option for the fiber is:G652D,G657a1,G657a2 or custom.
-
Ftth Outdoor Double-Fly Self-supporting Drop Cable
Ftth outdoor self-supporting double-fly drop cable is the strengthen version different from the traditional self-supporting butterfly drop cable,the outer jacket is black PVC/LSZH for outdoor use,the dimension of the cable
is:2.0x8.0mm(2*1-4core) ,the option for strength member is:Steel Wire,FRP or KFRP,the fiber can be specific as:G652D/G657a1/G657a2 or custom.
-
Indoor Optical Armored Cable Singlemode Multimode
Armored fiber optic cable consists of a
cable surrounded by a stainless steel tube to protect it from moisture and abrasion. Such
armored cable can be much stronger than regular indoor cable due to its high
tensile force.SZOPT offers both singlemode and multimode armored cable with
outer sheath of yellow,blue,beige or custom.
-
-
Indoor Optical Cable Simplex Duplex Singlemode Multimode
Simplex fiber optic cable consists of a single
fiber,tight-buffered (coated with a 900 micron buffer over the primary buffer
coating) with Kevlar (aramid yarn) strength members
and jacketed for indoor use.The outer jacket can be with Riser, Plenum rated
constructions and LSZH jacket.Duplex cable has two
types,one is with two individual fibers in “8”digit,the other has two fibers in
a round cable.
-
Indoor Optical Cable 6/12/24/48C Distribution Singlemode Multimode
Fiber optic distribution cable is a type of
high density optical fiber cable that is primarily used in LANs and data
centers, or any indoor environment,available in all fiber types, the durable
jacket offers excellent strength and protection during installations and
restorations. The 900μm color coded buffers allow for easy identification and
termination.The jacket is available for OFNR,OFNP,LSZH,etc.
-

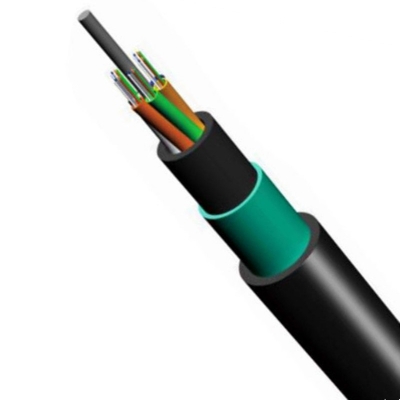

Central Loose Tube Outdoor Cable GYXTW up to 144C
SZOPT‘s GYXTW is a type of outdoor cable with fibers positioned in a loose tube made of a high modulus plastic,the tubes are filled with a water-resistant filling compound aslso wrapped with a layer of corrugated steel tape.Between the corrugated steel tape and the loose tube water-blocking materials is applied to keep the cable compact and watertight.
-

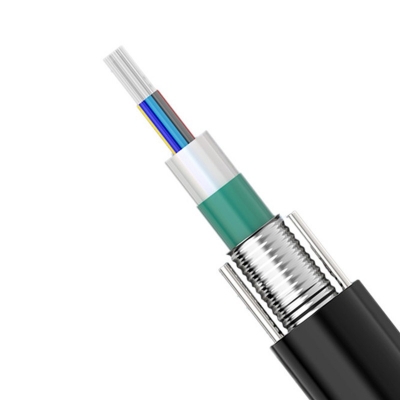

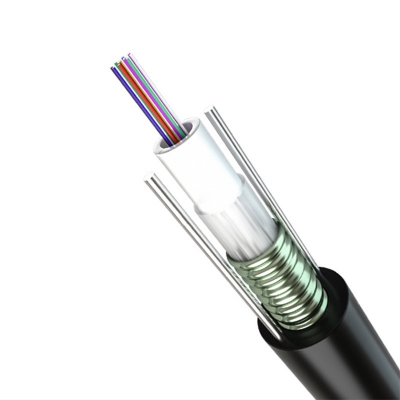

Central Loose Tube Double Armored Outdoor Cable GYXTW53
The 250μm fibers are positioned in a high
modulus plastic loose tube.The tubes are filled with a water-resistant filling
compound,wrapped with a layer of PSP longitudinally. Between the PSP and the
loose tube water-blocking material is applied to keep the cable compact and
watertight. Two parallel steel wires are placed at the two sides of the steel
tape. The outer sheath can be PE or custom.
-
Loose Tube Outdoor Cable GYTS/GYTA up to 144C
GYTS/GYTA cable is a type of the outdoor cable
used for duct and direct buried applications with corrugated steel tape or aluminum tape. SZOPT
supplies both single mode and multimode GYTS cables.PBT loose tube has
2-12 fibers, The central Strength member is: steel wire. It has a Filling
Compound; Longitudinal corrugated steel tape laminated with polyethylene on
both sides. Consequently.
-

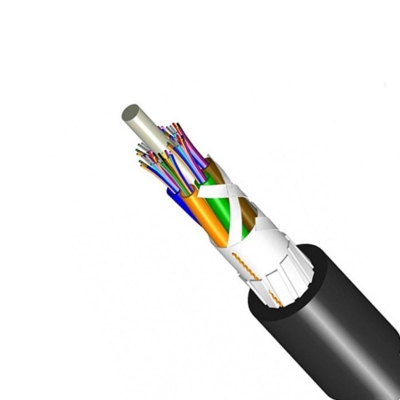

Standard Double Armored Sheath Outdoor Cable GYTY53/GYTS53
Our GYTY53/GYTS53 cable, available for singlemode
& multimode,the fibers are positioned in the loose tubes, the tubes are
filled with water blocking filling compound.Tubes and fillers are stranded
around the strength member into a circular cable core. Then the cable is
completed with a PE sheath. Which is filled with the filling compound to
protect it. After PSP is applied over the inner sheath, the cable is completed
with a PE outer sheath.
-

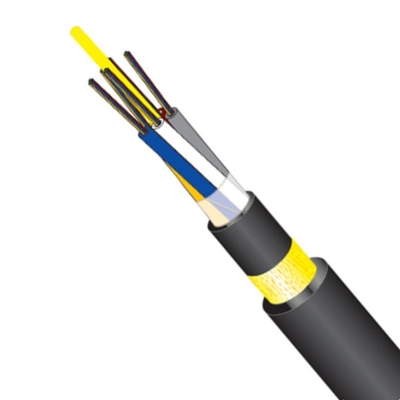

Non-metal Central Loose Tube All-dielectric ADSS cable
ADSS is the short form of All-dielectric Self-supporting,ADSS cable is a
type of fiber optic cable that is strong enough to support itself between
structures without containing conductive metal elements. The fibers can be
arranged in ADSS cables with a maximum of 144 fibers. ADSS fiber optic cable is
designed for outside plant aerial and duct applications in local and campus
network loop architectures from pole-to-building to town-to-town installations.
The cabling system that includes cables, suspension, dead-end, and termination
enclosures offers a comprehensive transmission circuit infrastructure with
high-reliability performance.
-
Air-blown Optical Cable up to 144C
Air-blown optical cable is a kind of fiber optic
cable that uses air delivery during installation.It is to use high-pressure to suspend the optical
cable in the microtube. While the air blown fiber optic cable itself is being
propelled by the driver, the high-speed flowing gas carries the optical cable
and advances together. It is very convenient.
