Bare Fiber/Tight Buffer Optical Cable Singlemode Multimode

Bare Fiber/Tight Buffer Optical Cable Singlemode Multimode

SZOPT provides all kinds of bare fiber optical cables and tight buffer optical cable,the fiber can be SM(G652D/G657/G655) and MM(OM1/OM2/OM3/OM4/OM5),the outer sheath is PVC/LSZH or custom.

  • Payment:

    T/T,L/C,WU,etc.
  • Product origin:

    CN
  • Color:

    white,yellow,aqua or singlemode
  • Shipping port:

    Shenzhen/HK
  • Lead Time:

    3-10 days
  • Product Details

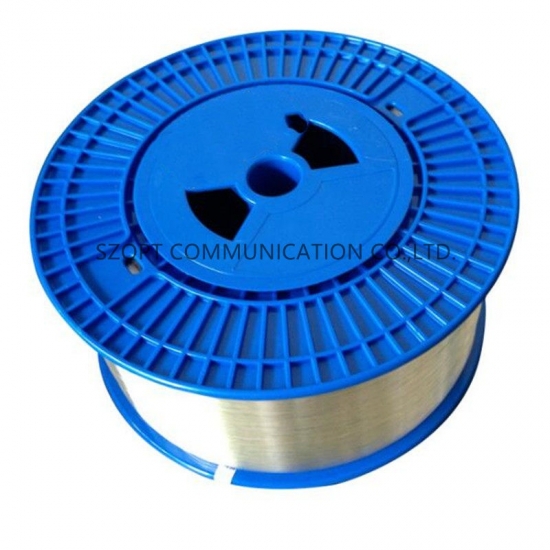

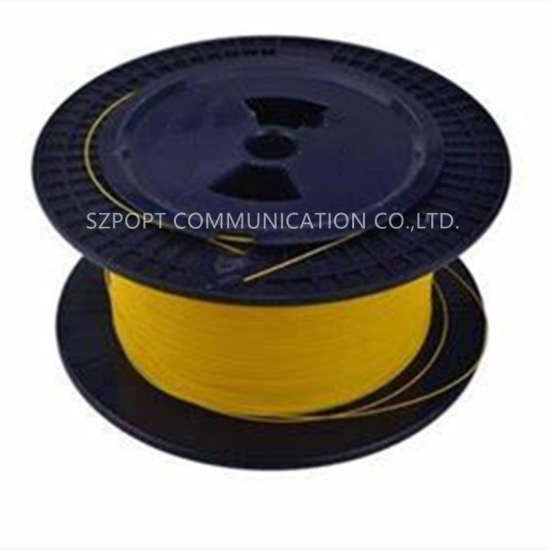

Bare Fiber/Tight Buffer Optical Cable Singlemode Multimode


Loose-tube 250um and tight-buffered 900um fiber cables actually start with the same 250um bare fibers that feature the same size fiber core (i.e., 62.5um/50um for multimode and 9um for singlemode), 125um cladding and soft 250um coating. The difference between these two cables all lies in the cable construction.

Tight-buffered 900um fiber includes an additional 900um layer of hard plastic over the 250um fibers for protection. Within the cable, several of these color-coded 900um tight buffered fibers are situated around a central strength member and then covered with Kevlar or aramid yarn for protection.

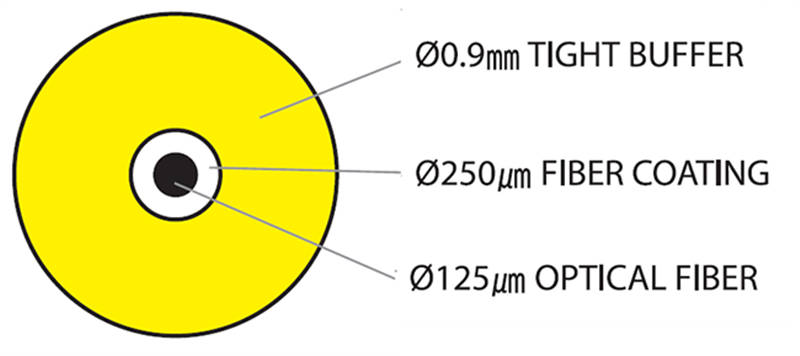

structure of tight buffer cable

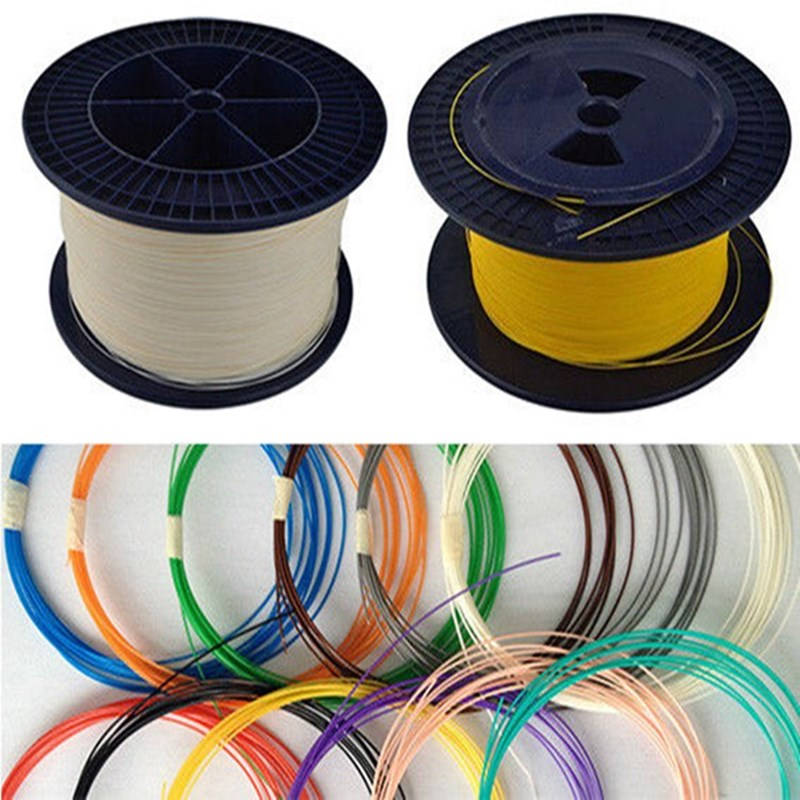

different colors for tight buffer cables

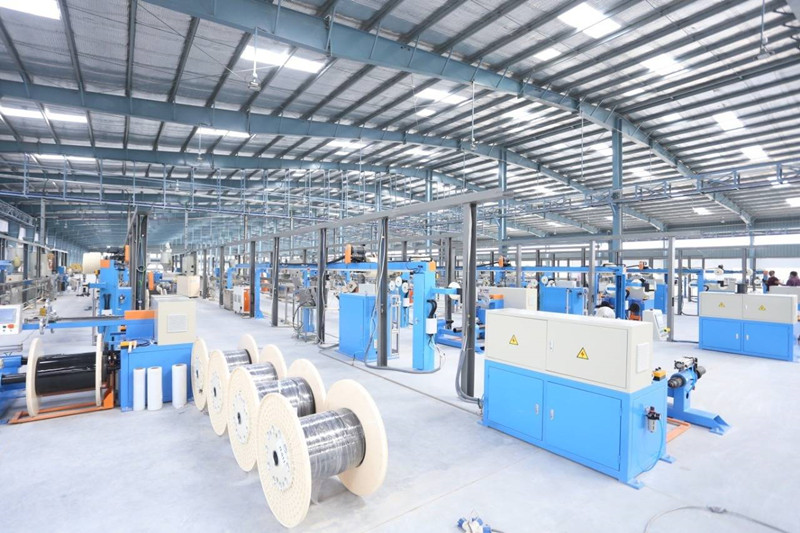

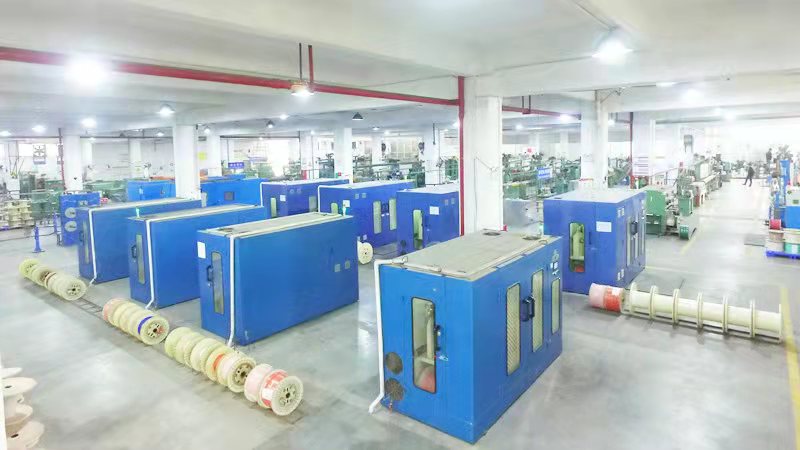

workshop of the optical cables



Ready to shop the optical cables

Application:

Indoor FTTH;

For patch cords and pigtails;

For communication equipment.



Feature:

Good mechanical and environmental characteristics;

Flame retardant characteristics;

Cable jacket options:PVC,LSZH

Strength Member options:Steel,FRP,KFRP.



Package:

1km/2km/3km per roll or custom,then put into a carton box.


Mechanical Characteristics:

Tensile Strength

Long Term

60N

Short Term

100N

Crush Resistance

Long Term

100N/100mm

Short Term

500N/100mm

Bending Radius

Dynamic

20D

Static

10D

Optical Characteristics:




G652D

G657A1

G657A2

G657B3

G.655

62.5/125

50/125


Attenuation
(+20℃)


@850nm






≤3.5dB/km

@1300nm






≤1.5dB/km

@1310nm

≤0.45dB/km

≤0.40dB/km

≤0.45dB/km

≤0.50dB/km



@1550nm

≤0.30dB/km

≤0.50dB/km




Bandwidth
(Class A)


@850






≥200MHZ·km

≥500MHZ·km

@1300






≥500MHZ·km

≥500MHZ·km

Numerical Aperture







0.275±0.015NA

0.200±0.015NA

Cut-off Wavelength


≤1260nm


≤1480nm
