Standard Double Armored Sheath Outdoor Cable GYTY53/GYTS53

Our GYTY53/GYTS53 cable, available for singlemode & multimode,the fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. Then the cable is completed with a PE sheath. Which is filled with the filling compound to protect it. After PSP is applied over the inner sheath, the cable is completed with a PE outer sheath.

  • Payment:

    T/T,L/C,WU,etc.
  • Product origin:

    CN
  • Color:

    Black or Custom.
  • Shipping port:

    Shenzhen/HK
  • Lead Time:

    3-10 days
  • Product Details

Standard Double Armored Sheath Outdoor Cable GYTY53/GYTS53


The fibers of such outdoor armoured cable GYTY53/GYTS53 are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress,. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

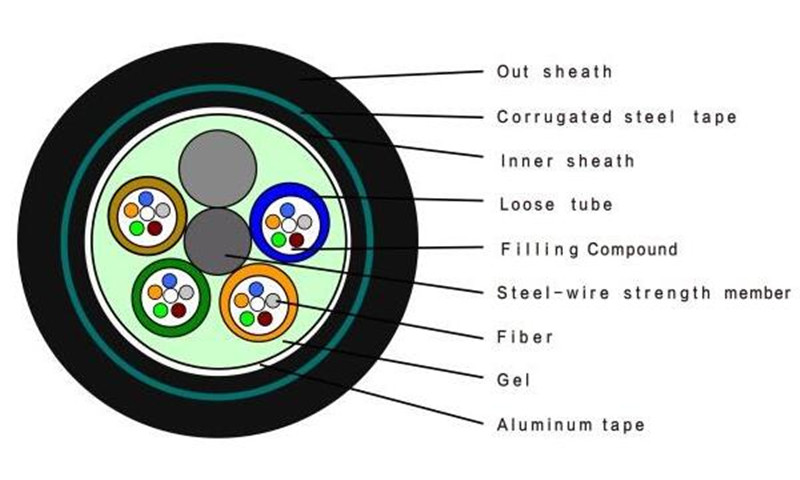

Section view of GYTY53 GYTS53 cable

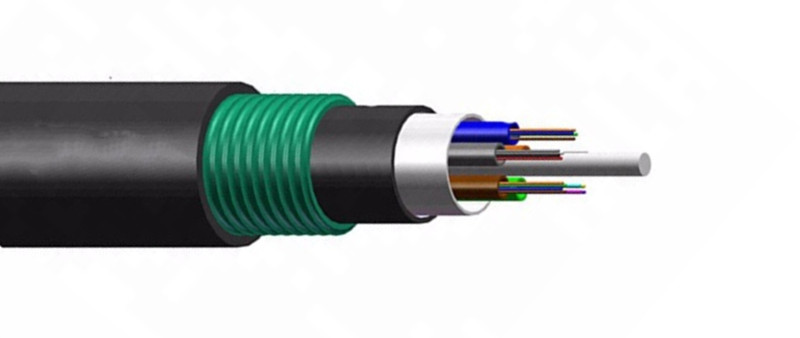

Real picture of GYTY53 GYTS53 cable



Different fiber counts of gyts gyta cable

package of gyts gyta cables

workshop of gyta gyts cables

wor

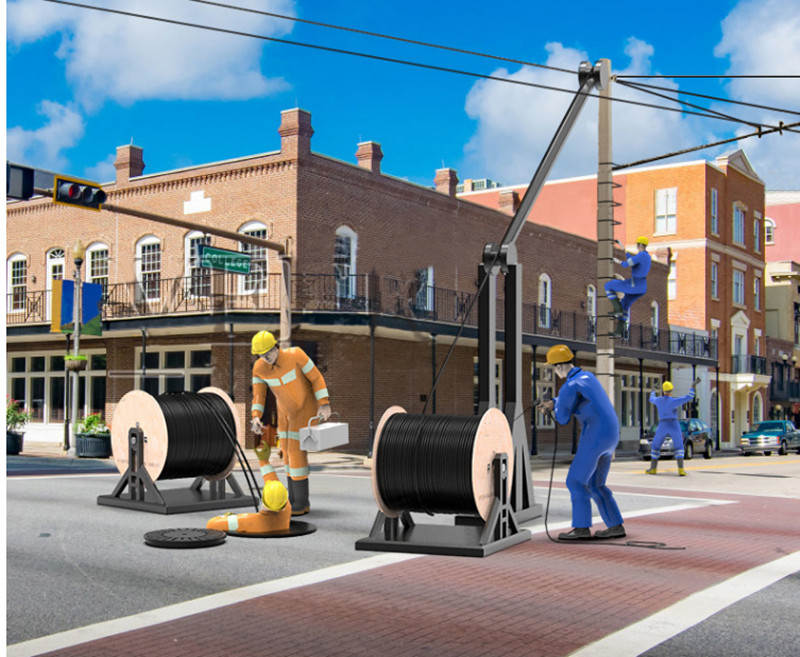

Deployment of gyta gyts cables


appliance of gyts gyta cable



ready to ship for gyts gyta

Application:

Indoor FTTH;

For patch cords and pigtails;

For communication equipment.



Feature:

Good mechanical and environmental characteristics;

Flame retardant characteristics;

Cable jacket options:PVC,LSZH

Strength Member options:Steel,FRP,KFRP.



Package:

1km/2km/3km per roll or custom,then put into a carton box.


Mechanical Characteristics:



Tensile Strength

Long Term

600N

Short Term

1500N

Crush Resistance

Long Term

300N/100mm

Short Term

1000N/100mm

Bending Radius

Dynamic

20D

Static

10D




Optical Characteristics:





G652D

G657A1

G657A2

G657B3

G.655

62.5/125

50/125

Attenuation
(+20℃)

@850nm






≤3.5dB/km

@1300nm






≤1.5dB/km

@1310nm

≤0.45dB/km

≤0.40dB/km

≤0.45dB/km

≤0.50dB/km



@1550nm

≤0.30dB/km

≤0.50dB/km



Bandwidth
(Class A)

@850






≥200MHZ·km

≥500MHZ·km

@1300






≥500MHZ·km

≥500MHZ·km

Numerical Aperture







0.275±0.015NA

0.200±0.015NA

Cut-off Wavelength


≤1260nm


≤1480nm
