Indoor Optical Cable Simplex Duplex Singlemode Multimode

Indoor Optical Cable Simplex Duplex Singlemode Multimode

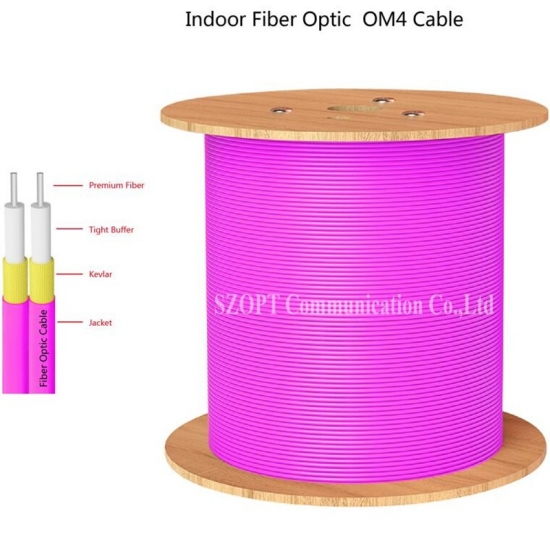

Simplex fiber optic cable consists of a single fiber,tight-buffered (coated with a 900 micron buffer over the primary buffer coating) with Kevlar (aramid yarn) strength members and jacketed for indoor use.The outer jacket can be with Riser, Plenum rated constructions and LSZH jacket.Duplex cable has two types,one is with two individual fibers in “8”digit,the other has two fibers in a round cable.

  • Product origin:

    CN
  • Color:

    Yellow/Orange/Aqua or custom
  • Shipping port:

    Shenzhen/Hongkong
  • Product Details

Indoor Optical Cable Simplex Duplex Singlemode Multimode

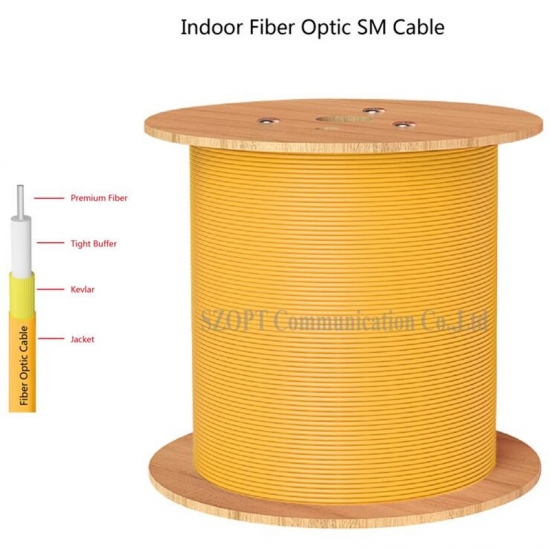

Our each simplex cable consists of one single strand of fiber with 900µ tight or semi-tight buffer tube. Aramid yarn layer provides strength and physical support. Outer jacket mainly made of low smoke zero halogen(LSZH) materials that use in applications where smoke emission and toxic fumes could pose a risk to human health and essential equipment in the event of a fire.Please contact SZOPT for more information.

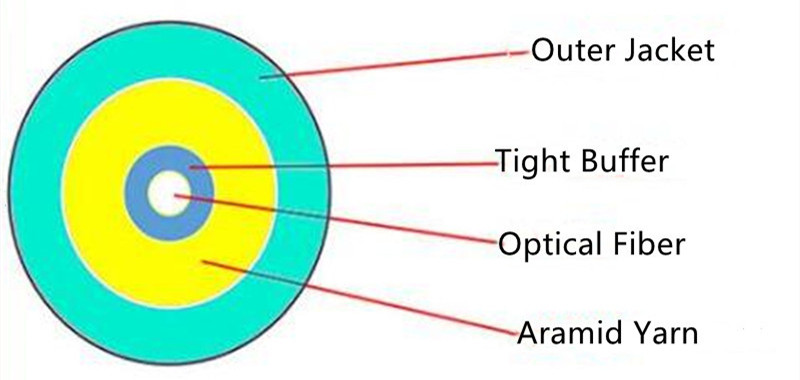

section view of simplex cable

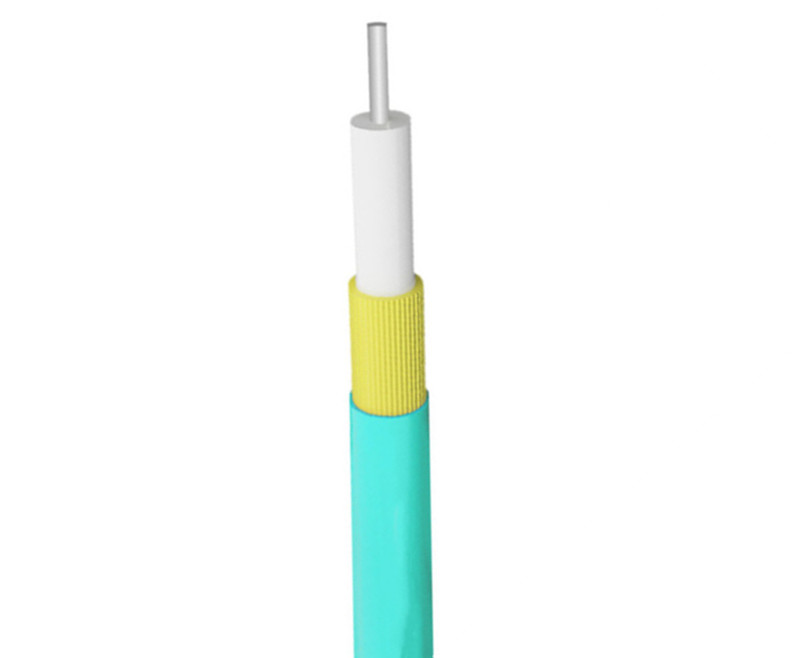

real picture of om3 om4 optical cable

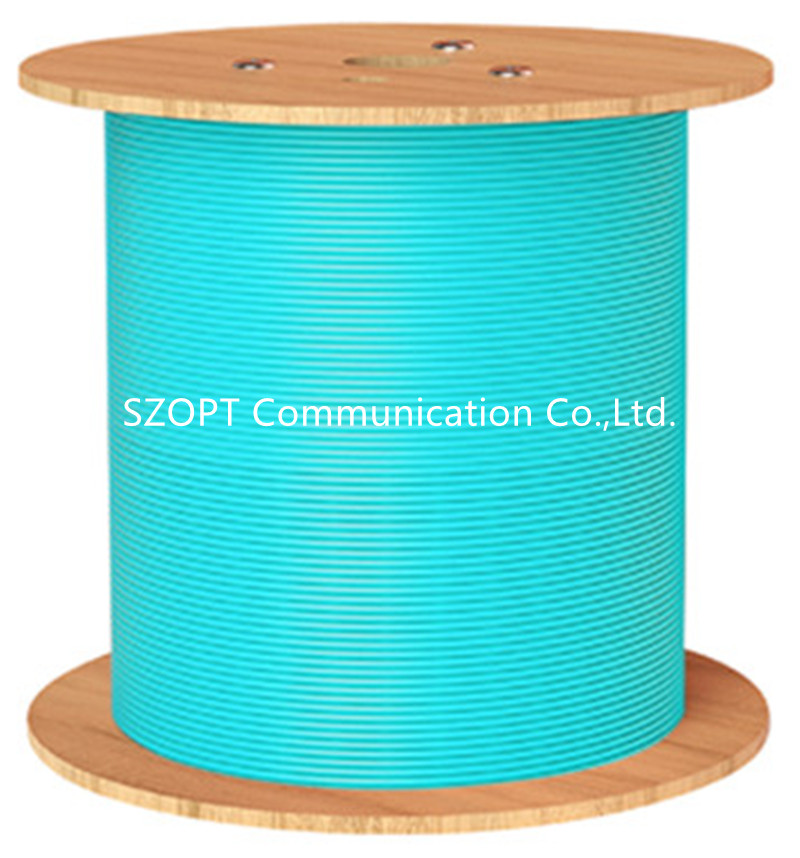

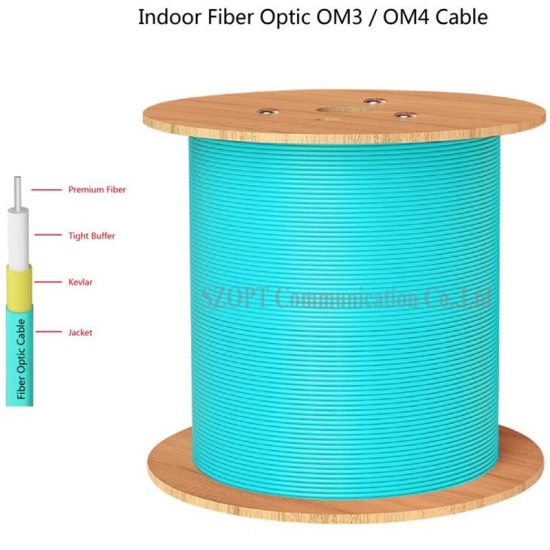

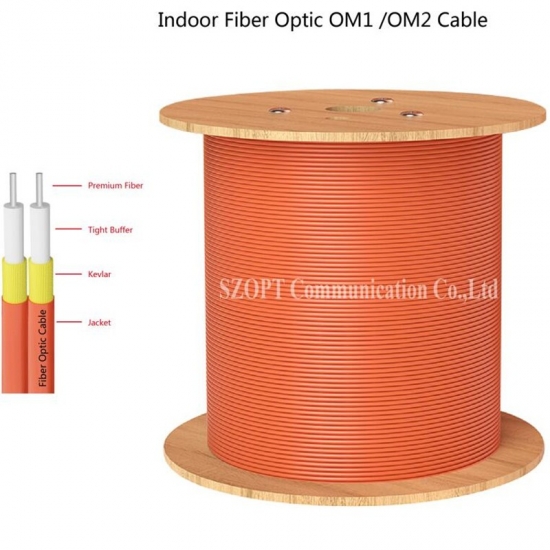

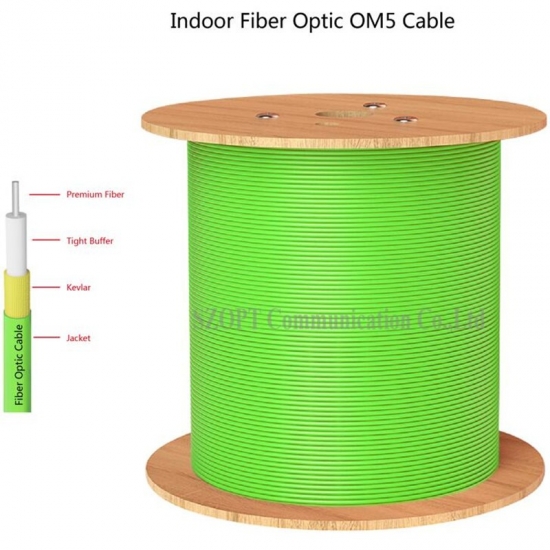

package drum of om3 om4 cables

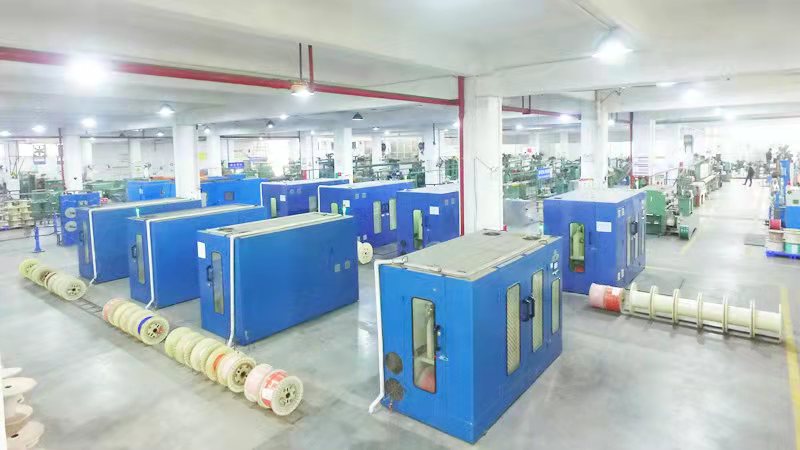

Cable Production Line1

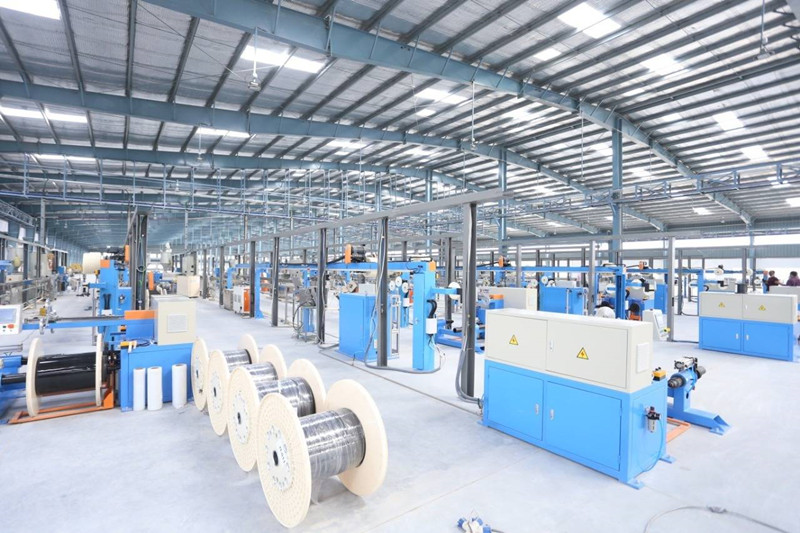

Cable Production Line2

Ready to shop the optical cables

Application:

Indoor FTTH;

For patch cords and pigtails;

For communication equipment.



Feature:

Good mechanical and environmental characteristics;

Flame retardant characteristics;

Cable jacket options:PVC,LSZH

Strength Member options:Steel,FRP,KFRP.



Package:

1km/2km/3km per roll or custom,then put into a carton box.


Mechanical Characteristics:

Tensile Strength

Long Term

80N

Short Term

150N

Crush Resistance

Long Term

100N/100mm

Short Term

500N/100mm

Bending Radius

Dynamic

20D

Static

10D


Optical Characteristics:



G652D

G657A1

G657A2

G657B3

G.655

62.5/125

50/125

Attenuation
(+20℃)

@850nm






≤3.5dB/km

@1300nm






≤1.5dB/km

@1310nm

≤0.45dB/km

≤0.40dB/km

≤0.45dB/km

≤0.50dB/km



@1550nm

≤0.30dB/km

≤0.50dB/km



Bandwidth
(Class A)

@850






≥200MHZ·km

≥500MHZ·km

@1300






≥500MHZ·km

≥500MHZ·km

Numerical Aperture







0.275±0.015NA

0.200±0.015NA

Cut-off Wavelength


≤1260nm


≤1480nm
