Optical Distribution Frame ODF 288C 576C 720C 1152C with SC/LC/FC/ST

Optical Distribution Frame ODF 288C 576C 720C 1152C with SC/LC/FC/ST

ODF is the short term of Optical Distribution Frame, is a high-density, large-capacity design box with cold rolled steel sheet, reasonable distribution, easy to manage, install and operate.


  • Payment:

    T/T,L/C,WU,etc.
  • Product origin:

    CN
  • Color:

    White or custom.
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    15-30 days
  • Product Details

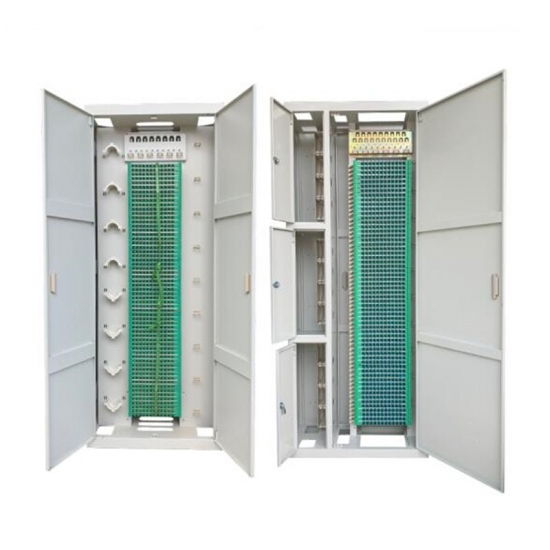

Optical Distribution Frame ODF 288C 576C 720C 1152C with SC/LC/FC/ST


SZOPT's ODFs feature functions of fixing and protecting fiber cables, fiber cable termination and cabling management. It can be installed as a fiber distribution frame alone, also can be with the digital distribution unit and audio distribution unit in a cabinet/rack which forms a comprehensive distribution frame. The ODF is flexible in configuration, simple in installation, easy to maintain, and is an indispensable device for fiber optic communication cable network terminals or relay nodes for splicing fiber cables and pigtails.Please reach us for details.

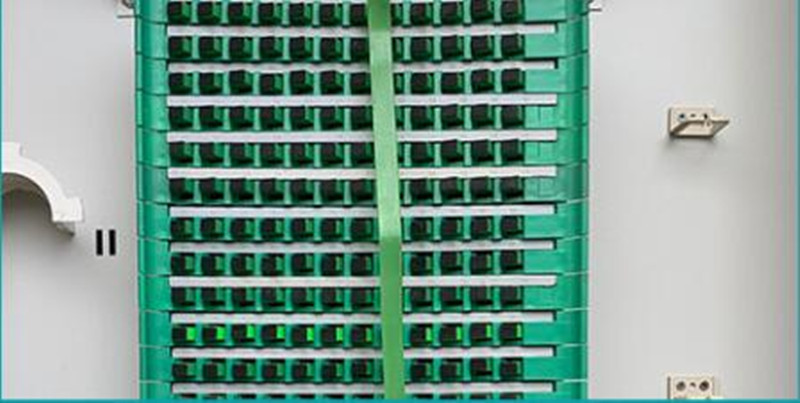

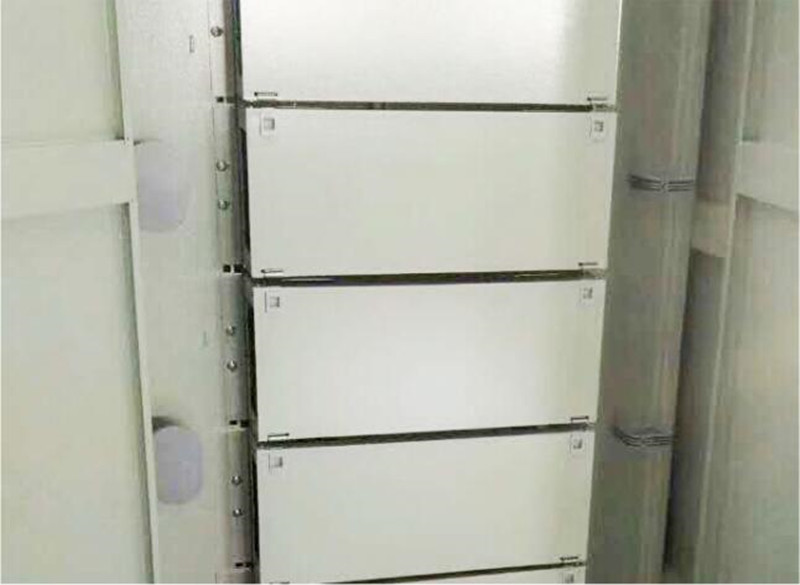

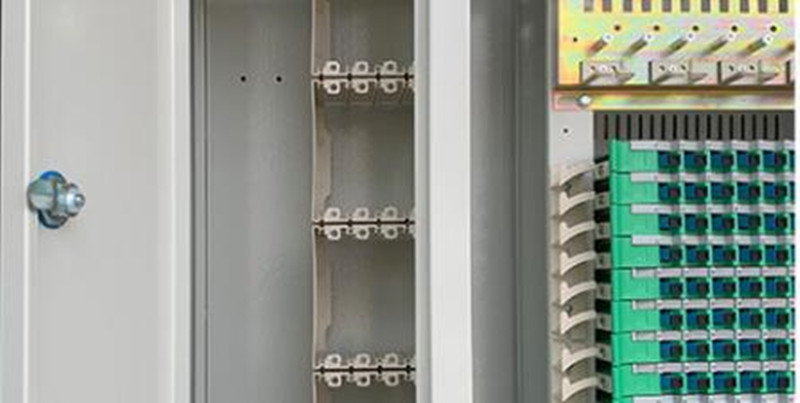

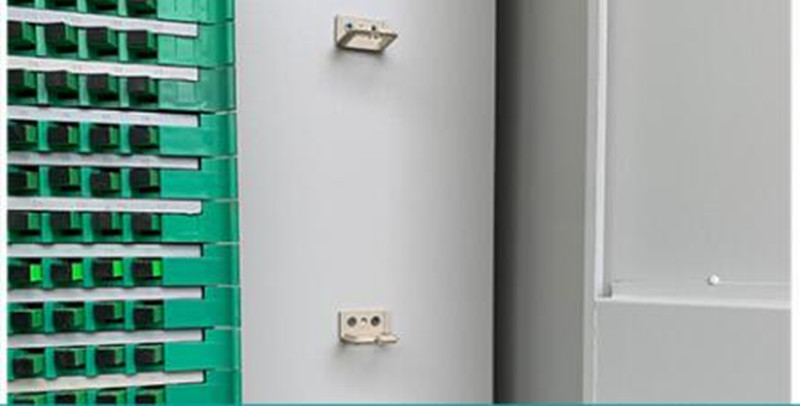

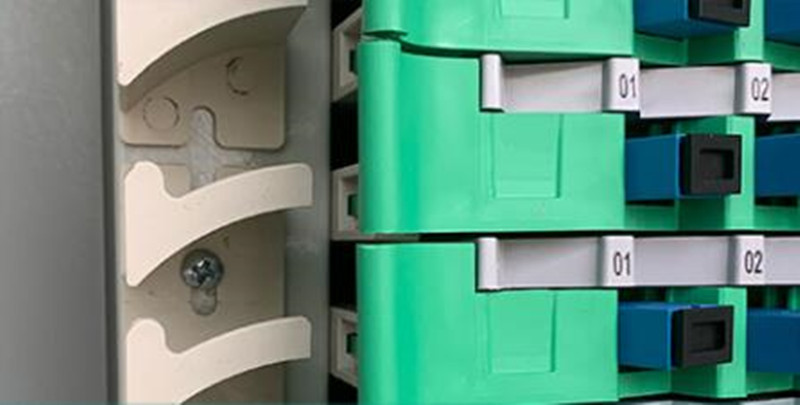

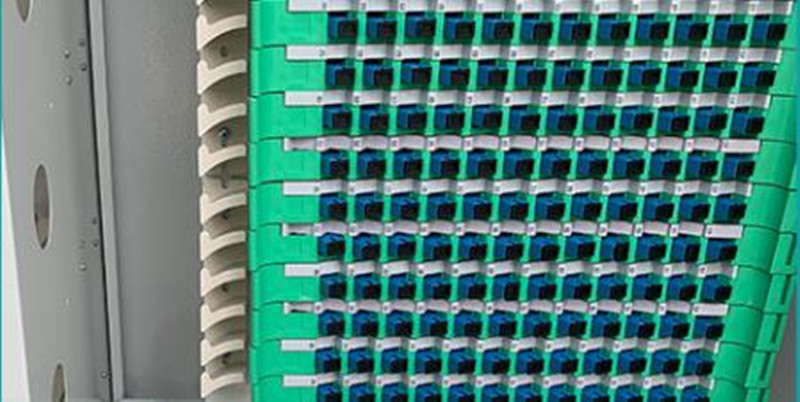

Inside structure of ODF


Inside structure of ODF


Inside structure of ODF


Inside structure of ODF


Inside structure of ODF


Inside structure of ODF




Features:

Standard 19" rack mounting;

Smooth electrostatic powder spraying cold rolled sheet/aluminum alloy;

Suitable for SC/FC/LC/ST/MPO/MTP etc.different interfaces;

Capacity:up to 144 fibers;


Applications:

Telecommunications Equipments

LAN/WAN

CATV

FTTx


Specification:

Operating  temperature: -25 ~ +40

Storage  temperature: -25 ~ +40

Relative humidity: <85%

Air  pressure: 70Kpa  ~  106Kpa


Package:

Each set in an inner carton box,then put in an outer carton box,well protection.
