19" Pivoting Patch Panel SC/FC/ST/LC 1U/2U/3U/4U 12C 24C 36C 48C 96C 144C

19" Pivoting Patch Panel SC/FC/ST/LC 1U/2U/3U/4U 12C 24C 36C 48C 96C 144C

SZOPT’s 19” 1U/2U/3U/4U fiber swing out patch panel are SC/FC/ST/LC port available ,12C/24C/48C/96C/144C/288C fibers with the cold rolled steel powder well coated,designed to fit standard 19” racks. These patch panels are ideal for high density LAN interconnect or cross-connect patching,providing a designated terminus for interrelated cabling deployments.

  • Payment:

    T/T,L/C,WU,etc.
  • Product origin:

    CN
  • Color:

    Black or White
  • Goods_stock:

    10
  • Min order:

    10 set
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    5-20 days
  • Product Details

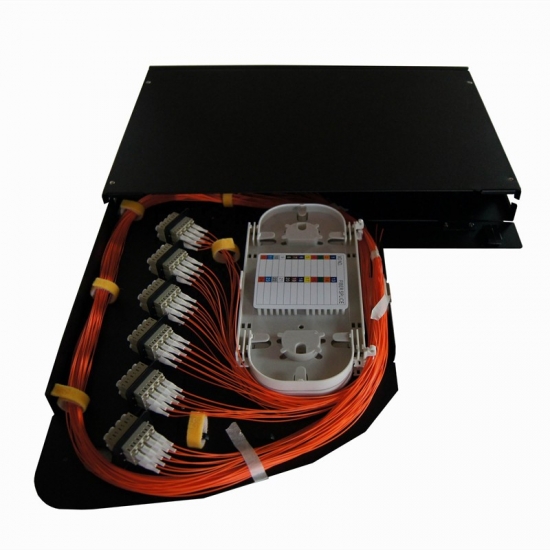

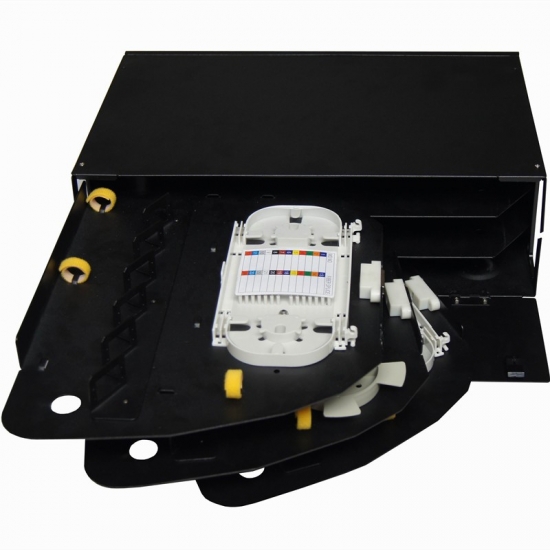

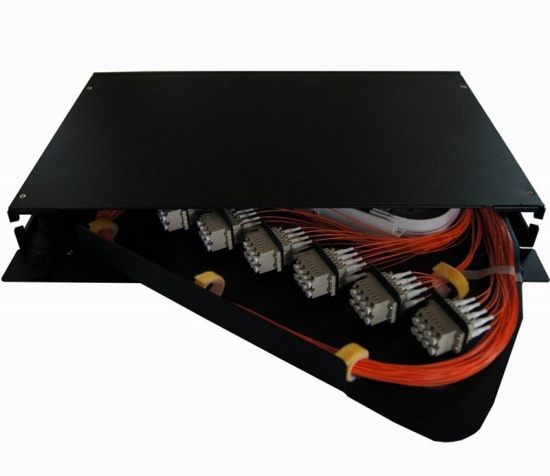

19" Pivoting Patch Panel SC/FC/ST/LC 1U/2U/3U/4U 12C 24C 36C 48C 96C 144C

SZOPT designs and manufactures lots types of robust patch panels,which can be custom configuration,all of our patch panels feature easy access and organization,these include pivots, sliding out and fixed type with all necessary accessories. Fiber adapter panels are modular ready.Please reach us for details.

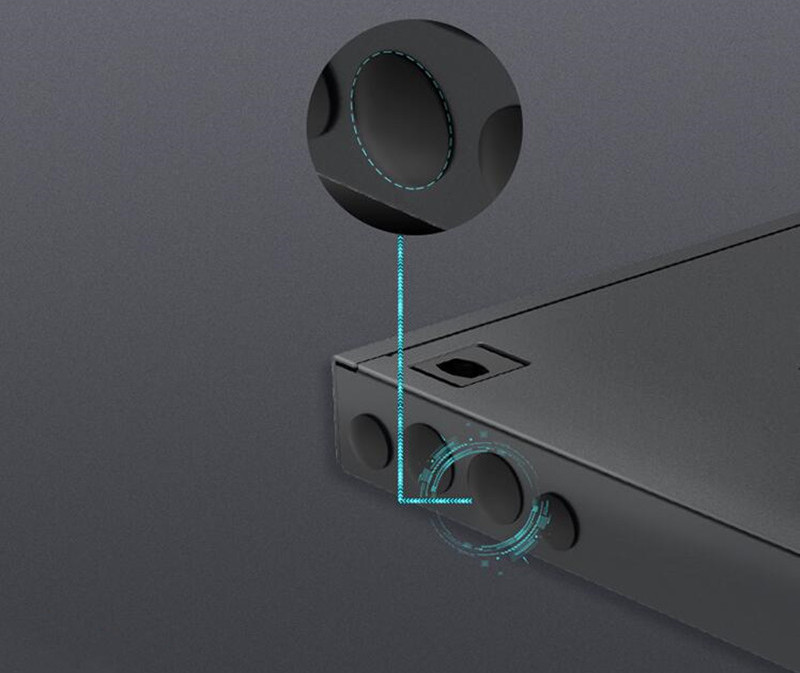

Hole seal

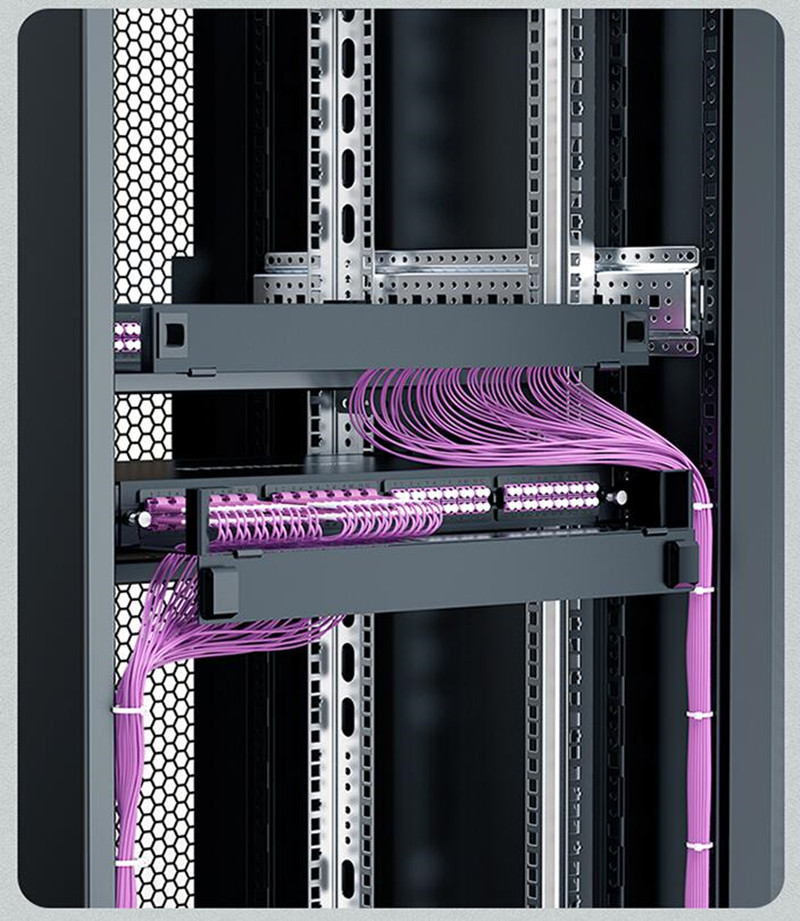

patch panel appliance

Goods ready to ship


Features:

Standard 19" rack mounting;

Smooth electrostatic powder spraying cold rolled sheet/aluminum alloy;

Suitable for SC/FC/LC/ST/MPO/MTP etc.different interfaces;

Capacity:up to 144 fibers;


Applications:

Telecommunications Equipments

LAN/WAN

CATV

FTTx


Specification:

Operating  temperature: -25 ~ +40

Storage  temperature: -25 ~ +40

Relative humidity: <85%

Air  pressure: 70Kpa  ~  106Kpa


Package:

Each set in an inner carton box,then put in an outer carton box,well protection.
