High Density MPO/MTP Metal Cassette MTP/MPO To LC Harness Patchcord Module 12 / 24 Fiber

High Density MPO/MTP Metal Cassette MTP/MPO To LC Harness Patchcord Module 12 / 24 Fiber

MPO/MTP Fiber Optic Cassette Box is usually the connection of trunk cable and the next MPO/MTP cassette in distribution area of MDA, IDA or HDA data centers. It could be installed 1pc or 2pcs of 0.9mm MPO/MTP-LC harness patch cord 12C inside.

  • Payment:

    T/T,L/C,WU,etc.
  • Product origin:

    CN
  • Color:

    Black or Custom.
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    5-20 days
  • Product Details

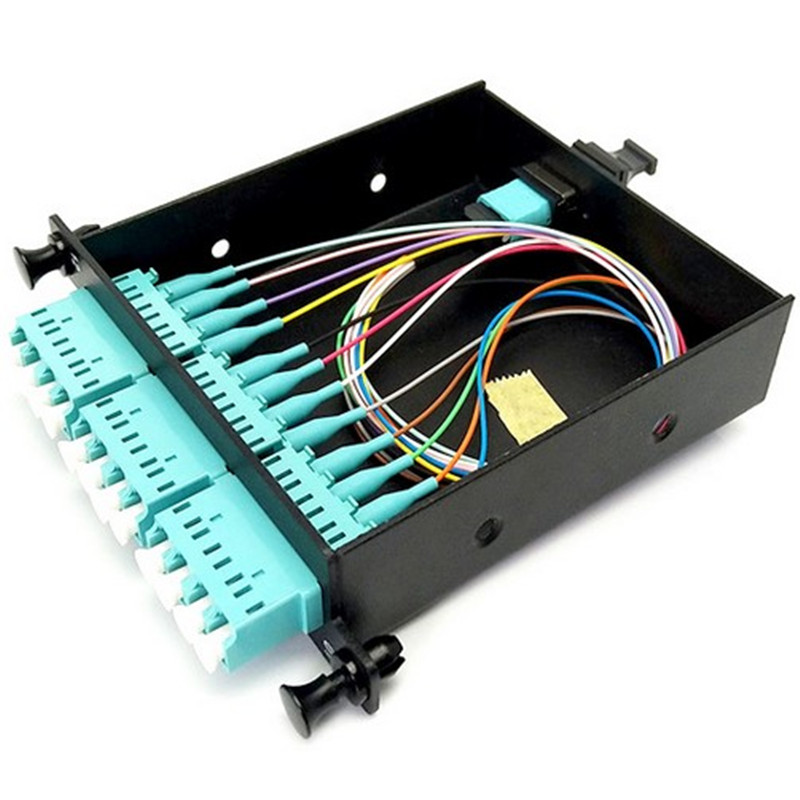

High Density MPO/MTP Metal Cassette MTP/MPO To LC Harness Patchcord Module 12 / 24 Fiber


SZOPT’s MPO/MTP cassette boxes are the cost-effective high density fiber solution.Our cassette boxes offer up to 24 fibers as the front LC connections, the MPO/MTP cassette boxes feature a removable convenience, taking out from the tray easily, SZOPT provides a turnkey solution for the cassettes,please reach us for details.

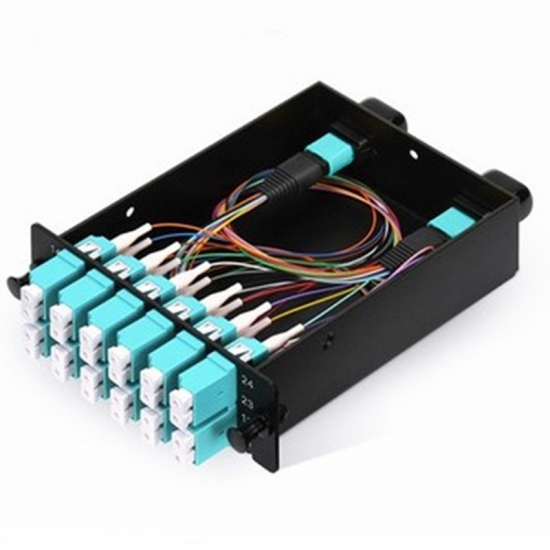

High Density MPO/MTP Metal Cassette MTP/MPO To LC Harness Patchcord Module 12 / 24 Fiber

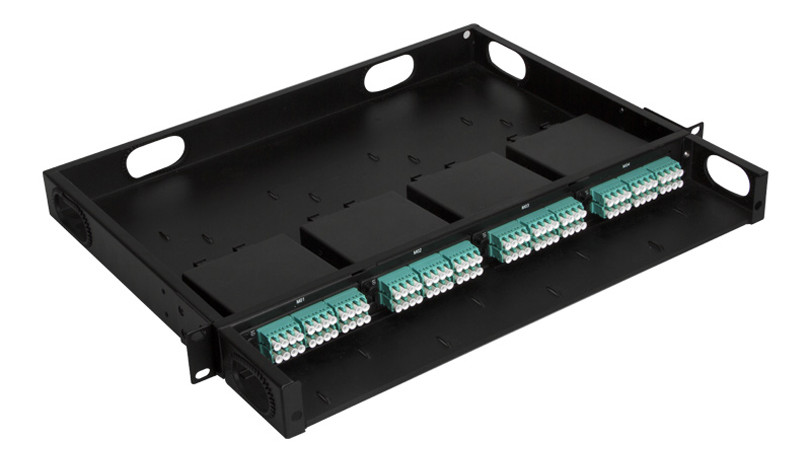

MPO/MTP-LC harness patch cable cabling

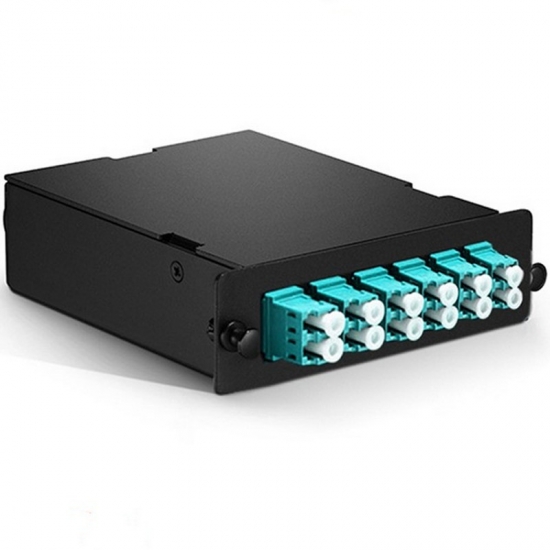

High Density MPO/MTP Metal Cassette MTP/MPO To LC Harness Patchcord Module 12 / 24 Fiber




Features:

Inside fiber patch pane's mounting;

Smooth electrostatic powder spraying cold rolled sheet/aluminum alloy;

Suitable for SC/FC/LC/ST/MPO/MTP etc.different interfaces;

Capacity:up to 144 fibers;


Applications:

Telecommunications Equipments

LAN/WAN

CATV

FTTx


Specification:

Operating  temperature: -25 ~ +40

Storage  temperature: -25 ~ +40

Relative humidity: <85%

Air  pressure: 70Kpa  ~  106Kpa


Package:

Each set in an inner carton box,then put in an outer carton box,well protection.
