Fiber Optic Wallmount Distribution Box SC/LC/FC/ST SM OM1 OM2 OM3 OM4 OM5

Fiber Optic Wallmount Distribution Box SC/LC/FC/ST SM OM1 OM2 OM3 OM4 OM5

Fiber optic wallmount box is available for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected,suitable for indoor and outdoor wall-mounted & pole mounted appliance.


  • Payment:

    T/T,L/C,WU,etc.
  • Product origin:

    CN
  • Color:

    White or Black
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    15-30 days
  • Product Details

Fiber Optic Wallmount Distribution Box SC/LC/FC/ST SM OM1 OM2 OM3 OM4 OM5

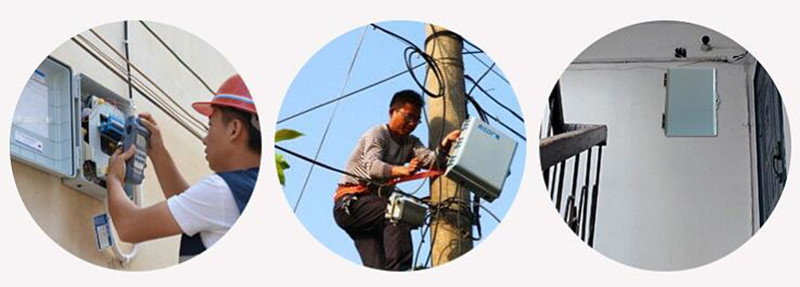

SZOPT’s wall or pole mount fiber box is a solution for both indoor&outdoor, corridors, basements, and other places where LAN connection needed.The box is made of a high quality plastic and fitted with rubber gasket, it is also UV-Resistant and rainfall resistant,the connectors are available with SC/FC/LC/ST/MU/MPO/MTP,etc.And you can choose the fiber counts as what you want.The configuration can be custom.Please reach us for details

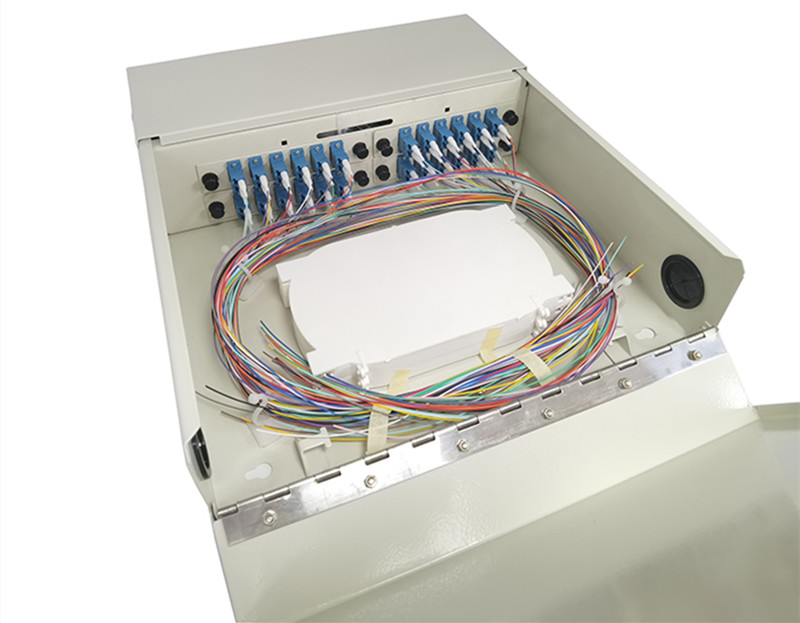

SZOPT’s wall or pole mount fiber box

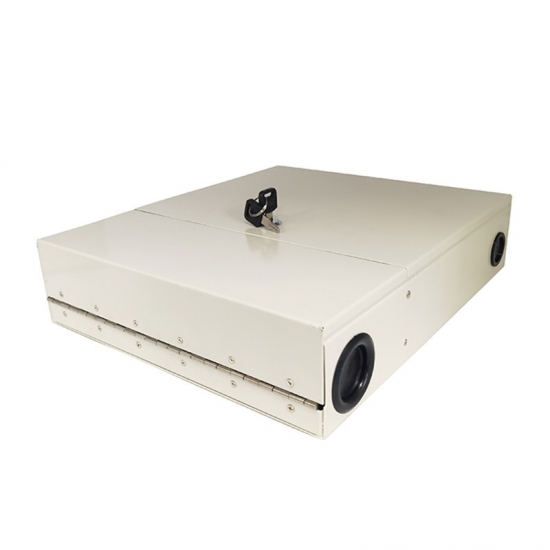

SZOPT’s wall or pole mount fiber box

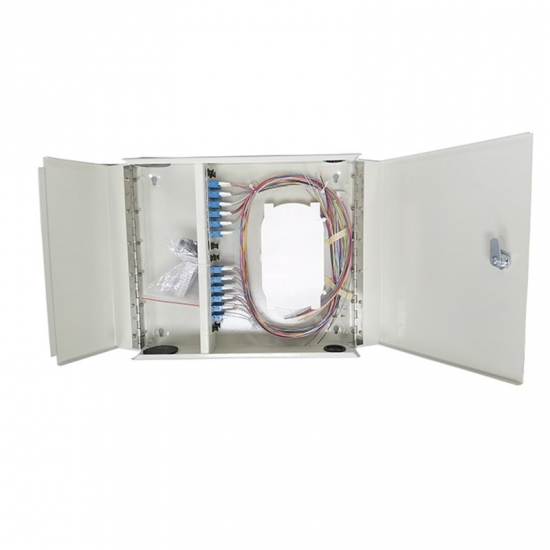

SZOPT’s wall or pole mount fiber box



Features:

Available for wall or pole mounting;

Smooth electrostatic powder spraying cold rolled sheet/aluminum alloy or plastic materials;

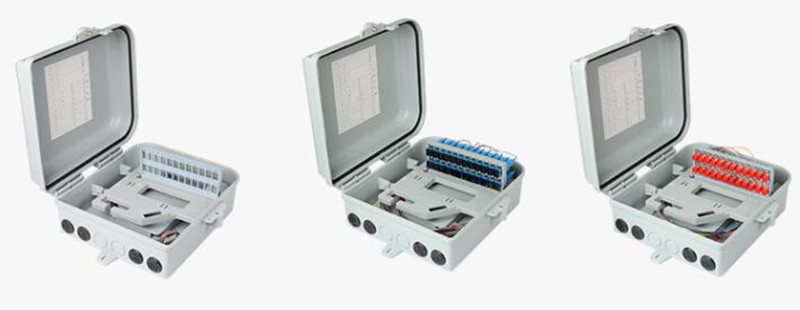

Suitable for SC/FC/LC/ST/MPO/MTP etc.different interfaces;

Capacity:up to 144 fibers;


Applications:

Telecommunications Equipments

LAN/WAN

CATV

FTTx


Specification:

Operating  temperature: -25 ~ +40

Storage  temperature: -25 ~ +40

Relative humidity: <85%

Air  pressure: 70Kpa  ~  106Kpa


Package:

Each set in an inner carton box,then put in an outer carton box,well protection.
