PLC Splitter & FBT Coupler

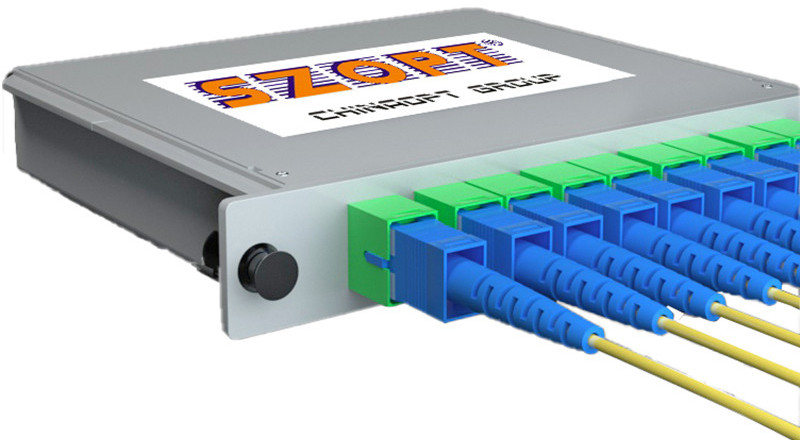

PLC Splitter LGX Cassette 1X2/4/8/16 SC/APC SC/UPC

PLC Splitter LGX Cassette 1X2/4/8/16 SC/APC SC/UPC

PLC (Planar Lightwave Circuit) splitter is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.SZOPT provides a various types of 1×N and 2×N PLC splitters, including 1×2/4/8/16,etc.PLC splitters. All of our products are all with superior optical performance, high stability and high reliability to meet various application requirement.

  • Payment:

    T/T,L/C,WU,etc.
  • Product origin:

    CN
  • Color:

    White or custom.
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    15 days
  • Product Details

PLC Splitter LGX Cassette 1X2/4/8 SC/LC/FC/ST

To keep the whole quality of the splitter,we have the strict quality control system for all raw materials and every process during the production,only one has passed all the tests can be shipped to our customers.


PLC SPLITTER ABS BOX Structure

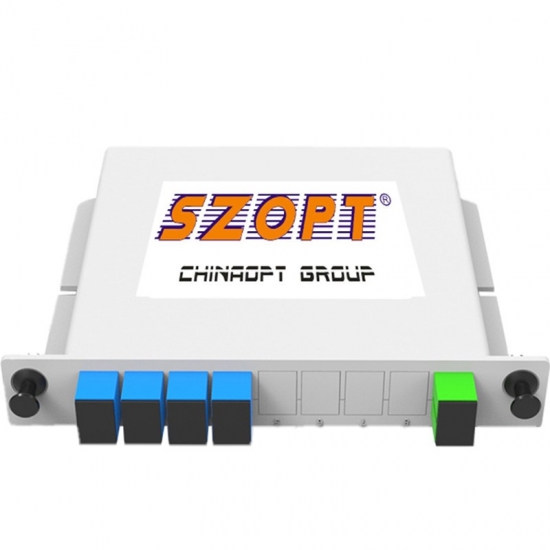

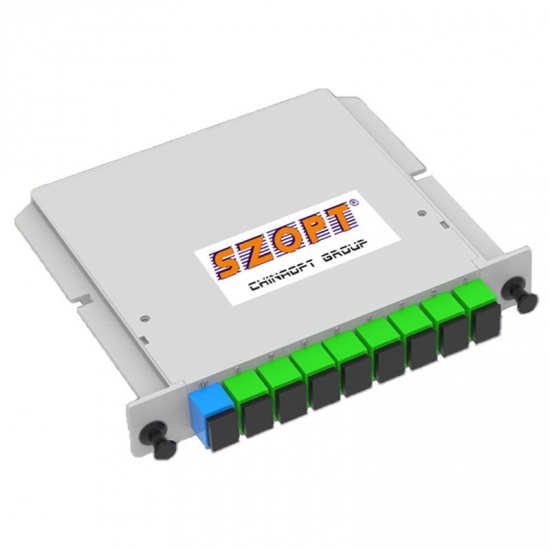

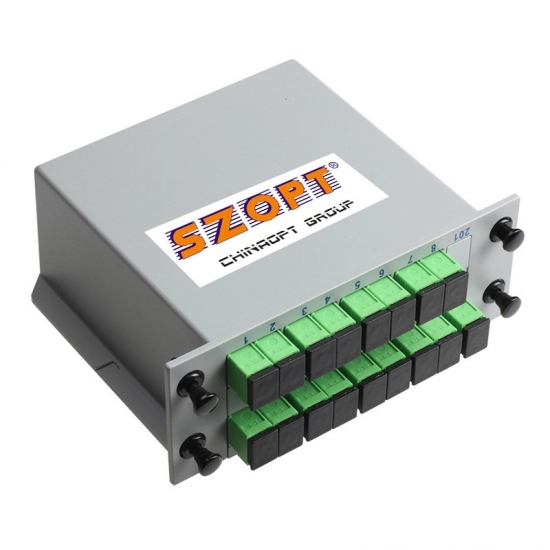

PLC SPLITTER LGX CASSETTE

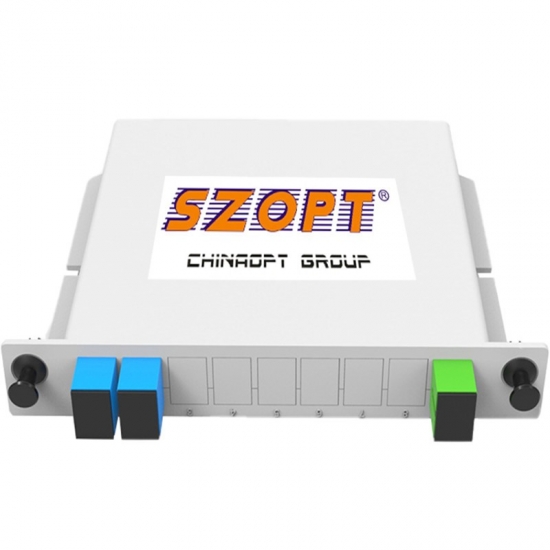

front view of plc splitter lgx


PLC Splitter workshop


plc splitter appliance

Application:

FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems


Feature:

Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package


Package:

Each one is put in a glister box,then put into a carton box.


Specification:

operation wavelength

1260 - 1650

1*N PLC Splitter

1*2

1*4

1*8

1*16

1*32

1*64

1*128

insertion loss (dB)

MAX(p/s)

3.8

/4.0

7.0

/7.4

 10.5

/10.7

13.6

/13.9

16.6

/16.9

21

/21.5

 24

/24.5

uniformity  (dB)

 MAX(p/s)

 0.6

/0.6

 0.6

/0.7

 0.8

/1.0

 0.9

/1.2

 1.2

/*1.4

 1.7

/1.9

 2.2

/2.5

return loss  (dB)

 MIN

 55

pdl  (dB)

 MAX(p/s)

 0.15

/0.25

 0.15

/0.25

 0.2

/0.25

 0.2

/0.3

 0.25

/0.3

 0.25

/0.35

 0.4

/0.45

2*N PLC Splitter

2*2

2*4

2*8

 2*16

 2*32

2*64

2*128

insertion loss (dB)

 MAX(p/s)

 4.0

/4.3

 7.4

/7.6

10.7

/11.0

14

/14.5

17.5

/18

21.4

/21.9

***

uniformity  (dB)

 MAX(p/s)

 0.9

/1.1

 1.0

/1.2

 1.0

/1.2

 1.2

/1.5

 1.5

/1.8

 2.0

/2.3

 ***

return loss  (dB)

 MIN

  55

 pdl  (dB)

 MAX(p/s)

 0.25

/0.3

 0.25

/0.3

0.25

/0.3

 0.3

/0.35

 0.3

/0.35

 0.35

/0.4

 ***

 temperature stability(dB)

 MAX

        0.5(0.3)

 operation temperature ℃

       -40 ~ 85

 storage temperature  ℃

-40 ~ 85
