1U 19" Rackmount PLC Splitter Patch Panel 1X16/32/64 2x16/32/64

1U 19" Rackmount PLC Splitter Patch Panel 1X16/32/64 2x16/32/64

Fiber Optic PLC splitter patch panel is a kind of distribution box fabricated by using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in PON networks to realize optical signal power management. SZOPT provides a whole series of 1 x N and 2 x N splitters that are tailored for specific applications. All our products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network development requirment..

  • Payment:

    T/T,L/C,WU,etc.
  • Product origin:

    CN
  • Color:

    Black or custom.
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    15 days
  • Product Details

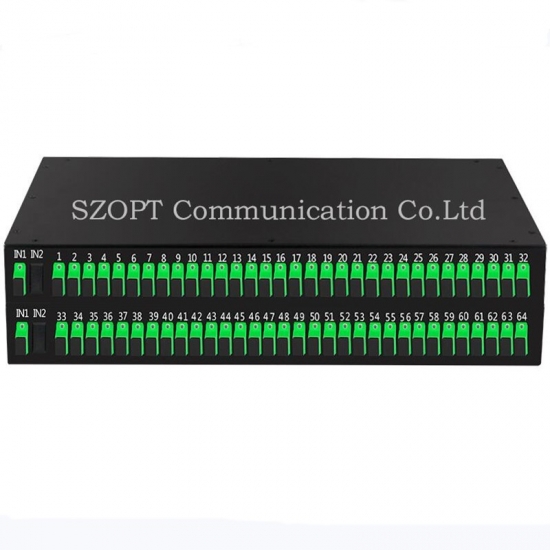

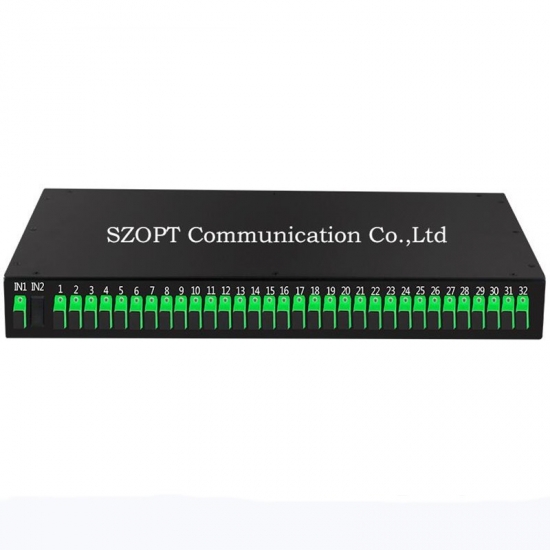

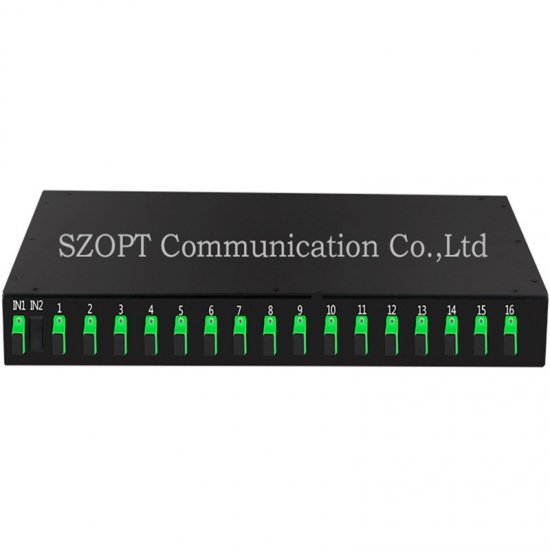

1U 19" Rackmount PLC Splitter Patch Panel 1X16/32/64 2x16/32/64

To keep the whole quality of the 19" PLC Splitter Patch Panel,we have the strict quality control system for all raw materials and every process during the production,only one has passed all the tests can be shipped to our customers.


PLC SPLITTER ABS BOX Structure

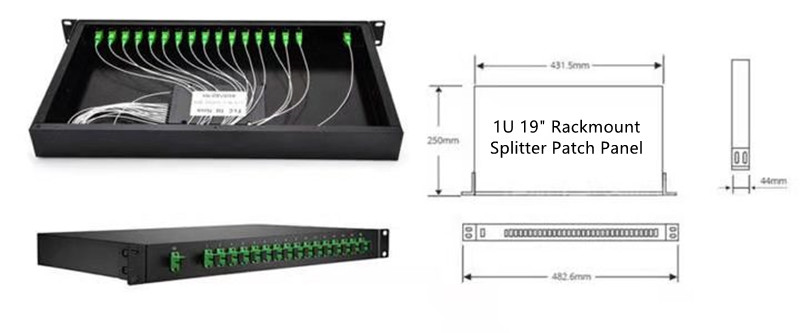

Inside view of the panel

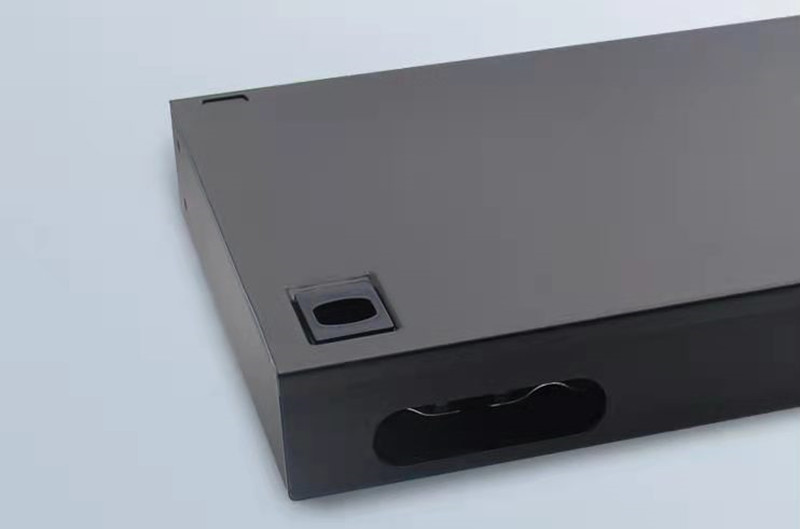

a corner of the panel

front view of the panel



plc splitter appliance

Application:

FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems


Feature:

Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package



Package:

Each one is put in a glister box,then put into a carton box.


Specification:

operation wavelength

1260 - 1650

1*N PLC Splitter

1*2

1*4

1*8

1*16

1*32

1*64

1*128

insertion loss (dB)

MAX(p/s)

3.8

/4.0

7.0

/7.4

 10.5

/10.7

13.6

/13.9

16.6

/16.9

21

/21.5

 24

/24.5

uniformity  (dB)

 MAX(p/s)

 0.6

/0.6

 0.6

/0.7

 0.8

/1.0

 0.9

/1.2

 1.2

/*1.4

 1.7

/1.9

 2.2

/2.5

return loss  (dB)

 MIN

 55

pdl  (dB)

 MAX(p/s)

 0.15

/0.25

 0.15

/0.25

 0.2

/0.25

 0.2

/0.3

 0.25

/0.3

 0.25

/0.35

 0.4

/0.45

2*N PLC Splitter

2*2

2*4

2*8

 2*16

 2*32

2*64

2*128

insertion loss (dB)

 MAX(p/s)

 4.0

/4.3

 7.4

/7.6

10.7

/11.0

14

/14.5

17.5

/18

21.4

/21.9

***

uniformity  (dB)

 MAX(p/s)

 0.9

/1.1

 1.0

/1.2

 1.0

/1.2

 1.2

/1.5

 1.5

/1.8

 2.0

/2.3

 ***

return loss  (dB)

 MIN

  55

 pdl  (dB)

 MAX(p/s)

 0.25

/0.3

 0.25

/0.3

0.25

/0.3

 0.3

/0.35

 0.3

/0.35

 0.35

/0.4

 ***

 temperature stability(dB)

 MAX

        0.5(0.3)

 operation temperature ℃

       -40 ~ 85

 storage temperature  ℃

-40 ~ 85

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

related products
PLC 1X4 SC/UPC ABS BOX
PLC Splitter 1X4 ABS BOX

This is a kind of ABS box PLC Splitter available with 1X4/1X8/1X16/1X32/1X64/1X128,2X4/2X8/2X16/2X32/2X64/2X128,the terminators can be  sc/lc/fc/st in 3.0mm or 2.0mm cable,the cable length is usually 1-1.5m.Available wavelength is:1260-1650nm.

PLC Splitter Module
PLC Splitter 1X4 Mini Module

This is a kind of stainless steel tube mini module PLC Splitter 1:4 sc/apc in 0.9mm cable,the cable length is usually 1-1.5m.Available wavelength is:1260-1650nm.

PLC 1X8 SC/APC16
PLC Splitter 1X16 Mini Module

This is a kind of stainless steel tube mini module PLC Splitter 1:16 with sc/lc/fc/st in 0.9mm cable,the cable length is usually 1-1.5m.Available wavelength is:1260-1650nm.

PLC 1X8 SC/UPC ABS BOX
PLC Splitter 1X8 ABS BOX

This is a kind of ABS box PLC Splitter available with 1X4/1X8/1X16/1X32/1X64/1X128,2X4/2X8/2X16/2X32/2X64/2X128,the terminators can be  sc/lc/fc/st in 3.0mm or 2.0mm cable,the cable length is usually 1-1.5m.Available wavelength is:1260-1650nm.

PLC 1X16 SC/UPC ABS BOX
PLC Splitter 1X16 ABS BOX

This is a kind of ABS box PLC Splitter available with 1X4/1X8/1X16/1X32/1X64/1X128,2X4/2X8/2X16/2X32/2X64/2X128,the terminators can be  sc/lc/fc/st in 3.0mm or 2.0mm cable,the cable length is usually 1-1.5m.Available wavelength is:1260-1650nm.

PLC Splitter Module
PLC Splitter 1X8 Mini Module

PLC (Planar Lightwave Circuit) splitter is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.SZOPT provides a various types of 1×N and 2×N PLC splitters, including 1×2/4/8/16/32/64,2×2/4/8/16/32/64 etc.PLC splitters. All of our products are all with superior optical performance, high stability and high reliability to meet various application requirement.

PLC Splitter LGX Cassette
PLC Splitter LGX Cassette 1X2/4/8/16 SC/APC SC/UPC

PLC (Planar Lightwave Circuit) splitter is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.SZOPT provides a various types of 1×N and 2×N PLC splitters, including 1×2/4/8/16,etc.PLC splitters. All of our products are all with superior optical performance, high stability and high reliability to meet various application requirement.

fbt coupler 1x2 1X3
Fiber Optic FBT Coupler 1X2 1X3

FBT coupler is a type of optical power management device that is fabricated using Fused Biconical Tape technology.It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.SZOPT provides a whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE.Both tree and star type inline couplers/splitters are available.Our items provide a reliable solution to split/combine signals.Single,dual,and tripple wavelength windows(1310/1490/1550nm) are available.

fiber patchcord mu e2000
Fiber Patch Cords MU E2000 Simplex Duplex Singlemode Multimode

Fiber Optical Patch Cord MU E2000 has MU/UPC E2000/UPC connectors on both ends,with PVC,LSZH,OFNP jacket in yellow(SM);orange(OM1/OM2),aqua(OM3), magenta(OM4),lime green(OM5) or custom.

QSFP SMF TRANSCEIVER
40G QSFP+ 100G QSFP28 LR4 LC Connector Fiber Optical Module

This QSFP transceiver module is a high performance module for short-range duplex data communication and interconnect applications.

self-supporting FTTH Drop Cable
FTTH Self-supporting Drop Cable 1C 2C 4C 6C 8C 12C for Outdoor

It's also called butterfly drop cable or bow-type ftth drop cable,the outer jacket is black in PVC/LSZH for outdoor,the dimension of the cable is:5.0x2.0mm,the option for strength member is:Steel Wire/FRP/KFRP,the option for the fiber is:G652D/G657a1/G657a2 or custom.

WDM SC APC UPC
SC/LC/FC/ST CWDM DWDM WDM Fiber Optic Multiplexer

SZOPT offers a full range of CWDM&DWDM to meet the demand of applications such as: Gigabit & 10G Ethernet,SDH/SONET,ATM,ESCON,Fibre Channel,FTTx and CATV,etc.
