Fiber Patch Cords FC-FC Simplex Duplex Singlemode Multimode

Fiber Patch Cords FC-FC Simplex Duplex Singlemode Multimode

Fiber Optical Patch Cord FC-FC has FC/UPC connectors on both ends,with PVC,LSZH,OFNP jacket in yellow(SM);orange(OM1/OM2),aqua(OM3), magenta(OM4),lime green(OM5) or custom,the cable diameter is 3.0mm,2.8mm,2.4mm,2.0mm,1.8mm,1.6mm,1.2mm,0.9mm,etc.

  • Payment:

    T/T,LC,WU,etc.
  • Product origin:

    CN
  • Color:

    Yellow,orange or custom
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    3-15days
  • Product Details

Fiber Patch Cords FC-FC Simplex Duplex Singlemode Multimode

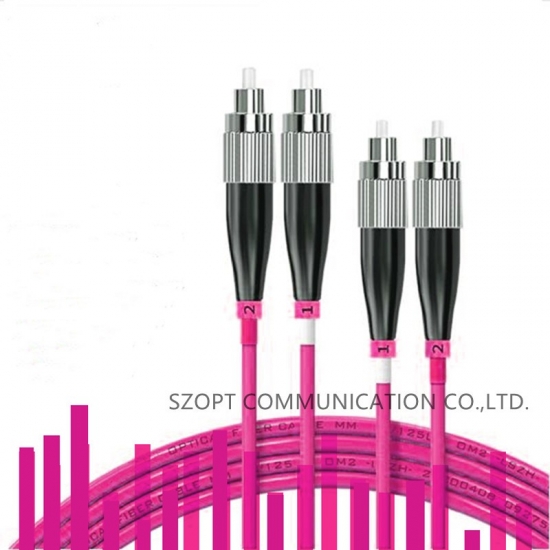

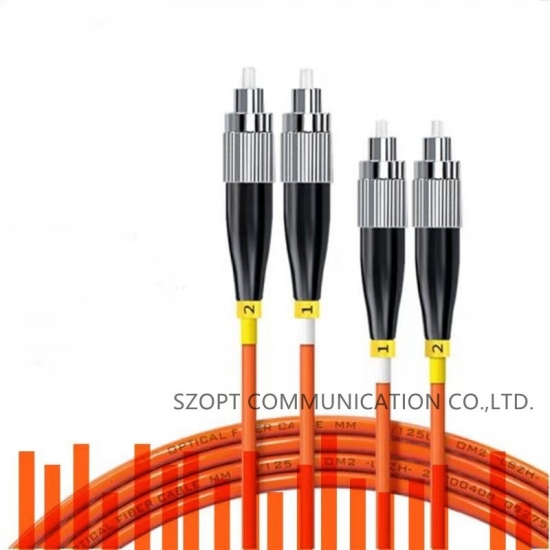

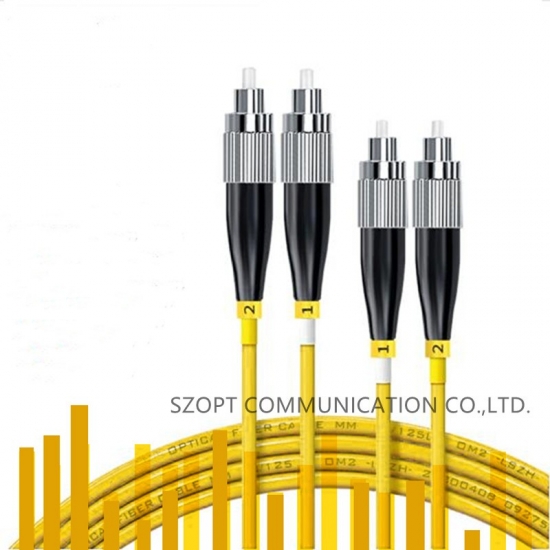

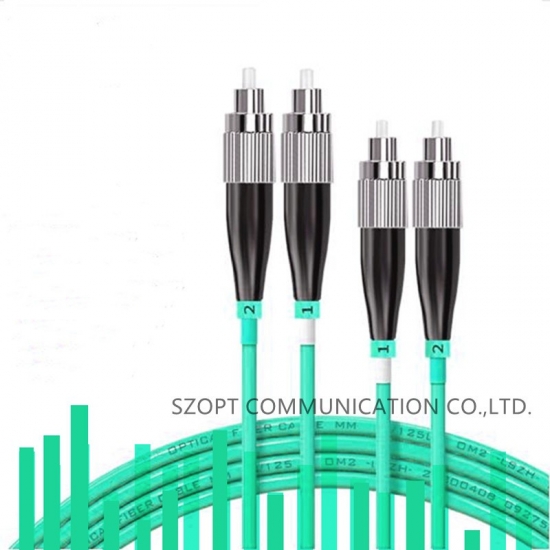

Fiber patchcord FC-FC SM/OM1/OM2/OM3/OM4/OM5 Duplex is a patch cord that has fiber connectors FC/UPC on both ends. General use of these yellow,orange,aqua,magenta,lime green or custom color cable assemblies includes the interconnection of fiber cable systems and optics-to-electronic equipment.

Zirconia Ferrule

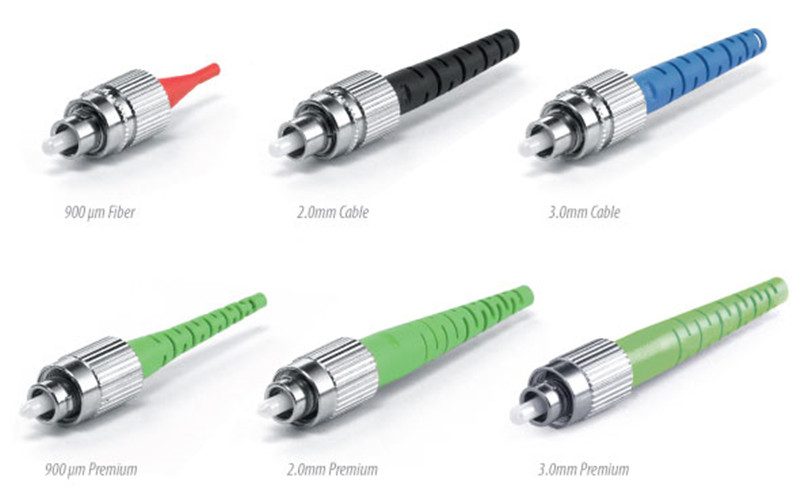

Fiber Connectors FC


Polishing Station

Test of Fiber Patch Cords

Workshop of Fiber Patch Cords

Fiber Patch Cord Appliance

Goods Ready to Ship

Application:

Telecommunication System

Testing Equipment

CATV System

LAN System


Feature:

Low Insertion Loss

High Return Loss

High Reliability and Stability

0.9mm,2.0mm,3.0mm or custom diameter cable available



Package:

Each piece in a small PE bag,then some pcs in a bigger bag,finally put into a carton box.


Specification:

Connector Type

Performance Data

Connector

Polishing Mode

IL(dB)

RL(dB)

SC/LC/FC/ST/MU/E2000

SM

UPC

≤0.3

≥50

APC

≤0.3

≥60

MM

PC

≤0.3

≥35

MTRJ

SM

PC

  ≤0.5

≥50

MM

PC

≤0.5

≥35
