Multicore Fiber Patch Cords SC FC LC ST MU E2000 Singlemode Multimode

Multicore Fiber Patch Cords SC FC LC ST MU E2000 Singlemode Multimode

Fiber Optical Patch cords  12C 24C 48C 96C 144C has SC/FC/LC/ST/MU/E2000 connectors on both ends,with PVC,LSZH,OFNP jacket in yellow(SM);orange(OM1/OM2),aqua(OM3), magenta(OM4),lime green(OM5) or custom,the cable diameter can be custom,etc.

  • Payment:

    T/T,LC,WU,etc.
  • Product origin:

    CN
  • Color:

    Yellow,orange or custom
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    3-15days
  • Product Details

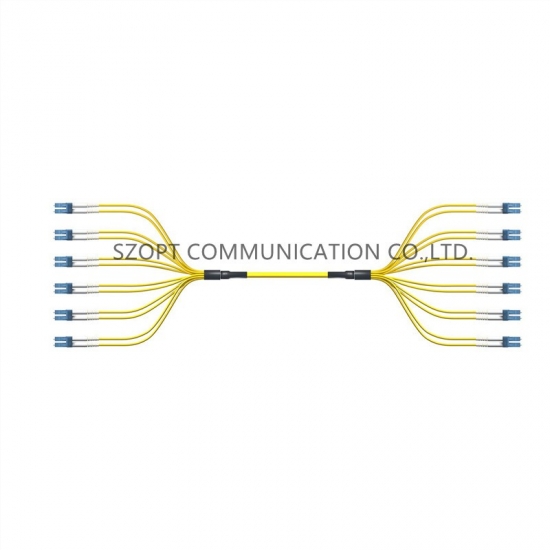

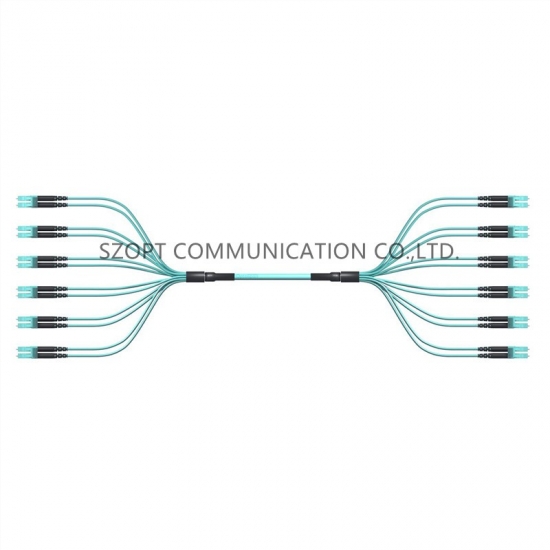

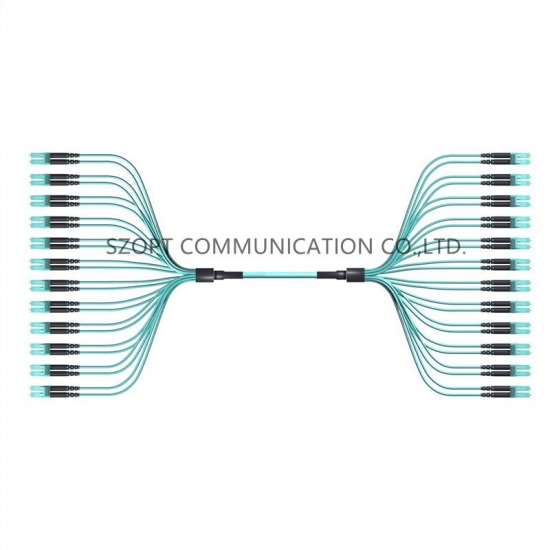

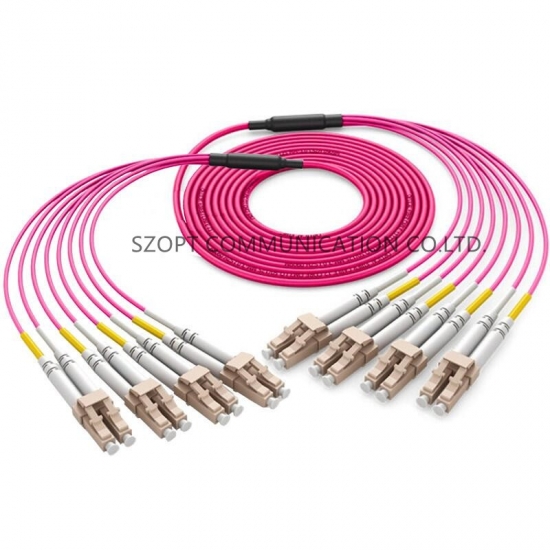

Multicore Fiber Patch Cords SC FC LC ST MU E2000 Singlemode Multimode


Multi-Core Indoor Fiber Optic Patch Cords,are mostly tight buffer designed, the tight buffer optical fiber, the Kevlar which is used to further strength the cable structure, making it resist high tension, and the cable outer sheath. The trend is to use PVC/LSZH or other RoHS compliant materials to make the cable sheath; this will help protect the environment and the health of the end users. Usually the single mode indoor fiber optic cables are installed between the buildings where the distance is more than 100 meters, while multimode indoor fiber optic cables are used shorter distance connections. SZOPT supplies both SMF and MMF indoor fiber cables with various structures for different applications.

Zirconia Ferrule

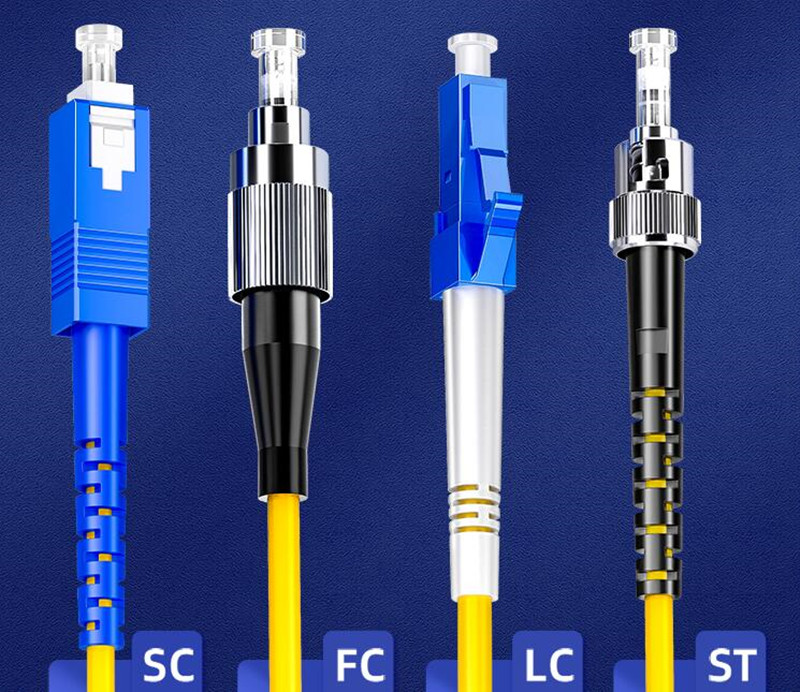

Fiber Optical Connectors

Polishing Station

Test of Fiber Optical Patch Cords

Fiber Patch Cords Workshop

Fiber Optical Appliance

Goods Ready to Ship

Application:

Telecommunication System

Testing Equipment

CATV System

LAN System


Feature:

Low Insertion Loss

High Return Loss

High Reliability and Stability

0.9mm,2.0mm,3.0mm or custom diameter cable available


Package:

Each piece in a small PE bag,then some pcs in a bigger bag,finally put into a carton box.


Specification:

Connector Type

Performance Data

Connector

Polishing Mode

IL(dB)

RL(dB)

SC/LC/FC/ST/MU/E2000

SM

UPC

≤0.3

≥50

APC

≤0.3

≥60

MM

PC

≤0.3

≥35

MTRJ

SM

PC

  ≤0.5

≥50

MM

PC

≤0.5

≥35
