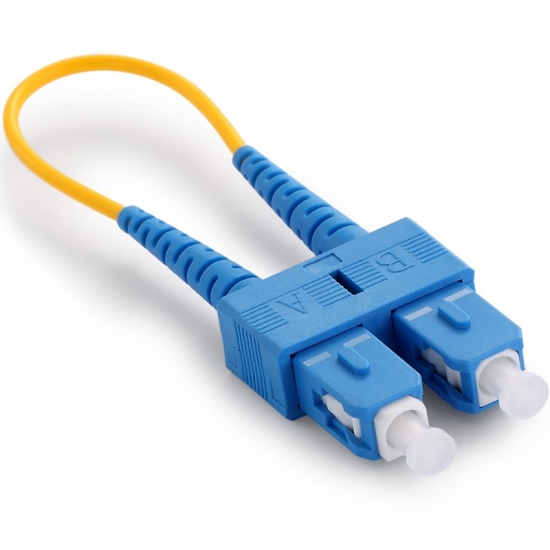

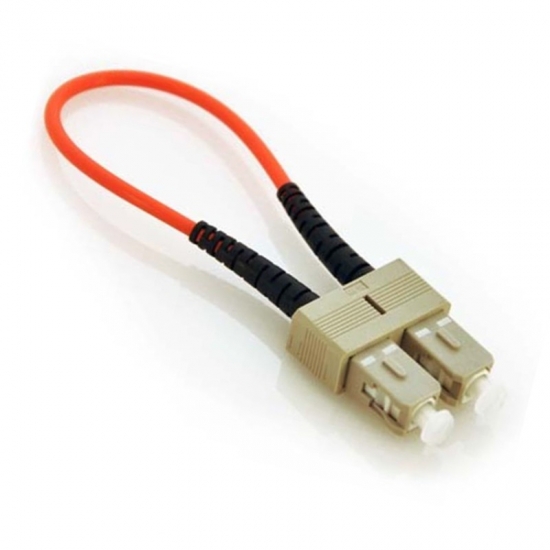

Fiber Optic Loopback Cable SC Singlemode Multimode

Fiber optic loopback plugs are designed for equipment testing, self-testing, engineering, network diagnostics and measurement applications.These devices are typically used for testing the transmission capability and receiver sensitivity of network equipment,and play an important role in fiber optic link troubleshooting.

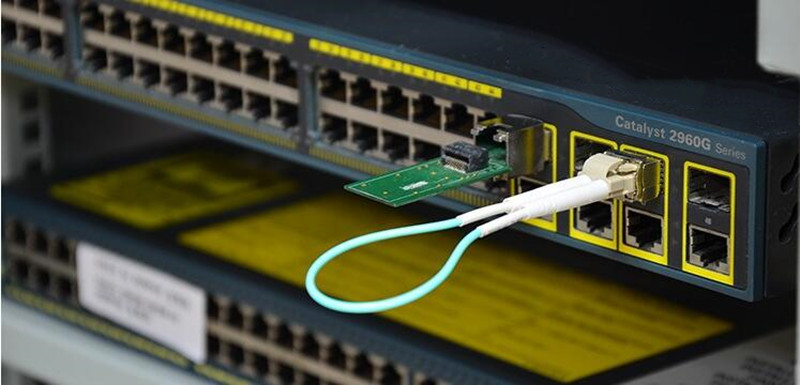

Fiber loopback cable is often utilized to check whether the transceiver module is working perfectly as designed. As we all know,transceiver module has two ports, a transmitter port and a receiver port. The former one is to send out laser signals and the latter is to receive signals.

Fiber optic loopback modules LC are designed to provide test engineers with an effective way of testing the transmission capability and receiver sensitivity of optical network equipment.

The LC fiber loopback is used to test the signal backhaul in the system or network system. Through the backhaul signal, various potential anomalies in the network link can be detected. This type of detection is commonly used to ensure the network link..

A loopback cable is also known as loopback plug or loopback adapter, which is a plug used to test physical ports to identify network problem. It provides system test engineers a simple but effective way of testing the transmission capability and receiver sensitivity of network equipment.

LC/UPC Fast Connector,also known as Field installation connector LC/UPC,or Fast assembly connector LC/UPC, is a new kind of connector that can be used in FTTH project scene. They don’t need polishing, no epoxy. They could be installed in the field and make connection less than two minutes. Furthermore, it doesn’t need the fused fiber. Only need some simple tools,by this way,it can save time and cost.SZOPT can offer you different models for options,please reach us for details.

Fiber optic closures provide a protected area for the spliced sections to live, keeping them away from any hazards. Any of these that come in contact with the wires can lead to damage. Bugs may bite through the protective layers, while moisture can flood the cabling. Even things like vandalism and damage from car accidents can be troublesome. A rugged, hermetically sealed fiber optic splice closure can better protect cables and the sensitive data that runs through them from many of the dangers they face.

Such patch cords are armored with black PE jacket,waterproof,roden-proof,widely used for harsh environment,there's a stainless steel strength member inside to make the cable tough tensile strenth,the fiber counts can be up to 24 fibers.

Variable in-line optical attenuators,also know as adjustable in-line optical attenuator or short as VOA, are used to permit dynamic control of optical power levels in a fiber. It can be applied to adjust power level of signal in the optical communication at the output of light sources, E/O converters and for the linear or dynamic range of power meter. Furthermore, they can the used in optical amplifier systems to balance the gain across the different operating wavelengths.

Fiber Adapters (Mating Sleeve Fiber Adapter or Standard Fiber Adapter or Bulkhead Type Fiber Adapter) also called fiber adaptors,are used to link optical cables or device. Usually they are female to female,or female to male. SZOPT’s fiber adapters are mainly with ceramic sleeves, but phosphor bronze sleeve is an option for some special requirement.

1000BASE-ZX SFP 1550nm 80km DOM LC SMF Transceiver Module is designed for use in 100GBASE Ethernet and 4x28G OTN client interfaces throughput up to 80km over single mode fiber(SMF) using a wavelength of 1550nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and OTU4 4I1-9D1F standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G Ethernet, 112G OTN OTU4, telecom, service provider applications and 5G wireless network.

Fiber Adapters (Mating Sleeve Fiber Adapter or Standard Fiber Adapter or Bulkhead Type Fiber Adapter) also called fiber adaptors,are used to link optical cables or device. Usually they are female to female,or female to male. SZOPT’s fiber adapters are mainly with ceramic sleeves, but phosphor bronze sleeve is an option for some special requirement.
