Fiber Optic Loopback Cable MTRJ Singlemode Multimode

Fiber Optic Loopback Cable MTRJ Singlemode Multimode

Fiber loopback cable is often utilized to check whether the transceiver module is working perfectly as designed. As we all know,transceiver module has two ports, a transmitter port and a receiver port. The former one is to send out laser signals and the latter is to receive signals.

  • Payment:

    T/T,LC,WU,etc.
  • Product origin:

    CN
  • Color:

    Black or custom
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    3-15days
  • Product Details

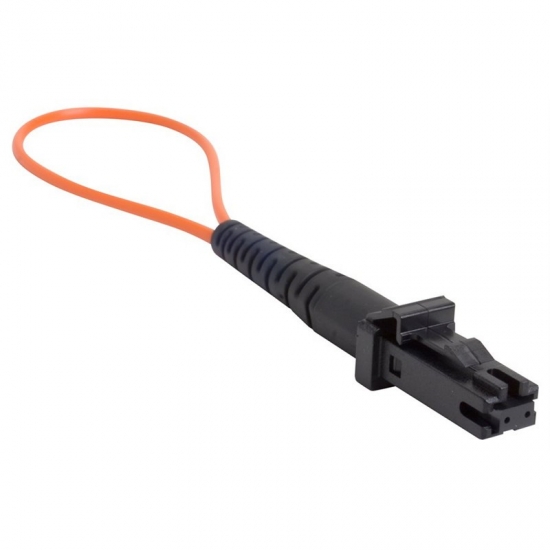

Fiber Optic Loopback Cable MTRJ Singlemode Multimode


MTRJ fiber loopback cable is designed to provide a media of return patch for a fiber optic signal. Typically it is used for fiber optic testing applications or network restorations. For the testing applications, the loopback signal is used for diagnosing a problem. Sending a loopback test to network equipment, one at a time, is a technique for isolating a problem.Fiber loopback module can provide an economical solution for many fiber optic test applications.



Fiber Optic Loopback Cable

Test of Fiber Patch Cords

Workshop of Fiber Cords

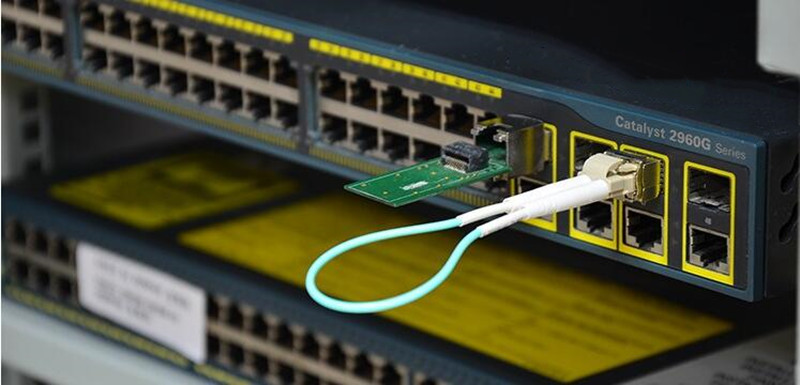

Loopback Appliance


Application:

For equipment self-testing;
Molded connector to secure connection;
Fully tested cable to ensure high quality and durability;


Feature:

Low Insertion Loss

High Return Loss

High Reliability and Stability

0.9mm,2.0mm,3.0mm or custom diameter cable available


Package:

Each piece in a small PE bag,then some pcs in a bigger bag,finally put into a carton box.


Specification:

Connector Type

Performance Data

Connector

Polishing Mode

IL(dB)

RL(dB)

SC/LC/FC/ST/MU/E2000

SM

UPC

≤0.3

≥50

APC

≤0.3

≥60

MM

PC

≤0.3

≥35

MTRJ

SM

PC

  ≤0.5

≥50

MM

PC

≤0.5

≥35
