Bare Ribbon Fiber Patch Cable MT-MT MT-FA Ferrule High Precision 8F/12F/24F

Bare Ribbon Fiber Patch Cable MT-MT MT-FA Ferrule High Precision 8F/12F/24F

MT-MT MT-FA Patch Cable Assembly is mainly used for a parallel optical technology module (QSFP), which connects the internal optical lens and external port to meet the signal transmission of the optical module. There are two types of MT-MT and MT-FA optional; SZOPT can provide all kinds of MT short patch cable products. It has the advantages of stable transmission and high reliability.

  • Payment:

    T/T,WU,L/C,etc.
  • Product origin:

    CN
  • Color:

    Colored
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    3-15 days
  • Product Details

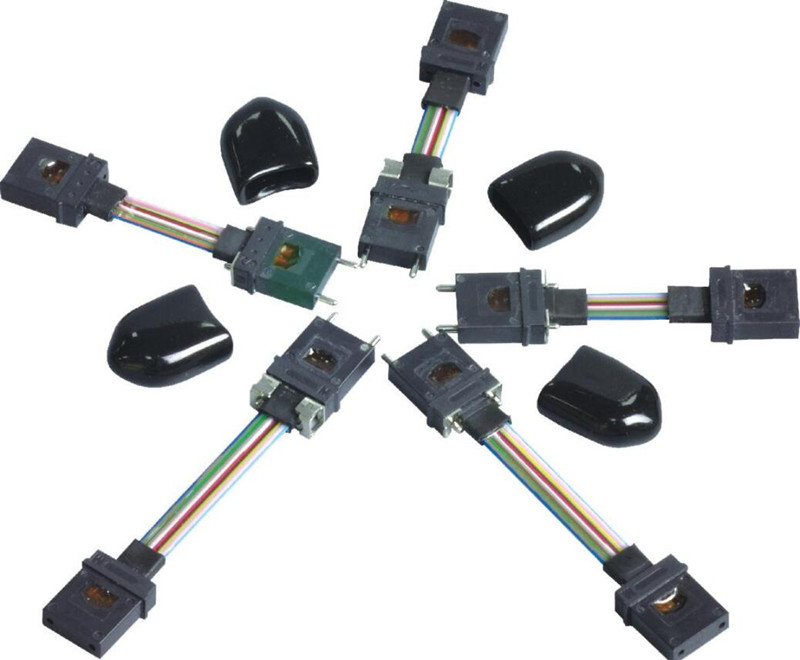

Bare Ribbon Fiber Patch Cable MT-MT Ferrule High Precision 8F/12F/24F


From raw materials such as cables,connectors,etc.we have a complete strict quality control system throughout the whole production process.We never let any defect out of factory.

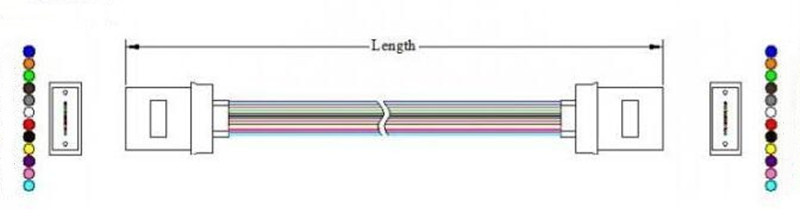

MPO MTP Polarity

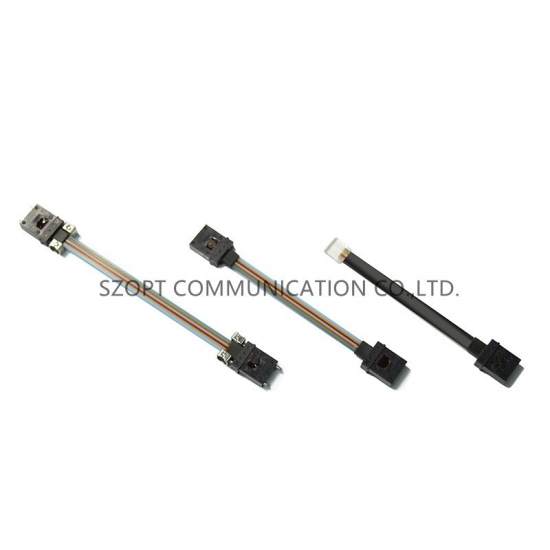

MT FA Patch cords

Test of mpo mtp cables


MPO MTP polishing station


MPO MTP Workshop

MPO MTP Appliance

Goods ready to ship


Application:

QSFP Module

Multi channel testing instrument

Data center

Communication




Feature:

Cross or parallel connecting

40G/100G transmission speed

GR-1435-Core compliance

Ribbon fiber or separated fiber convenient for inside connection




Package:

Each piece in a small PE bag,then 10pcs or 20pcs in a big bag,finally put into carton box.


Specification:

Connector

Fiber Mode

Endface

Standard

Elite(Premium)

IL(max) (dB)

RL(min) (dB)

IL(max) (dB)

RL(min) (dB)

MPO/MTP

Singlemode

APC

≤0.75

≥60

≤0.35

≥60

Multimode

PC

≤0.60

≥20

≤0.35

≥20
