MPO/MTP-LC SM OM3 OM4 OM5 Harness Patch Cable 0.9mm

MT-MT MT-FA Patch Cable Assembly is mainly used for a parallel optical technology module (QSFP), which connects the internal optical lens and external port to meet the signal transmission of the optical module. There are two types of MT-MT and MT-FA optional; SZOPT can provide all kinds of MT short patch cable products. It has the advantages of stable transmission and high reliability.

SZOPT’s MPO/ MTP loopback is a device widely used for parallel connection tests and an aging test of optical communication equipment. Our MPO/MTP loopback adapter can transmit the optical network signal from the transmitter to the receiver, thereby forming the optical signal receiving and transmitting loop. MPO/MTP loopback provides a fast and efficient way to test the transmission capacity and receiving sensitivity of optical network equipment. The MPO/MTP loopback has 8F, 12F, 16F, 24F, 32F channels with low loss, singlemode and multimode(OM1/OM2/OM3/OM4/OM5) options.

MPO/MTP Trunk Cable 24/48/72/96/144 Core is type of multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment with at least 2pcs of MPO/MTP connectors, reducing network installation or reconfiguration time and cost.MTP/MPO are used to interconnect cassettes, panels, or fan outs using a compact and rugged microcables structre. The compact cable optimizes cableway use and improve airflow.These MPO/MTP cable are build with the highest quality components , Low loss elite(premium) versions are offered accordingly,please contact SZOPT for details.

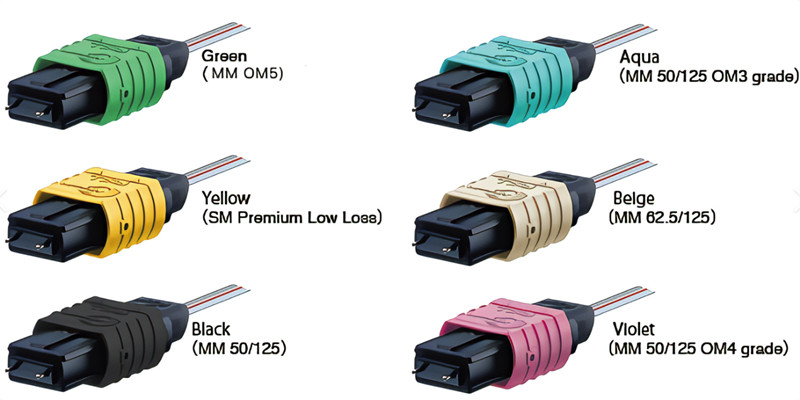

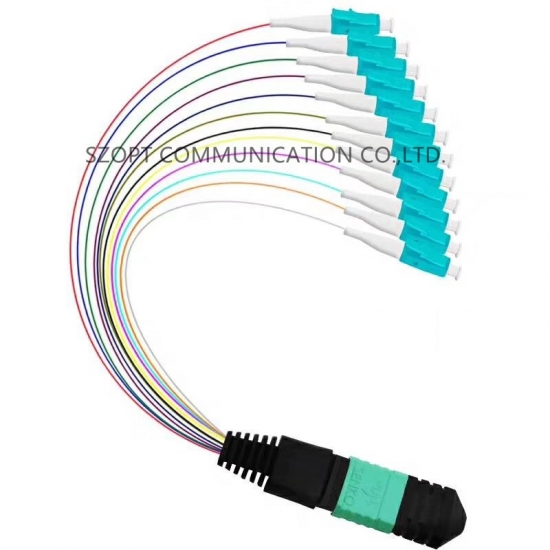

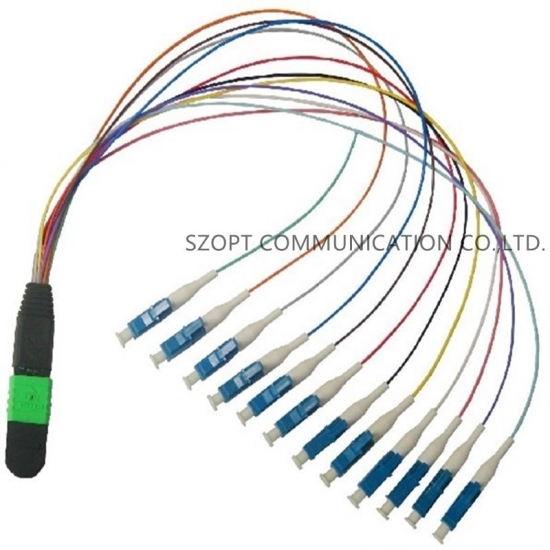

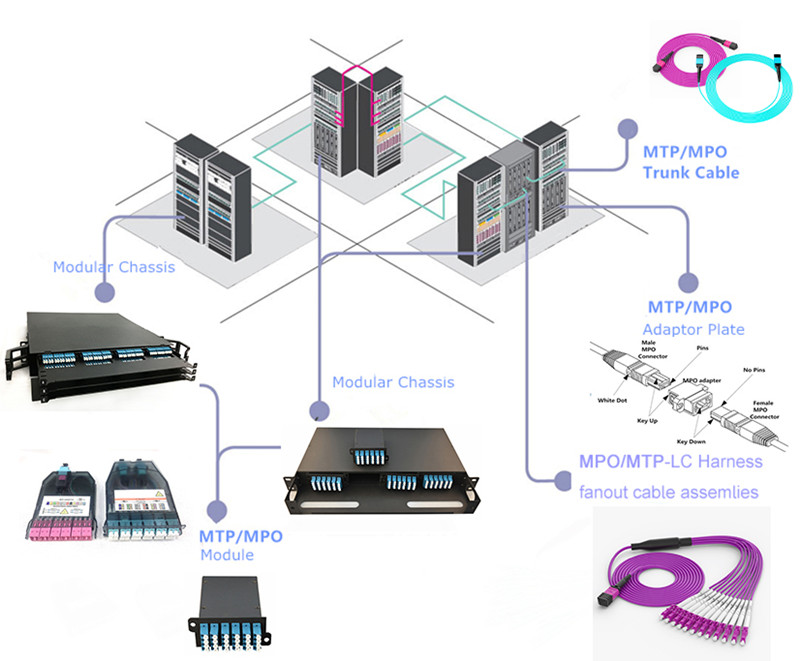

MPO/MTP to LC harness cables are used to fan out the multicore MPO/MTP fibers into generic connectors, usually it is MPO/MTP to LC, but SZOPT can also make it MPO/MTP to SC/ST/FC/MTRJ/E2000, etc. The MPO/MTP harness cable is used to transit from backbone trunk cables to fiber management racks, cable sheaths available are Mini-Core Plenum (OFNP), Mini-Core Riser (OFNR), Mini-Core Low Smoke Zero Halogen (LSZH), typical optical fiber types are single mode OS2, multimode OM1, OM2, OM3, OM4, OM5. The MPO/MTP to LC harness cables are usually 3mm ruggedized furcation legs in customized length, this will hep make it more rugged.

MPO/MTP Trunk Cable 12/16/24 Core is type of multicore cable assembly facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost.MTP/MPO are used to interconnect cassettes, panels, or fan outs using a compact and rugged microcables structure. The compact cable optimizes cable way use and improve airflow.These MPO/MTP cable are build with the highest quality components , Low loss elite(premium) versions are offered accordingly,please contact SZOPT for details.

MPO MTP Trunk Cable 12/16/24 Core is type of multicore cable assembly facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.MTP/MPO are used to interconnect cassettes, panels, or fan outs using a compact and rugged microcables structre. The compact cable optimizes cableway use and improve airflow.These MPO/MTP cable are build with the highest quality components , low loss version,elite(premium).

The pulling eye can further speed up the installation process compared with filed termination. It saves time during installation of conduits, ducts or risers. In addition, the pulling eye protects the connectors of the trunk cables and prevents the cables from twisting during the installation process. Since the pulling eye is strain relived directly onto the outer jacket.With the pulling eye,the tension strength of the cables can reach up to 245N.

MPO MTP Trunk Cable Double Jacket can be available for 12Core 24Core 48Core or custom,such double jacket trunk cable is of much more rigid performance for preferable deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.MTP/MPO are used to interconnect cassettes, panels, or fan outs using a compact and rugged microcables structre. The micro cable optimizes cable way use and improve airflow.These MPO/MTP cable are build with the highest quality components , better insertion loss versions are offered accordingly,please contact SZOPT for details.

Mode conditioning patch cords are required when Gigabit 1000BASE-LX routers and switches are installed into existing multimode cable plants. They are used to adapt the singlemode output of Gigabit Ethernet (1000BASE-LX) transceivers to a multimode cable network. All SZOPT’s mode-conditioning patch cords are fully compliant with IEEE 802.3z application standards.

MPO/MTP Fiber Optic Cassette Box is usually the connection of trunk cable and the next MPO/MTP cassette in distribution area of MDA, IDA or HDA data centers. It could be installed 1pc or 2pcs of 0.9mm MPO/MTP-LC harness patch cord 12C inside.

This QSFP transceiver module is a high performance module for short-range duplex data communication and interconnect applications.

Fiber optic closures provide a protected area for the spliced sections to live, keeping them away from any hazards. Any of these that come in contact with the wires can lead to damage. Bugs may bite through the protective layers, while moisture can flood the cabling. Even things like vandalism and damage from car accidents can be troublesome. A rugged, hermetically sealed fiber optic splice closure can better protect cables and the sensitive data that runs through them from many of the dangers they face.
