MPO MTP Trunk Cable with Pulling Eye SM MM OM3 OM4 OM5

MPO MTP Trunk Cable with Pulling Eye SM MM OM3 OM4 OM5

The pulling eye can further speed up the installation process compared with filed termination. It saves time during installation of conduits, ducts or risers. In addition, the pulling eye protects the connectors of the trunk cables and prevents the cables from twisting during the installation process. Since the pulling eye is strain relived directly onto the outer jacket.With the pulling eye,the tension strength of the cables can reach up to 245N.

  • Payment:

    T/T,WU,L/C,etc.
  • Product origin:

    CN
  • Color:

    Magenta,aqua,yellow or custom
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    3-15 days
  • Product Details

MPO MTP Trunk Cable with Pulling Eye SM MM OM3 OM4 OM5

Pulling eye design fits for different installation environments,it can offer more protection and convenience, the pulling eyes can be either at one end or at both ends.Please contact SZOPT for further information.

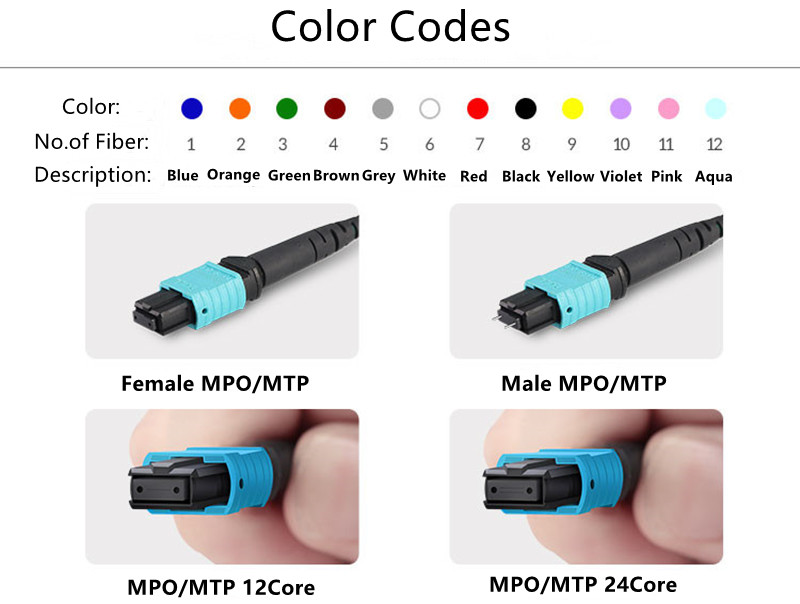

MPO MTP in Female Male

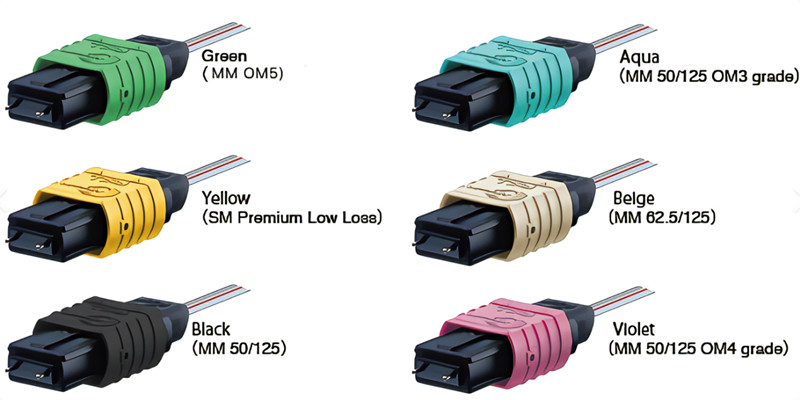

Different MPO MTP Connectors

MPO Polarities

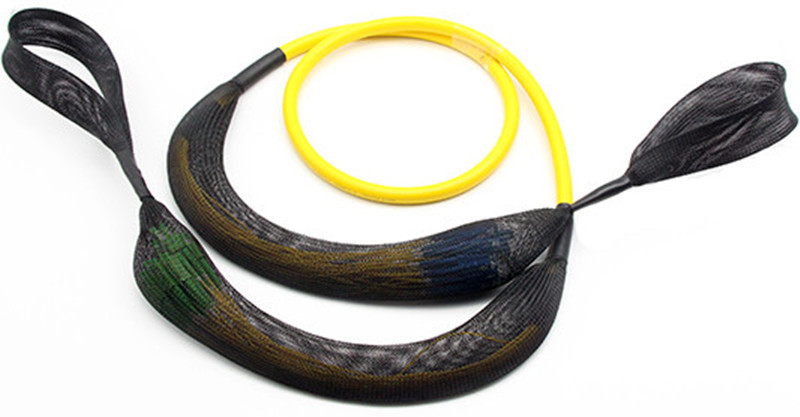

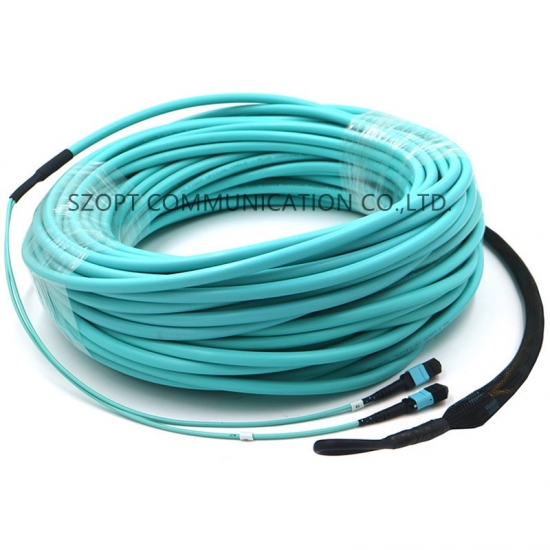

pulling eye at one end

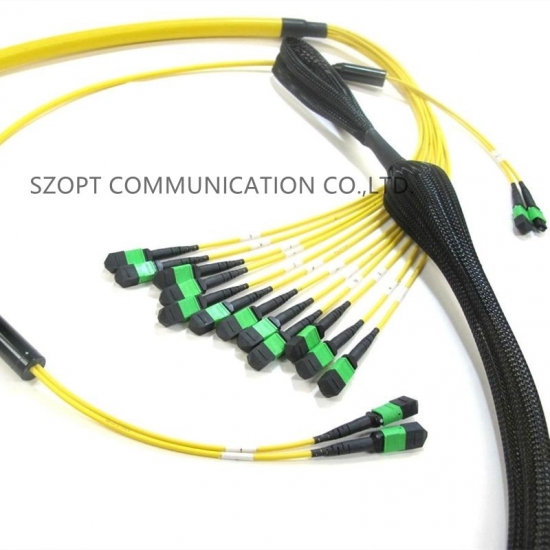

pulling eyes at both ends

Test of mpo mtp cables


MPO MTP polishing station


MPO MTP Workshop

MPO MTP Appliance

Goods ready to ship


Application:

Telecommunication System

Testing Equipment

CATV System

LAN System


Feature:

Low Insertion Loss

High Return Loss

High Reliability and Stability

0.9mm,2.0mm,3.0mm or custom


Package:

Each piece in a small PE bag,then 10pcs or 20pcs in a big bag,finally put into carton box.


Specification

Description

Standard

Elite

Connector

Polishing Mode

IL(dB)

RL(dB)

IL(dB)

RL(dB)

MPO/MTP

SM

APC

≤0.75

≥60

≤0.35

≥60

MM

PC

≤0.6

≥20

≤0.35

≥20
