Hybrid Fiber Adapter SC/FC/LC/ST/MU/E2000/SMA Female/Male Singlemode Multimode

Hybrid Fiber Adapter SC/FC/LC/ST/MU/E2000/SMA Female/Male Singlemode Multimode

Fiber Adapters (Mating Sleeve Fiber Adapter or Standard Fiber Adapter or Bulkhead Type Fiber Adapter) also called fiber adaptors,are used to link optical cables or device. Usually they are female to female,or female to male. SZOPT’s fiber adapters are mainly with ceramic sleeves, but phosphor bronze sleeve is an option for some special requirement.

  • Payment:

    T/T,L/C,WU,etc.
  • Product origin:

    CN
  • Color:

    Metal or Plastic in different colors
  • Min order:

    10
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    2-10 days
  • Product Details

Hybrid Fiber Adapter SC/FC/LC/ST/MU/E2000/SMA Female/Male Singlemode Multimode


SZOPT offers different types of hybrid fiber adapters, including the FC, ST, SC, LC, MU and DIN SMA series. These Hybrid Adapters are singlemode and Multimode types in plastic or metal housing, with PC or APC sleeves in either Simplex or Duplex styles. These hybrid adapters are widely used when connecting different types of fiber optic connectors together in a fiber optic link.Please reach us for details


zirconia sleeve for fiber adapters

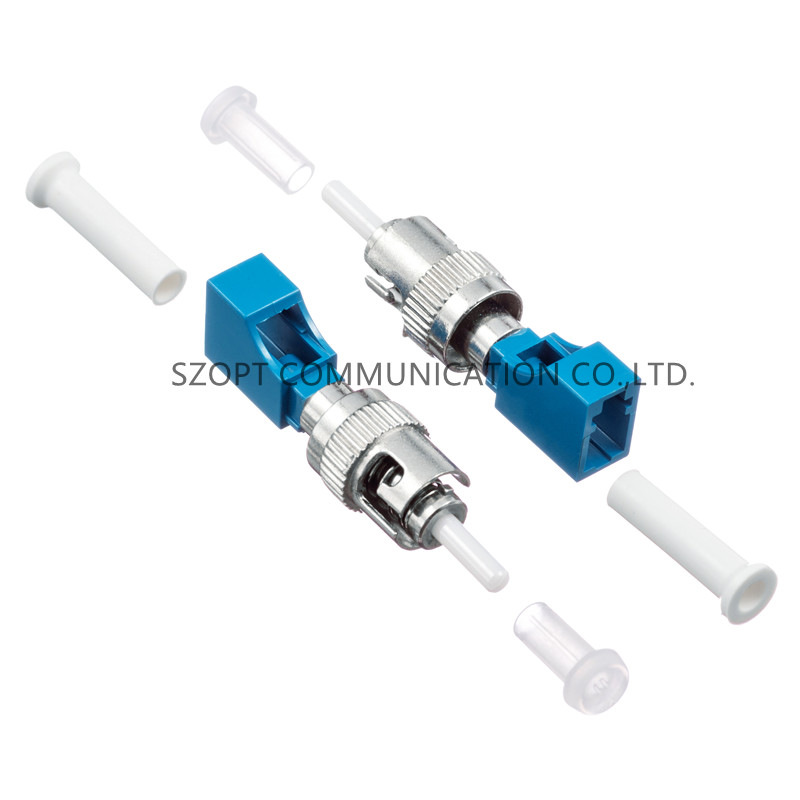

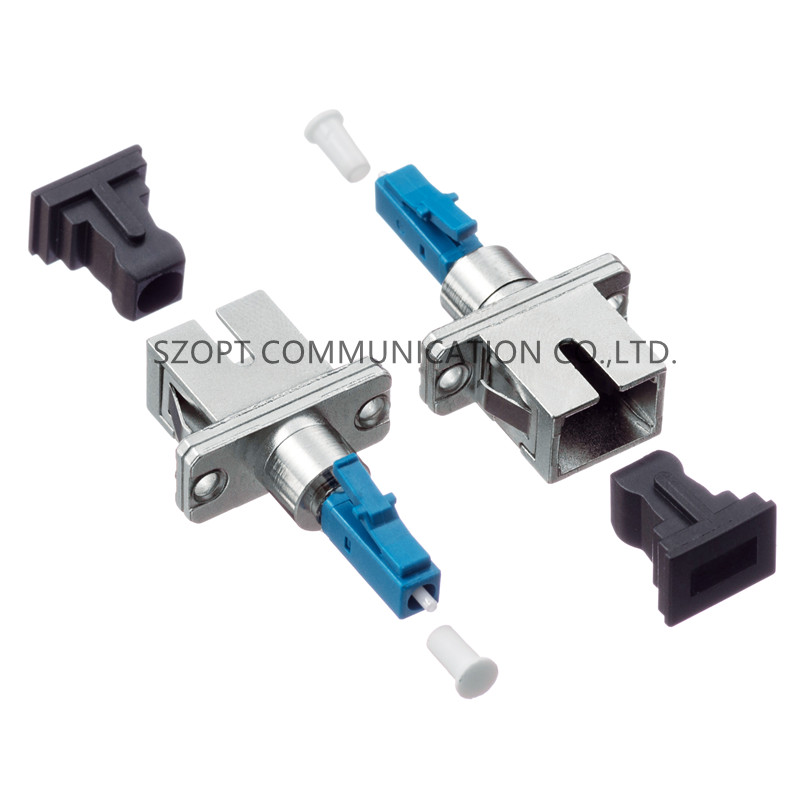

HYBRID ADAPTER ST(M)-LC(F)

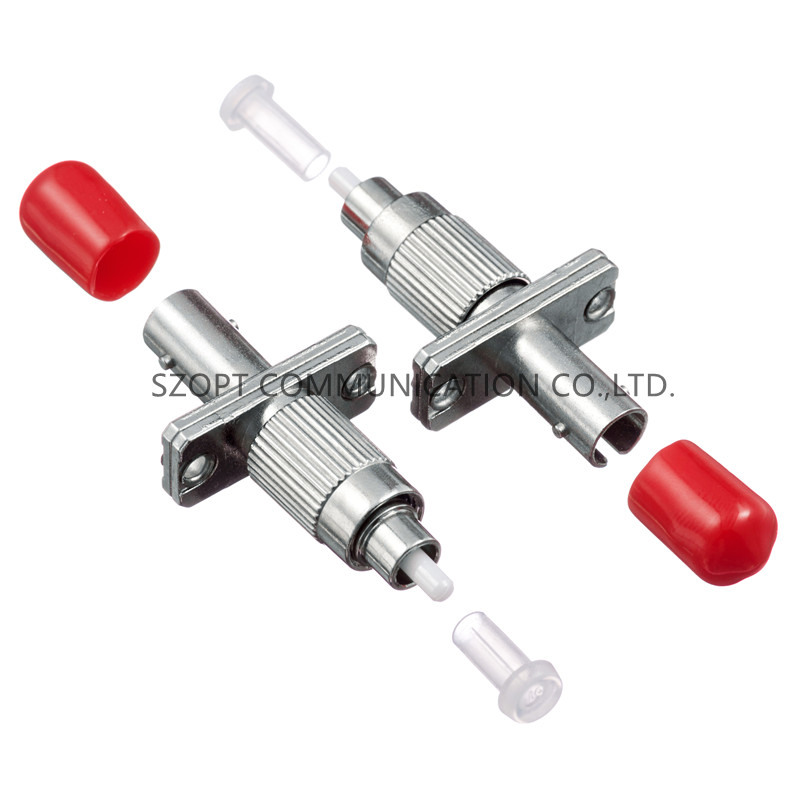

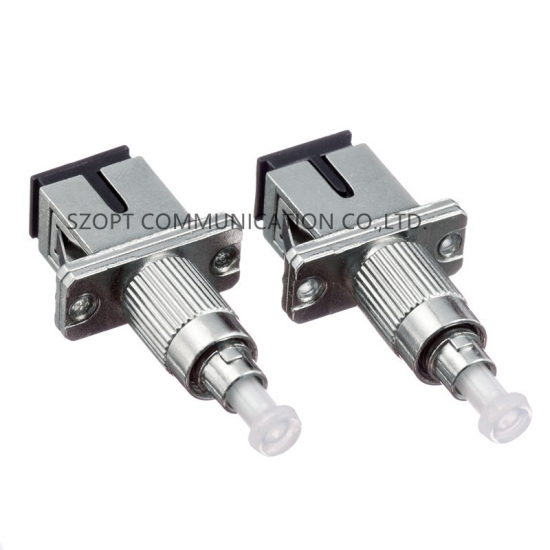

HYBRID ADAPTER FC(M)--ST(F)

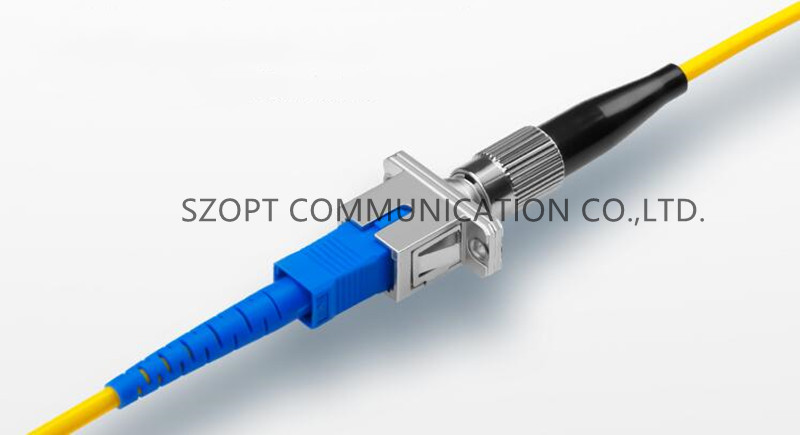

HYBRID ADAPTOR SC-FC

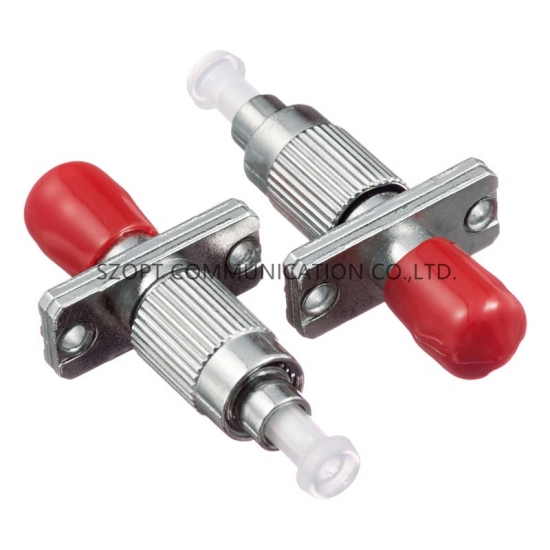

HYBRID ADAPTER FC-ST


workshop


fiber adapters ready to ship


Application:

LAN

Fiber Optic Transmission System

CATV Network

Telecommunication Instruments


Feature:

Compact design

Low insertion loss

Durability(Recycles):500

High Reliability and Stability


Package:


25pcs per blister box,then put into a carton box.


Specification:

Parameter

Unit

SM-UPC

SM-APC

MM

Insertion Loss (Typical)

dB

 ≤0.2

 ≤0.2

 ≤0.2

Return Loss

≥50

≥60

≥35

Exchangeability

≤0.2

Repeatability

≤0.2

Durability

 Times

>1000

Plug and unplug force(g/f)

G

200-600

Operating Temperature

°C

-40~75

Storage Temperature

-40~85
