Fiber Adapter LC UPC APC Simplex Duplex Quad SM Multimode OM3 OM4 OM5

Fiber Adapter LC UPC APC Simplex Duplex Quad SM Multimode OM3 OM4 OM5

Fiber Adapters (Mating Sleeve Fiber Adapter or Standard Fiber Adapter or Bulkhead Type Fiber Adapter) also called fiber adaptors,are used to link optical cables or device. Usually they are female to female,or female to male. SZOPT’s fiber adapters are mainly with ceramic sleeves, but phosphor bronze sleeve is an option for some special requirement.

  • Payment:

    T/T,L/C,WU,etc.
  • Product origin:

    CN
  • Color:

    Blue,Green,Beige,Aqua,Magenta or custom.
  • Min order:

    10
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    2-10 days
  • Product Details

Fiber Adapter LC UPC APC Simplex Duplex Quad SM Multimode OM3 OM4 OM5

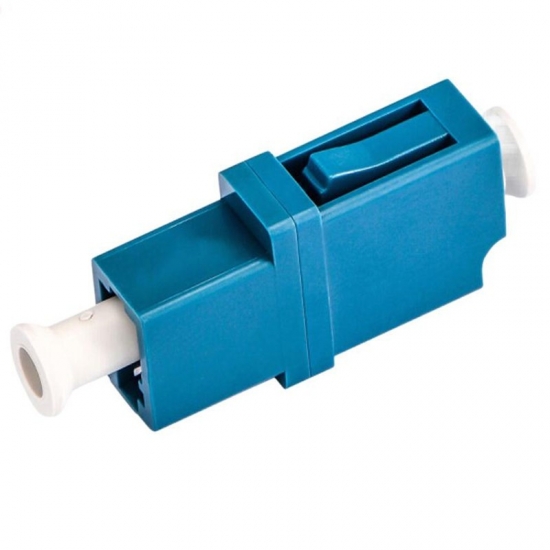

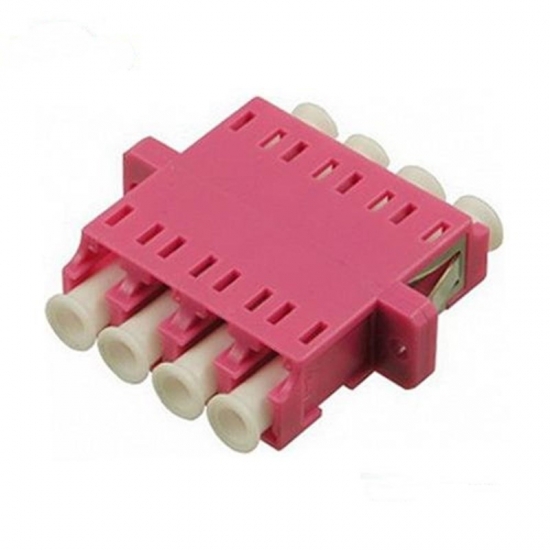

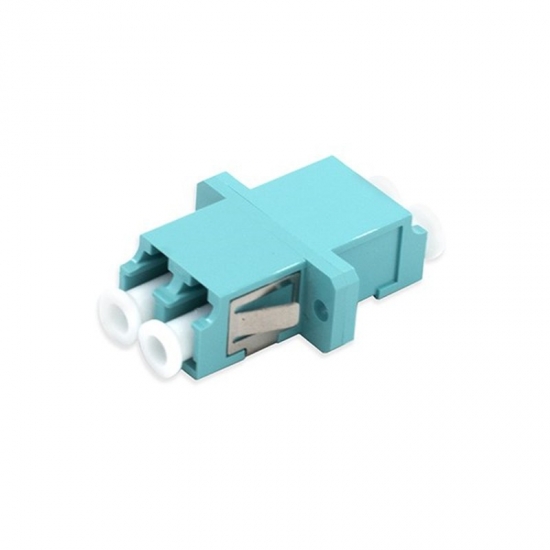

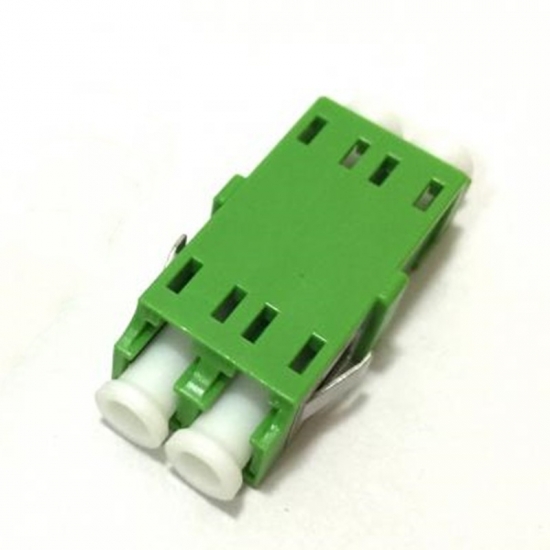

Fiber Adapter LC features providing the connection between LC Patchcord with LC patchcord, LC adapters can be with plastic or metal housing, there are different colors for plastic housing: blue for single mode UPC, green for single mode APC,beige for multimode PC,aqua for multimode OM3,magenta for multimode OM4 and lime green for multimode OM5. They can be with or without flange in simplex,duplex or quad.Please reach us for details.


zirconia sleeve for fiber adapters

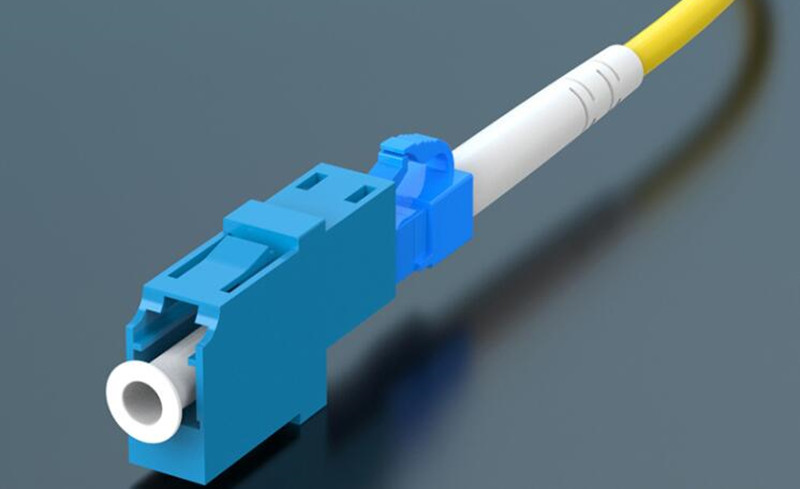

Connection with LC patch cord

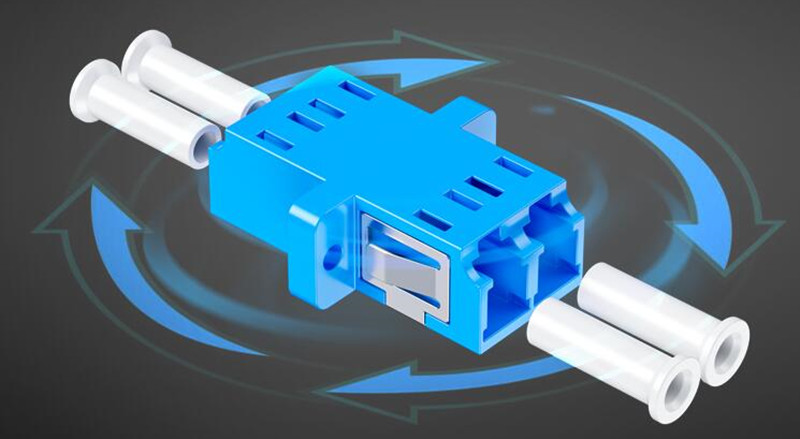

Fiber Adaptor LC Duplex

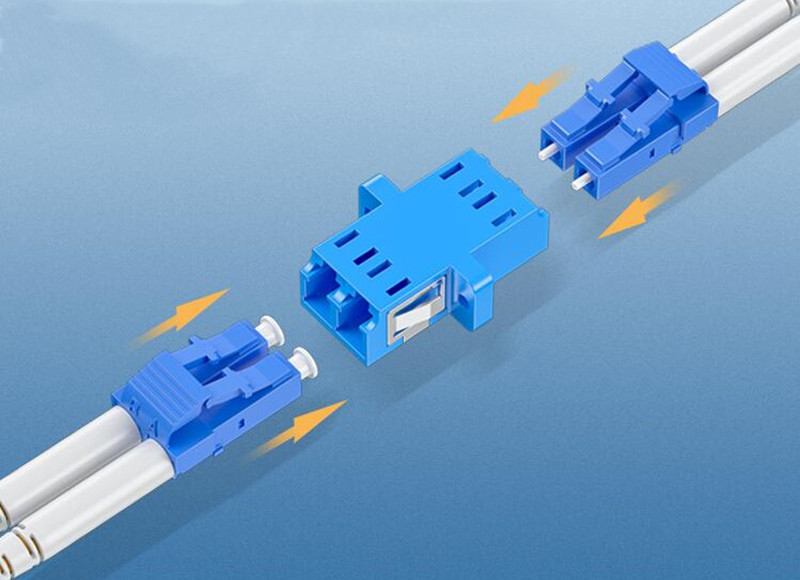

Connection with LC jumpers


workshop


fiber adapters ready to ship


Application:

LAN

Fiber Optic Transmission System

CATV Network

Telecommunication Instruments


Feature:

Compact design

Low insertion loss

Durability(Recycles):500

High Reliability and Stability


Package:


25pcs per blister box,then put into a carton box.


Specification:

Parameter

Unit

SM-UPC

SM-APC

MM

Insertion Loss (Typical)

dB

 ≤0.2

 ≤0.2

 ≤0.2

Return Loss

≥50

≥60

≥35

Exchangeability

≤0.2

Repeatability

≤0.2

Durability

 Times

>1000

Plug and unplug force(g/f)

G

200-600

Operating Temperature

°C

-40~75

Storage Temperature

-40~85
