Products
Home

Fiber Adapter

Fiber Adapter SC with Shutter UPC APC Simplex Duplex SM Multimode OM3 OM4 OM5

Fiber Adapter SC with Shutter UPC APC Simplex Duplex SM Multimode OM3 OM4 OM5

Fiber Adapters (Mating Sleeve Fiber Adapter or Standard Fiber Adapter or Bulkhead Type Fiber Adapter) also called fiber adaptors,are used to link optical cables or device. Usually they are female to female,or female to male. SZOPT’s fiber adapters are mainly with ceramic sleeves, but phosphor bronze sleeve is an option for some special requirement.

  • Payment:

    T/T,L/C,WU,etc.
  • Product origin:

    CN
  • Color:

    Blue,Green,Beige,Aqua,Magenta or custom.
  • Min order:

    10
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    2-10 days
  • Product Details

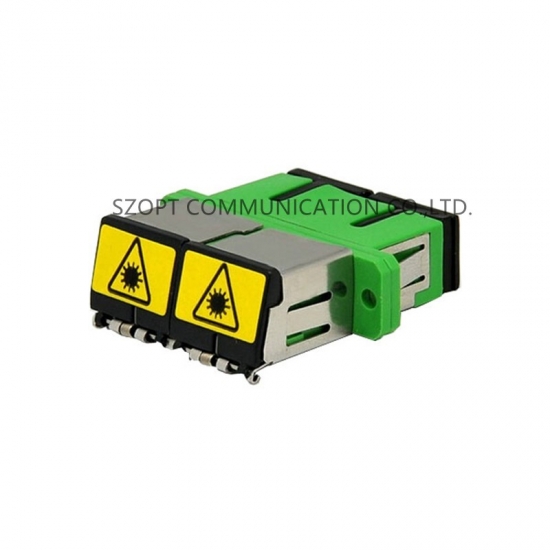

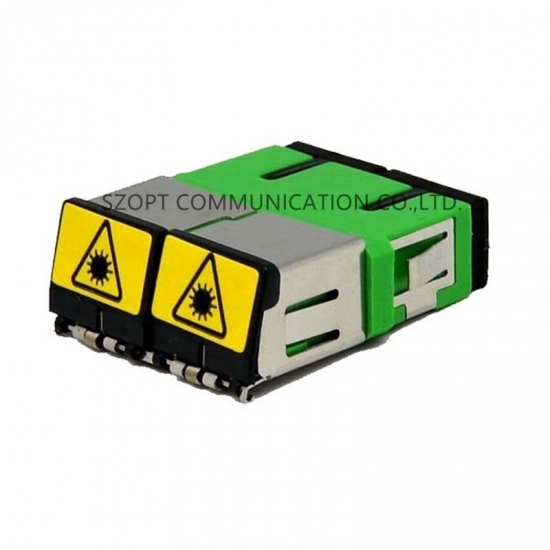

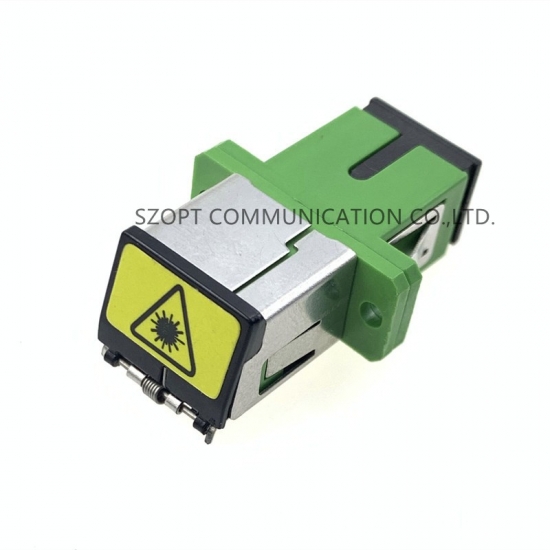

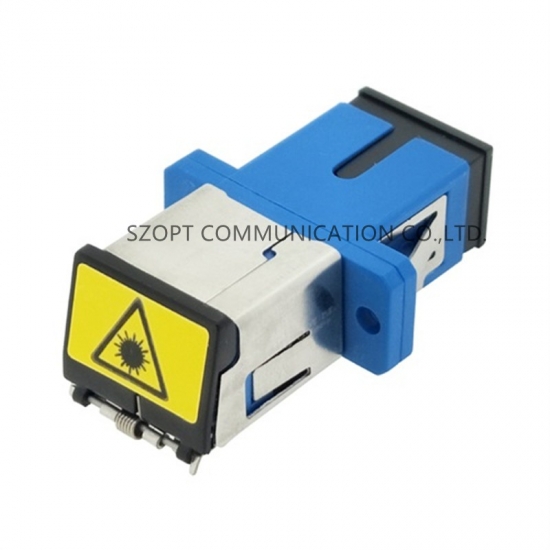

Fiber Adapter SC with Shutter UPC APC Simplex Duplex SM Multimode OM3 OM4 OM5

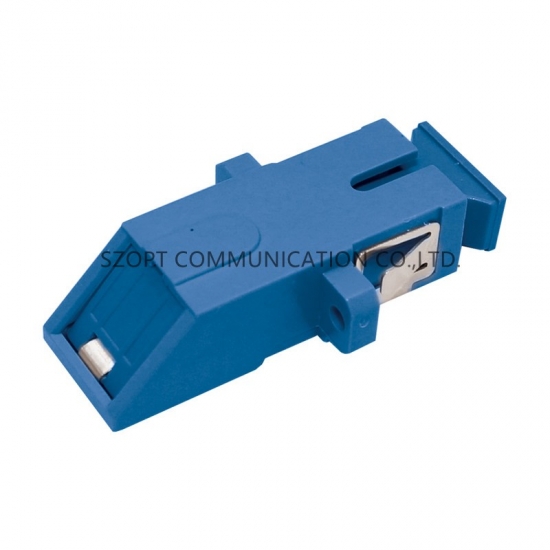

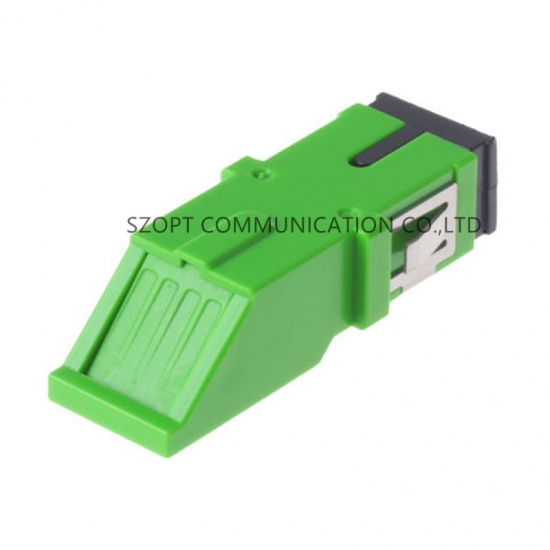

Fiber adapters with shutters are usually available for LC and SC types with or without flanges. They are available in two versions, one is integrated build in type , the other is with removable shutter to meet flexible installation requirement, and avoids laser beam hurting.SZOPT offers a comprehensive range of fiber adapters with shutters to meet your fiber service.Please reach us for details.


Quality zirconia sleeve for fiber adapters

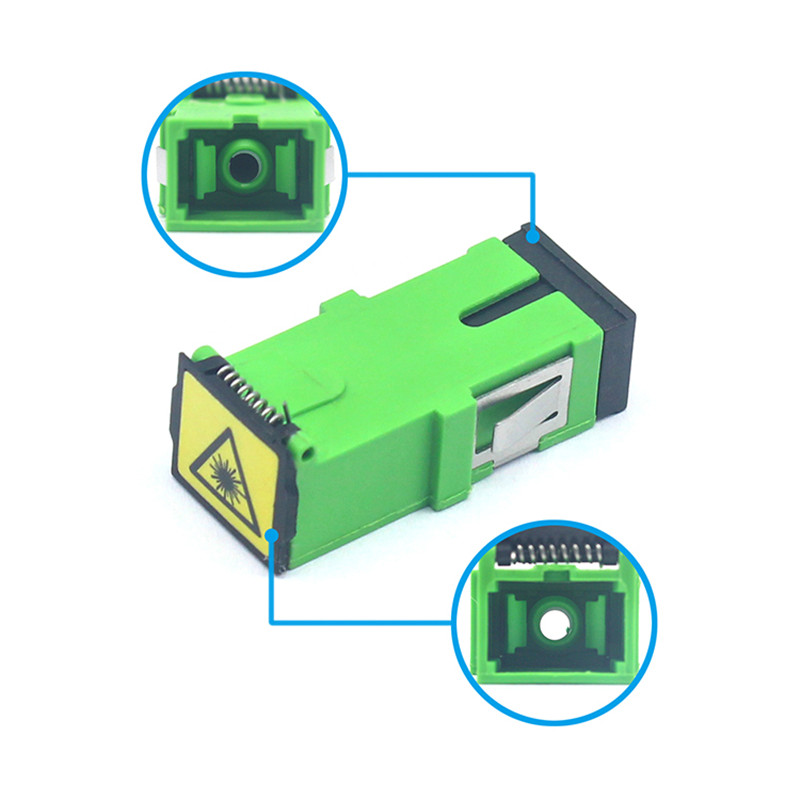

Shutter Adapter Structure

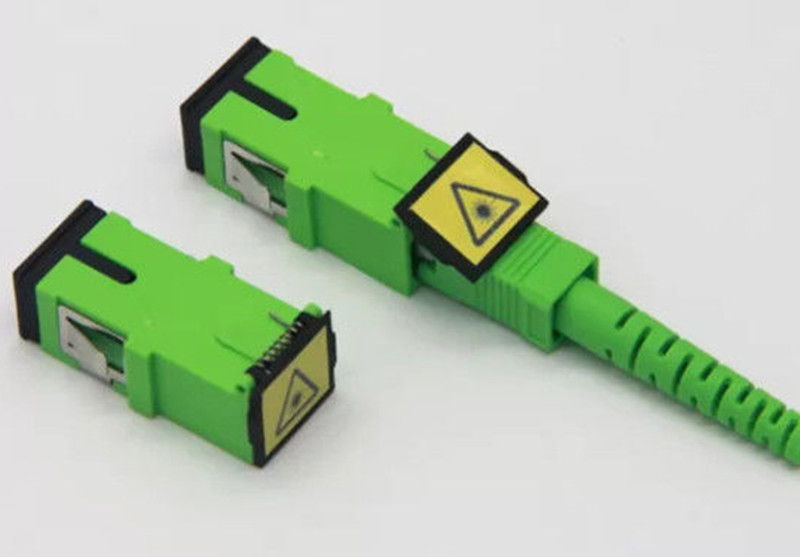

Connection with patch cords


workshop

package of fiber adapters

fiber adapters ready to ship


Application:

LAN

Fiber Optic Transmission System

CATV Network

Telecommunication Instruments


Feature:

Compact design

Low insertion loss

Durability(Recycles):500

High Reliability and Stability


Package:


25pcs per blister box,then put into a carton box.


Specification:

Parameter

Unit

SM-UPC

SM-APC

MM

Insertion Loss (Typical)

dB

 ≤0.2

 ≤0.2

 ≤0.2

Return Loss

≥50

≥60

≥35

Exchangeability

≤0.2

Repeatability

≤0.2

Durability

 Times

>1000

Plug and unplug force(g/f)

G

200-600

Operating Temperature

°C

-40~75

Storage Temperature

-40~85
