Fiber Adapter MPO MTP 8 12 16 24 Core SM Multimode OM3 OM4 OM5

Fiber Adapter MPO MTP 8 12 16 24 Core SM Multimode OM3 OM4 OM5

Fiber Adapters (Mating Sleeve Fiber Adapter or Standard Fiber Adapter or Bulkhead Type Fiber Adapter) also called fiber adaptors,are used to link optical cables or device. Usually they are female to female,or female to male. SZOPT’s fiber adapters are mainly with ceramic sleeves, but phosphor bronze sleeve is an option for some special requirement.

  • Payment:

    T/T,L/C,WU,etc.
  • Product origin:

    CN
  • Color:

    Plastic
  • Min order:

    10
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    2-10 days
  • Product Details

Fiber Adapter MPO MTP 8 12 16 24 Core SM Multimode OM3 OM4 OM5


Fiber Adapter MPO/MTP features providing the connection between MPO/MTP Trunk Cable with MPO/MTP Trunk Cable, MPO/MTP adapters are usually plastic housing, there can be different colors for MPO/MTP housing.Please reach us for details.


zirconia sleeve for fiber adapters

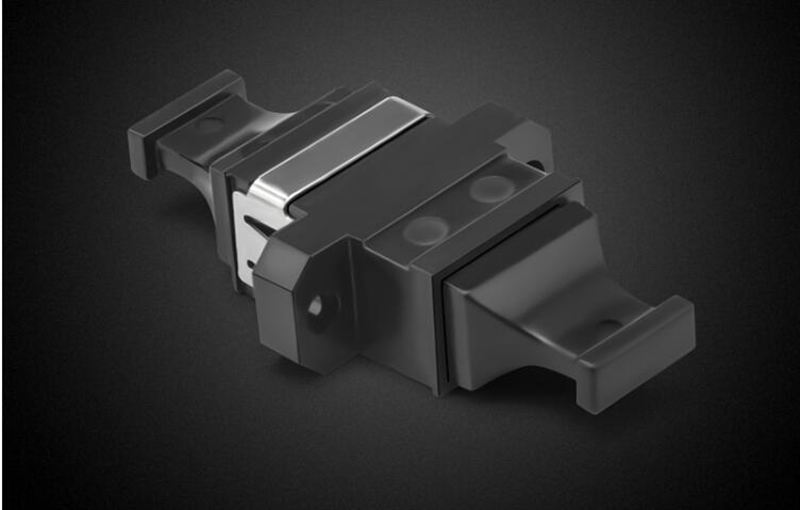

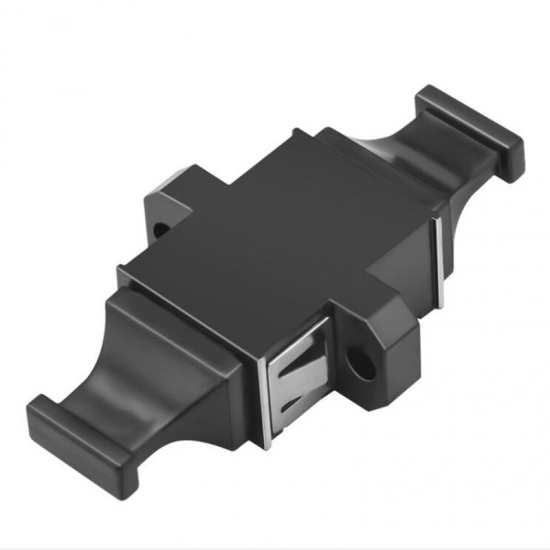

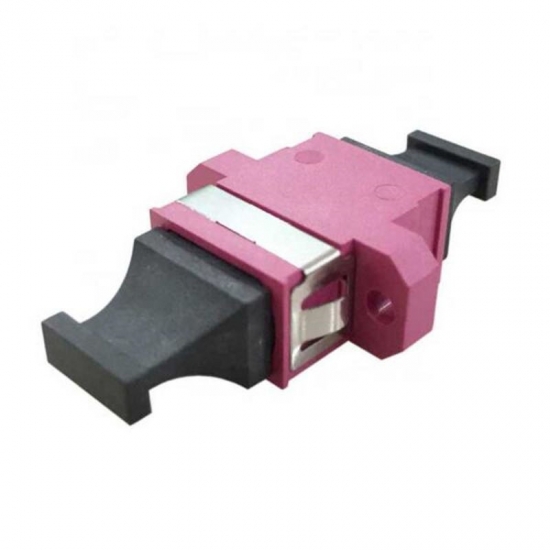

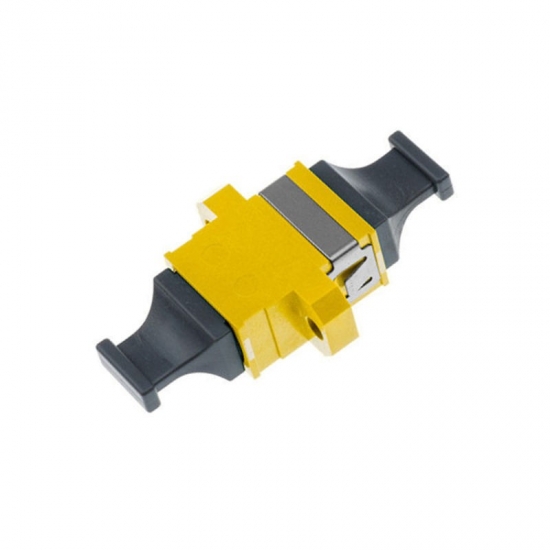

mpo mtp fiber adaptor

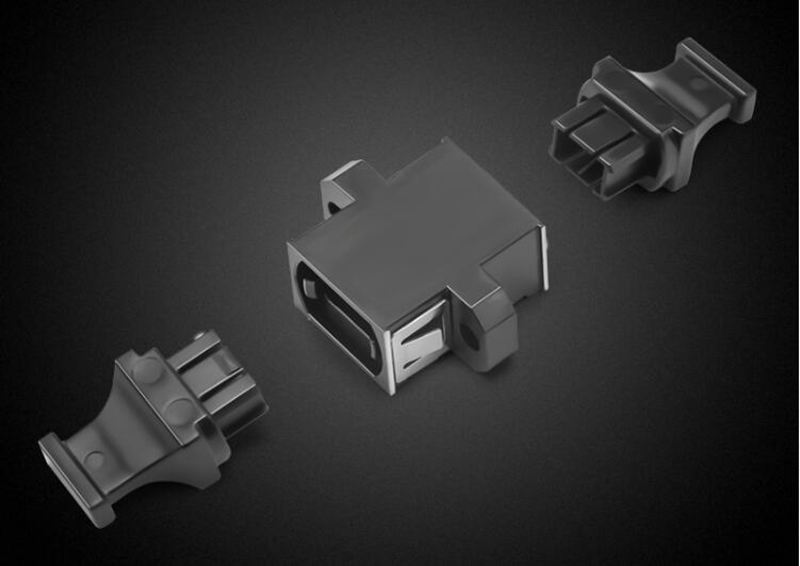

mpo mtp fiber adapters with dust cap

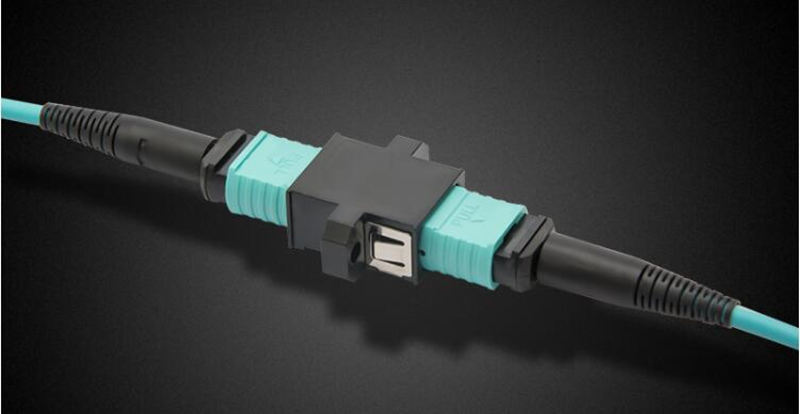

mpo mtp fiber adapter mating with mpo mtp trunk cable


workshop


fiber adapters ready to ship


Application:

LAN

Fiber Optic Transmission System

CATV Network

Telecommunication Instruments


Feature:

Compact design

Low insertion loss

Durability(Recycles):500

High Reliability and Stability


Package:


25pcs per blister box,then put into a carton box.


Specification:

Parameter

Unit

SM-UPC

SM-APC

MM

Insertion Loss (Typical)

dB

 ≤0.2

 ≤0.2

 ≤0.2

Return Loss

≥50

≥60

≥35

Exchangeability

≤0.2

Repeatability

≤0.2

Durability

 Times

>1000

Plug and unplug force(g/f)

G

200-600

Operating Temperature

°C

-40~75

Storage Temperature

-40~85
