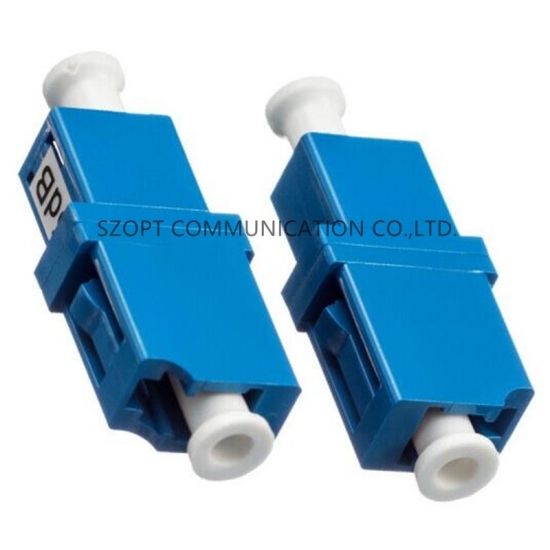

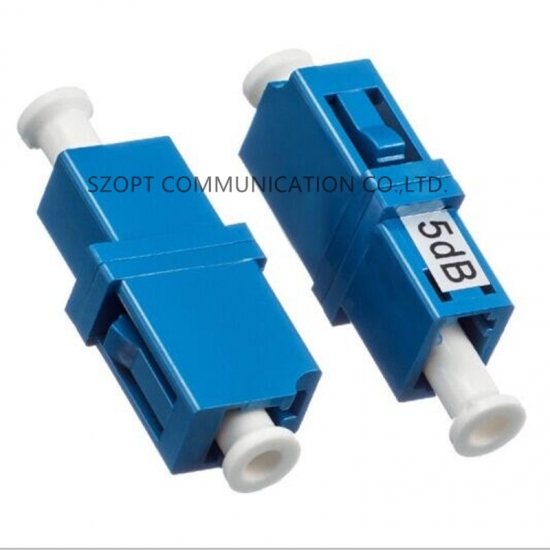

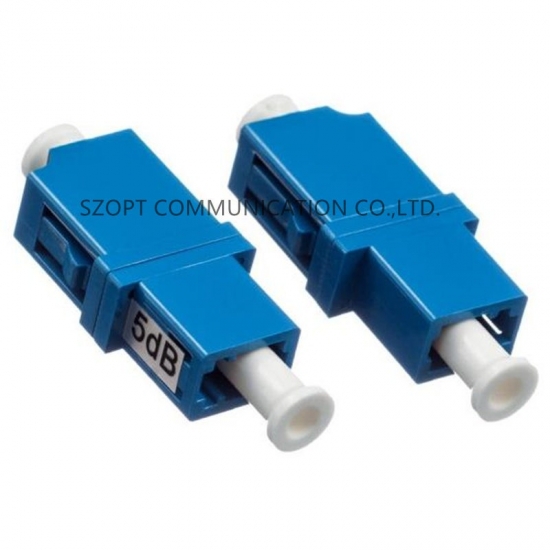

LC Adapter Type Fiber Optical Fixed Attenuator 1dB 2dB 3dB 5dB 10dB 15dB 20dB 25dB 30dB

LC Adapter Type Fiber Optical Fixed Attenuator 1dB 2dB 3dB 5dB 10dB 15dB 20dB 25dB 30dB

Adapter type fixed attenuator is the female to female fixed fiber optic attenuator,whichutilizes the air gap between two connectors to achieve the optical attenuation. Fixed adapter type attenuator is simple, low-cost and compact. It is recommended for use where return loss is not a concern nor is absolute attenuation value.

  • Payment:

    T/T,L/C,WU,etc.
  • Product origin:

    CN
  • Color:

    Blue or custom
  • Goods_stock:

    10
  • Min order:

    10
  • Shipping port:

    Shenzhen,HongKong.
  • Lead Time:

    2-7 days.
  • Product Details

LC Adapter Type Fiber Optical Fixed Attenuator 1dB 2dB 3dB 5dB 10dB 15dB 20dB 25dB 30dB


SZOPT’s fixed adapter type optical attenuators SC/LC/FC/ST feature high power endurance and low back reflection. They feature all fiber construction easy to install, available for the panel. Fixed adapter type optical attenuators are widely used in ODF, fiber transmission equipment and instrument etc.Please reach us for details.

SC OPTICAL ATTENUATOR APPLIANCE


Application:

-Fiber optical distributing frame
-Fiber optical network system
-High speed fiber optical transmission system
-CATV system
-Long distance DWDM system


Feature:

-High return loss
-Simple structure
-Max operation power(1W)
-Low wavelength relativity
-Low polarization related loss


Package:

Each in a PE bag,finally put in a carton box.


Specification:



Parameter

Specification

Type (nm)

1310

1550

1310/1550

850/1300

Wavelength (nm)

1310 ±50

1550 ±50

1260- 1650

850/1310 ±40

Attenuation Range (dB)

0.8-60

0.8 ~ 60

0.8〜60

0.8 ~ 60

Original Loss (dB)

≤0.8

≤0.8

≤0.8

≤0.8

Return Loss (dB)

≥50

≥30

Fiber Type

SMF-28e

50/125 or 62.5/125MM

PDL (dB)

≤0.15

Operating Temperature (°C)

0~+70

Storage Temperature (°C)

-40 ~ +85




Package:

Each piece in a small PE bag,then put into a bigger carton box.
