Indoor Optical Fiber and Power Hybrid Cable

Indoor Optical Fiber and Power Hybrid Cable

Indoor Hybrid Cable is for indoor installations that utilize a centralized power supply to remote power and devices, thus eliminates the need to provide local AC power to each location.The two copper wires provide power from a centralized power supply to end devices while fiber optic elements provide bi-directional data paths through the cable.





  • Payment:

    T/T,L/C,WU,custom
  • Product origin:

    CN
  • Color:

    Black
  • Shipping port:

    Shenzhen/HK
  • Lead Time:

    3-10 days
  • Product Details

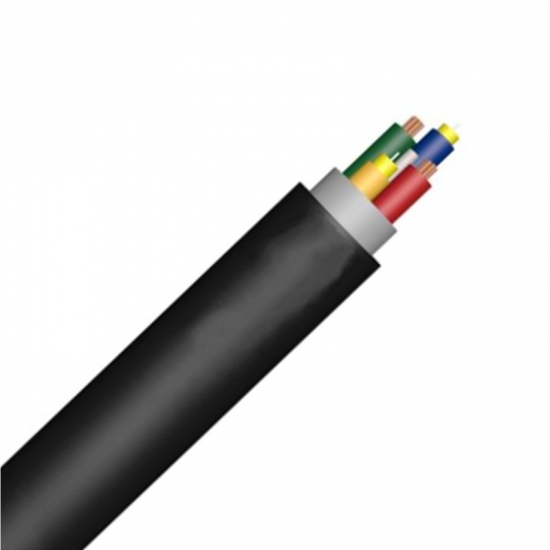

Indoor Optical Fiber and Power Hybrid Cable



Indoor Hybrid cable with optical fiber and copper conductors designed for applications where the distance or  power requirements of the end device exceed the limits of Power over Ethernet (PoE, PoE+). Customize the cable to consist of 1 to 24 2 mm interconnect simplexes (or duplexes) and two (or four) wet location PVC insulated 12 or 16 AWG stranded copper conductors. The core is surrounded by water-blocking glass strength yarns and a sunlight resistant black jacket.Any further inquiry,please contact SZOPT.

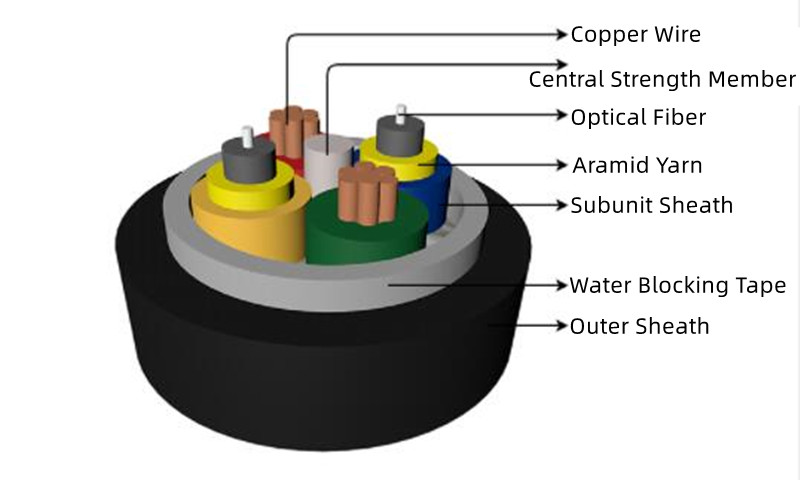

Indoor Hybrid Cable



OPLC Cable Deployment


Application:

5G Base Station;

Security Monitoring,park all optical network.



Feature:

Good mechanical and environmental characteristics;

Good optical performance;

Dual function of grounding wire&communication optic cable;

Eliminating the cost of repeated erection & maintenance.



Package:

1km/2km/3km per drum or custom.


Mechanical Characteristics:

Bending Radius Dynamic(mm)

10D

Bending Radius Static(mm)

 20D

Tensile Strength Short Term(N/100mm2)

800

Tensile Strength Long Term(N/100mm2)

400

Crush Resistance Short Term(N)

1000

Operating Temperature

-15℃~+70℃(Electric Wire)

-20℃~+60℃(Other Materials)


Optical Characteristics:



G652D

G657A1

G657A2

G657B3

G.655

62.5/125

50/125


Attenuation
(+20℃)


@850nm






≤3.5dB/km

@1300nm






≤1.5dB/km

@1310nm

≤0.45dB/km

≤0.40dB/km

≤0.45dB/km

≤0.50dB/km



@1550nm

≤0.30dB/km

≤0.50dB/km




Bandwidth
(Class A)


@850






≥200MHZ·km

≥500MHZ·km

@1300






≥500MHZ·km

≥500MHZ·km

Numerical Aperture







0.275±0.015NA

0.200±0.015NA

Cut-off Wavelength


≤1260nm


≤1480nm
