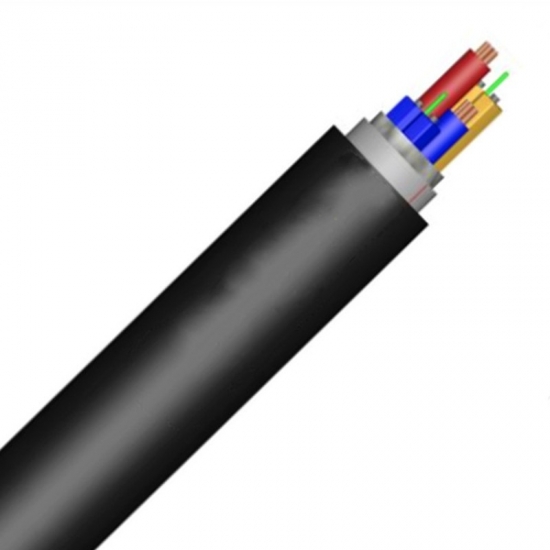

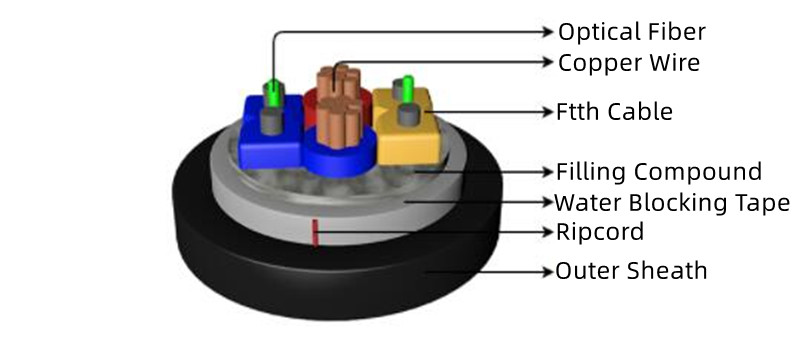

5G Optical Fiber and Power Hybrid Cable

OPGW is designed to replace traditional static,shield,ground cables in overhead transmission lines，it’s of additional telecommunications purposes because of containing optical fibers inside.

OPPC is a type of power composite cable that combines optical fiber unit and traditional phase structure in the wire, it makes full use of its own line power system resources, particularly the power system resources, particularly the power distribution network system, to avoid conflict with the outside world in aspects such as frequency resources, routing coordination, electromagnetic compatibility, which gives it dual functions of power transmission and communication.

It's a type of photoelectric composite cable for low voltage power line,and communication optical cable.With PON(passive optical network) technology,it realizes FTTH residential users’ electricity information collection business carrying information intranet,and information outer network “ Network convergance” businessmeets the demands of smart grid informatization,automation and interaction.

Indoor Hybrid Cable is for indoor installations that utilize a centralized power supply to remote power and devices, thus eliminates the need to provide local AC power to each location.The two copper wires provide power from a centralized power supply to end devices while fiber optic elements provide bi-directional data paths through the cable.

Outdoor Hybrid Cable is for outdoor installations that utilize a centralized power supply to remote power and devices, thus eliminates the need to provide local AC power to each location.The two copper wires provide power from a centralized power supply to end devices while fiber optic elements provide bi-directional data paths through the cable.

1000BASE-ZXC SFP 1550nm 160km DOM LC SMF Transceiver is designed for use in 100GBASE Ethernet and 4x28G OTN client interfaces throughput up to 160km over single mode fiber(SMF) using a wavelength of 1550nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and OTU4 4I1-9D1F standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G Ethernet, 112G OTN OTU4, telecom, service provider applications and 5G wireless network.

1000BASE-ZX SFP 1550nm 80km DOM LC SMF Transceiver Module is designed for use in 100GBASE Ethernet and 4x28G OTN client interfaces throughput up to 80km over single mode fiber(SMF) using a wavelength of 1550nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and OTU4 4I1-9D1F standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G Ethernet, 112G OTN OTU4, telecom, service provider applications and 5G wireless network.

FTTH Drop Cable Fiber Optic Patch Cord SC-SC has SC/UPC SC/APC connectors on both ends,with PVC or LSZH jacket in black(for indoor/outdoor) or white(for indoor only),the cable diameter is 2.0x3.0mm,2.0x3.5mm,2.0x5.0mm,etc.

Fiber Optic Attenuator is one kind of optical passive device which is used to debug the performance of the optical power in the optical communication system,debugging fiber optic instrument calibration correction, optical signal attenuation.And used for the attenuation of the input optical power, avoid optical receiver distortion due to input optical power powerful. The fixed fiber optic attenuator can achieve the dual function of adapter and attenuators.

4/8/16/32/64/128 Core PLC splitter distribution box is used as a termination point for the feeder cable to connect with optical splitter in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Fiber Adapters (Mating Sleeve Fiber Adapter or Standard Fiber Adapter or Bulkhead Type Fiber Adapter) also called fiber adaptors,are used to link optical cables or device. Usually they are female to female,or female to male. SZOPT’s fiber adapters are mainly with ceramic sleeves, but phosphor bronze sleeve is an option for some special requirement.

1000BASE-EZX SFP 1550nm 100km DOM LC SMF Transceiver Module is designed for use in 100GBASE Ethernet and 4x28G OTN client interfaces throughput up to 100km over single mode fiber(SMF) using a wavelength of 1550nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and OTU4 4I1-9D1F standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G Ethernet, 112G OTN OTU4, telecom, service provider applications and 5G wireless network.
