Categories

New Products

SFTP Cat6 Cat7 Cat8 Lan Cable

SFTP Cat5 Cat6 Cat7 Lan Cable is a popular SFTP network cable or ethernet cable for lan field with full category,please reach us for details.

Payment:
T/T,L/C,WU,etc.
Product origin:
CN
Color:
White/grey/Orange/Yellow/Black or custom
Shipping port:
Shenzhen/HongKong
Lead Time:
2-10 days

Product Details

SFTP Cat6 Cat7 Cat8 Lan Cable

We have a complete strict quality control system,from raw material,production process,inspection,packing,etc. to ensure the top quality of the finished products reach 100% qualification before exporting . We never let any defect out of factory.

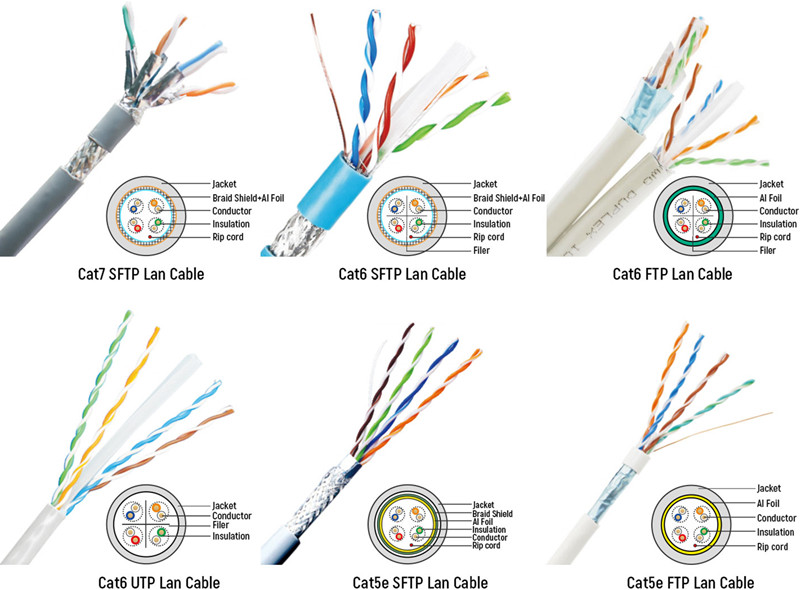

diagram of lan cable

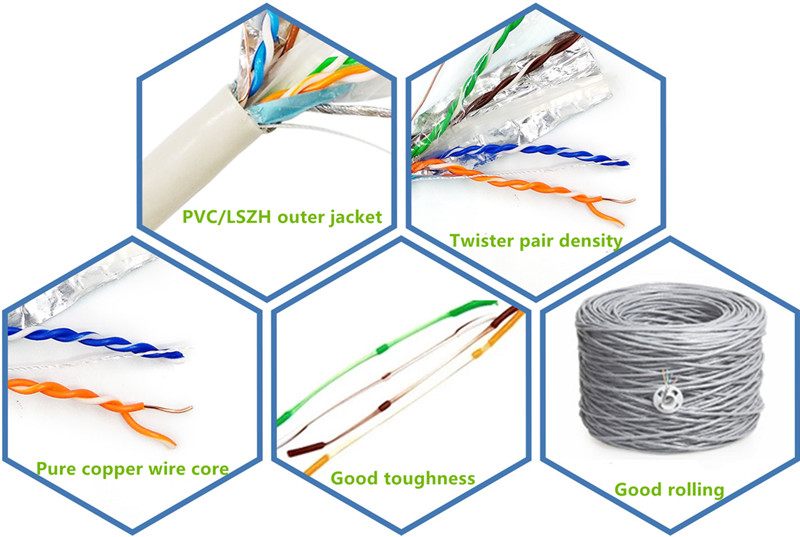

advantage of our lan cable

Description:
CCA or 24AWG Soft Plain Copper;
Eco-friendly,pollution-free and new materials selected.Promise new material only;
Solid HDPE insulation;
High-temperature resistance,long working life.

Applications:
Computer Network Cabling System;
Broadband Network Communication;
Ethernet Network;
Audio and Data Transmission System.

Electronic Characteristics

Impedance: 100± 15(ohms).
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S

Transmission Performance：

Frequency	Attenuation	Next	ACR	Return Loss	PS-Next	PS-ACR	Elfext
Mhz	dB/100m	dB	dB/100m	dB		dB/100m
Mhz	dB/100m	dB	dB/100m
1	2.1	100	98	27	97	95	90
4	3.6	100	96	30	97	93	84
10	5.5	100	95	30	97	92	80
16	7	98	91	30	95	88	78
20	7.8	97	89	30	94	86	74
31.25	10	95	85	30	92	82	68
62.5	14	92	78	30	89	75	60
100	18	90	72	26	87	69	64
155	22.5	88	66	25	85	63	60
200	25.5	87	62	25	84	59	58
250	28.7	86	57	23	83	54	56
300	31.6	85	53	20	82	50	54
600	45	82	37	19	79	34	48
750	50.5	82	32	17	79	29	42
900	55.9	82	26	16	79	23	40
1000	58.5	82	24	24	79	21	35

production line for lan cable

package for utp lan cables
