Cat5E Ethernet Patch Cable RJ45-RJ45 UTP STP/FTP,SFTP and SSTP

Cat5E Ethernet Patch Cable RJ45-RJ45 UTP STP/FTP,SFTP and SSTP

Ethernet patch cables are widely used for lan network,available cat5,cat5e,cat6,cat6a,cat7,cat7a,cat8,etc,with UTP,STP/FTP,SFTP,SSTP etc.shielding mode.Please check with us for details.

  • Payment:

    T/T,L/C,WU,etc.
  • Product origin:

    CN
  • Color:

    custom
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    2-10 days
  • Product Details

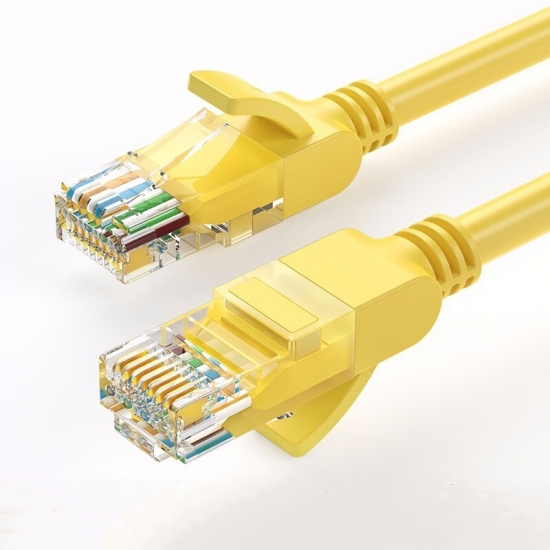

Cat5E Ethernet Patch Cable RJ45-RJ45 UTP STP/FTP,SFTP and SSTP


We have a complete strict quality control system,from raw material,production process,inspection,packing,etc. to ensure the top quality of the finished products reach 100% qualification before exporting . We never let any defect out of factory.

cat7 network patch cord

performance of our lan cable patchcord

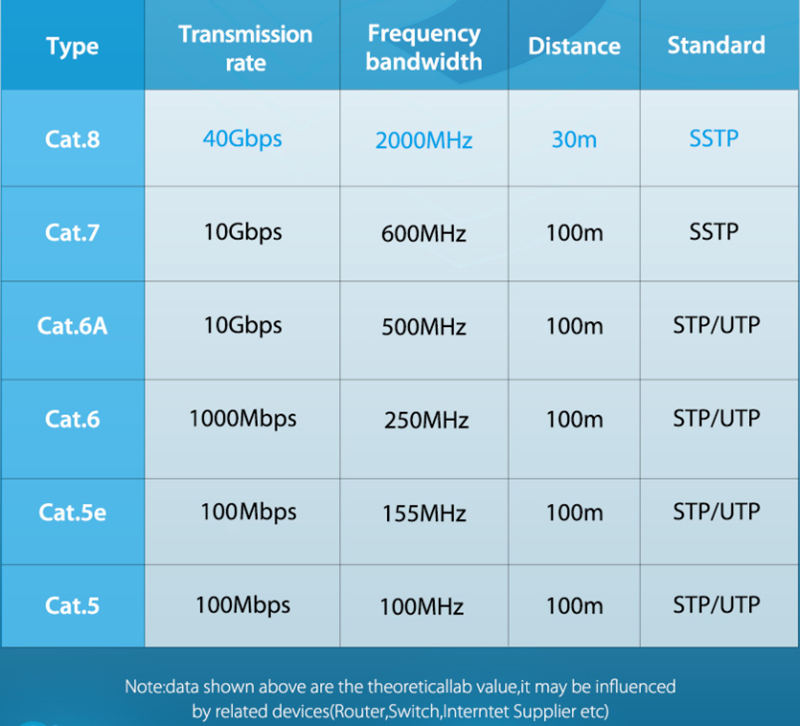

Internet access speed of different lan cables

wide compatibility

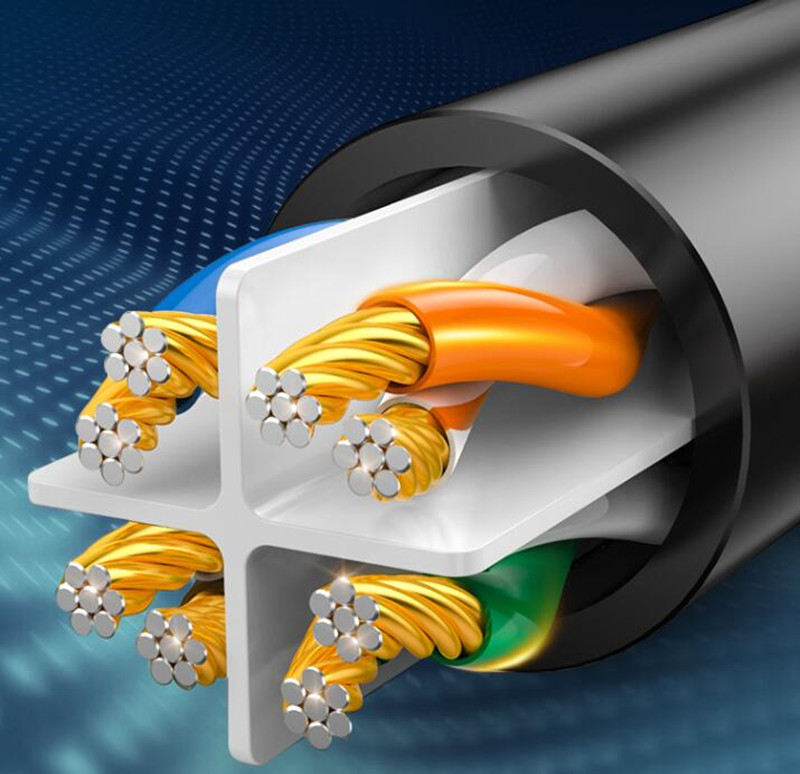

Inside structure of lan cable

Fast performance

Description:
CCA or 24AWG 25AWG 26AWG 27AWG 28AWG..32AWG Soft Plain Copper;
Eco-friendly,pollution-free and new materials selected.Promise new material only;
Solid HDPE insulation;
High-temperature resistance,long working life.


Applications:
Computer Network Cabling System;
Broadband Network Communication;
Ethernet Network;
Audio and Data Transmission System.


Electronic Characteristics

Impedance: 100± 15(ohms).
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S


production line for ethernet patch cords

Careful test of network patch cords



Carton package ready for ship
