UTP Cat5 Cat6 Cat7 Lan Cable

UTP Cat5 Cat6 Cat7 Lan Cable

UTP Cat5 Cat6 Cat7 Lan Cable is a popular UTP network cable or ethernet cable for lan field with full category,please reach us for details.

  • Payment:

    T/T,L/C,WU,etc.
  • Product origin:

    CN
  • Color:

    White/grey/Orange/Yellow/Black or custom
  • Shipping port:

    Shenzhen/HongKong
  • Lead Time:

    2-10 days
  • Product Details

UTP Cat5 Cat6 Cat7 Lan Cable


We have a complete strict quality control system,from raw material,production process,inspection,packing,etc. to ensure the top quality of the finished  products reach 100% qualification before exporting . We never let any defect out of factory.

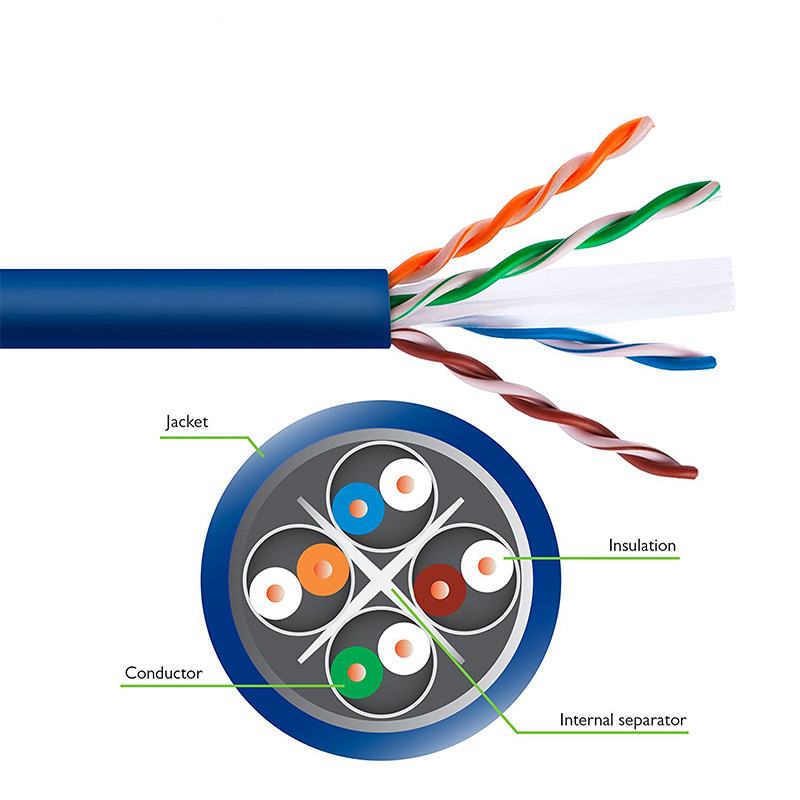

utp lan cables 4pairs

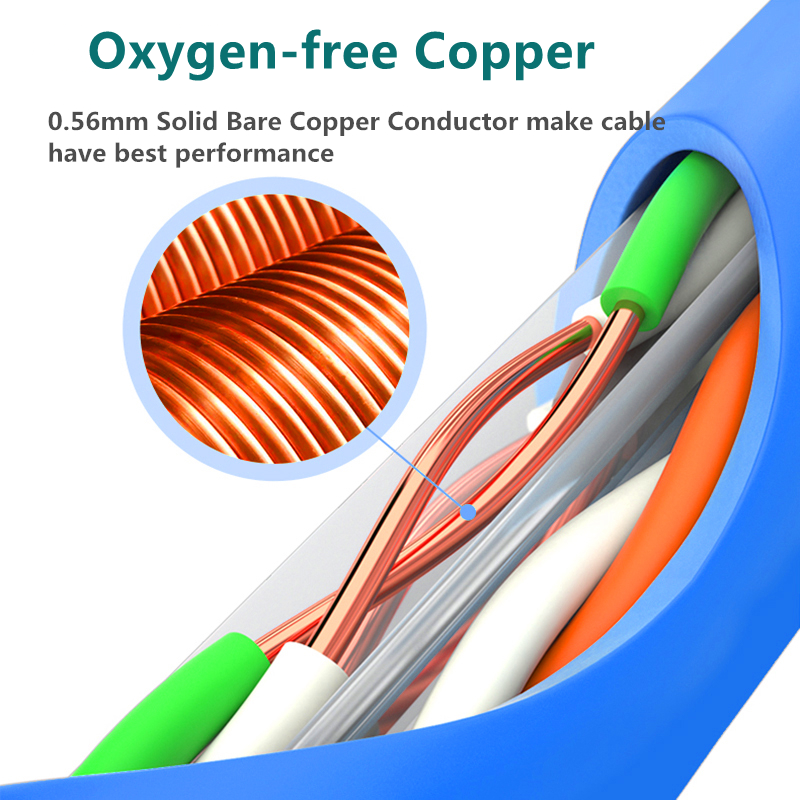

oxygen-free copper lan cable

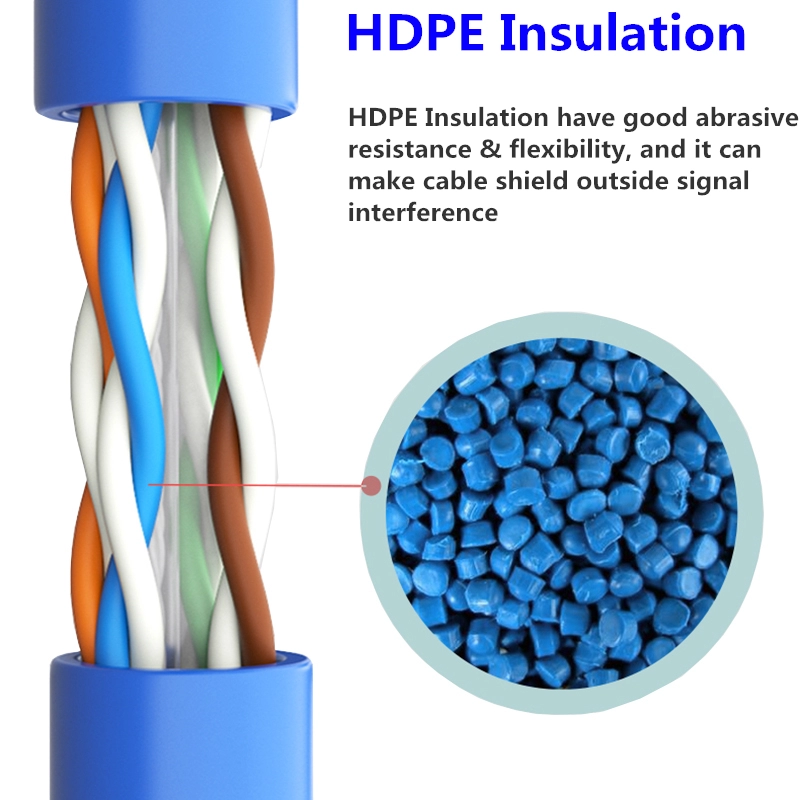

hdpu insulation of utp lan cable


Description:
CCA or 24AWG Soft Plain Copper;
Eco-friendly,pollution-free and new materials selected.Promise new material only;
Solid HDPE insulation;
High-temperature resistance,long working life.


Applications:
Computer Network Cabling System;
Broadband Network Communication;
Ethernet Network;
Audio and Data Transmission System.


Electronic Characteristics

Impedance: 100± 15(ohms).
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S


Transmission Performance:

Frequency

Impedance

SRL

Attenuation

Next

Next

Elfext

Elfext

Nominal

Mhz

ohm

dB

dB/100m

Worst Pair

Power Sum

Worst Pair

Power Sum

Velocity

dB

Propagation

0.772

100±15

19.4

18

67

64

66

63

0.65

1

20

2

65.3

62.3

63.8

60.8

4

23

4.1

56.3

53.3

51.7

48.7

8

24.5

5.8

51.8

48.8

45.7

42.7

10

25

6.5

50.3

47.3

43.8

40.8

16

25

8.2

47.3

44.3

39.7

36.7

20

25

9.3

45.8

42.8

37.7

34.7

25

24.3

10.4

44.3

41.3

35.8

32.8

31.25

23.6

11.7

42.9

39.9

33.9

30.9

62.5

21.5

17

38.4

35.4

27.8

24.8

100

20.1

22

35.3

32.3

23.8

20.8

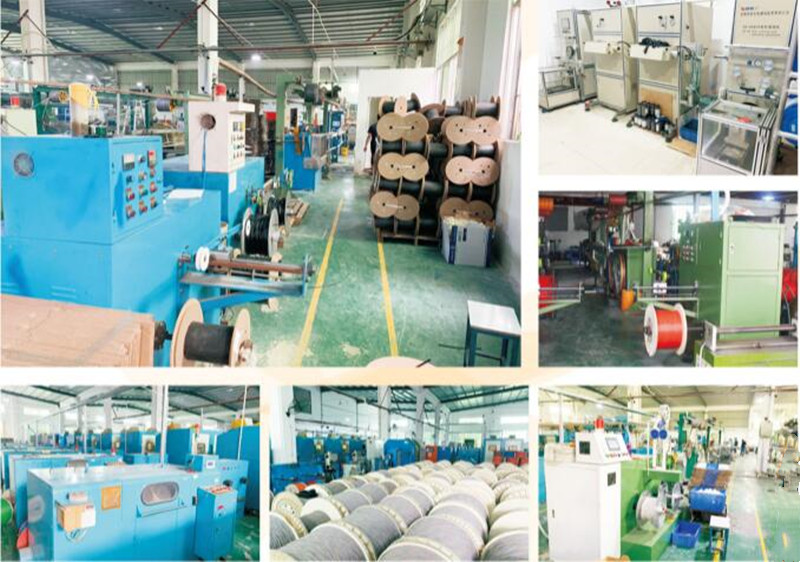

production line for lan cable

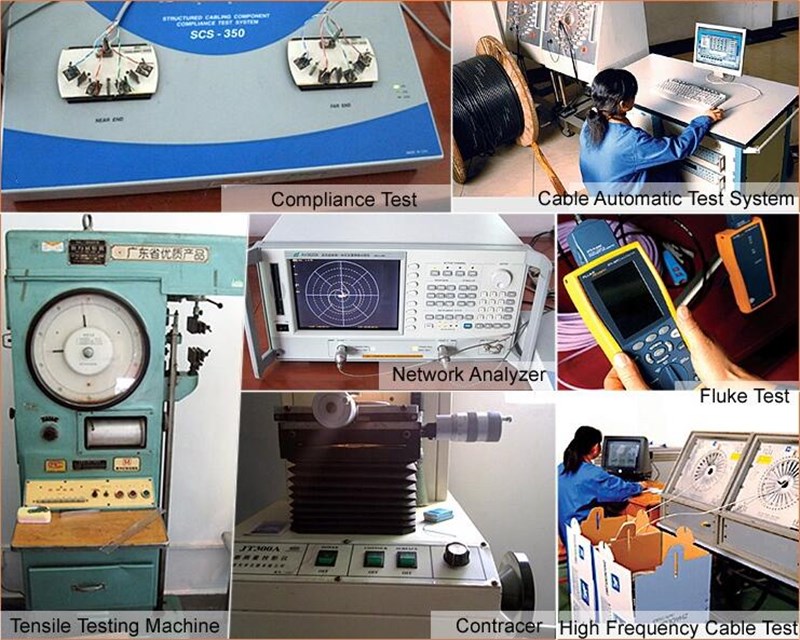

strict test for lan cables

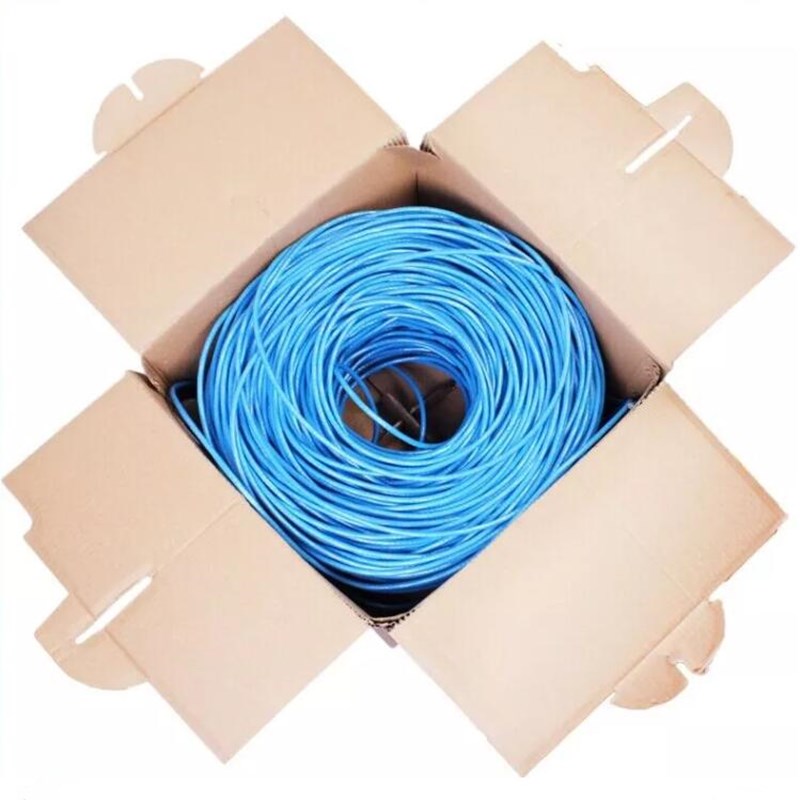

package for utp lan cables

Carton package ready for ship
