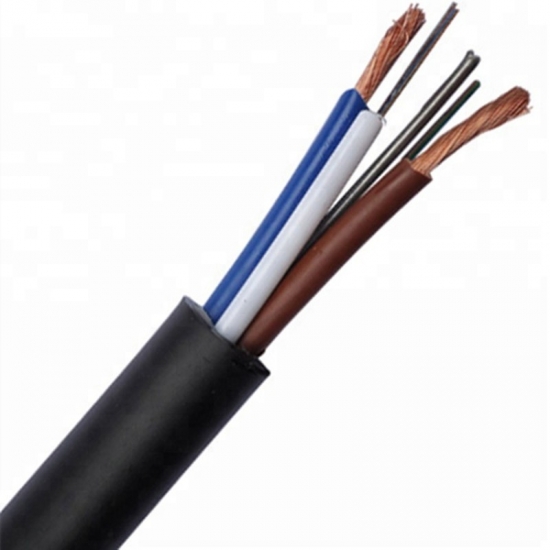

Optical Fiber Composition Low Voltage Electric OPLC Cable

It's a type of photoelectric composite cable for low voltage power line,and communication optical cable.With PON(passive optical network) technology,it realizes FTTH residential users’ electricity information collection business carrying information intranet,and information outer network “ Network convergance” businessmeets the demands of smart grid informatization,automation and interaction.

Payment:
T/T,L/C,WU,custom
Product origin:
CN
Color:
Black
Shipping port:
Shenzhen/HK
Lead Time:
3-10 days

Product Details

Optical Fiber Composition Low Voltage Electric OPLC Cable

OPLC hybrid cable integrates optical transmission and power copper cable, can solve broadband access problems, equipment power supply, transmission of emergency signals .etc, For further information,please reach SZOPT for details.

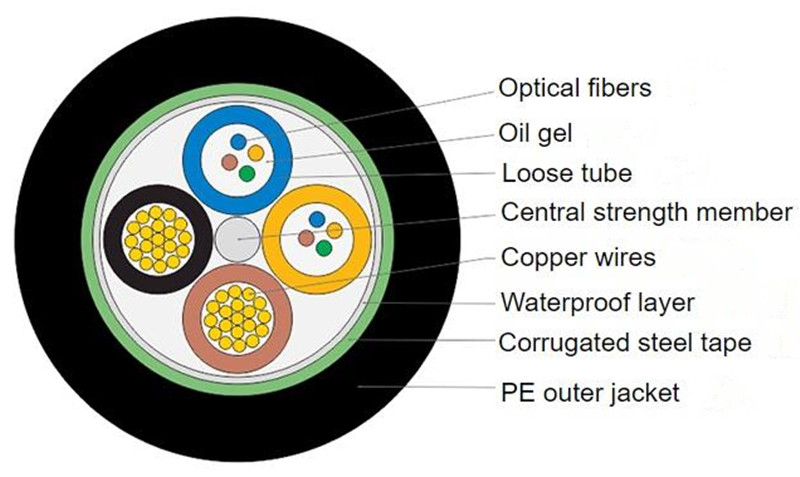

OPLC Section View

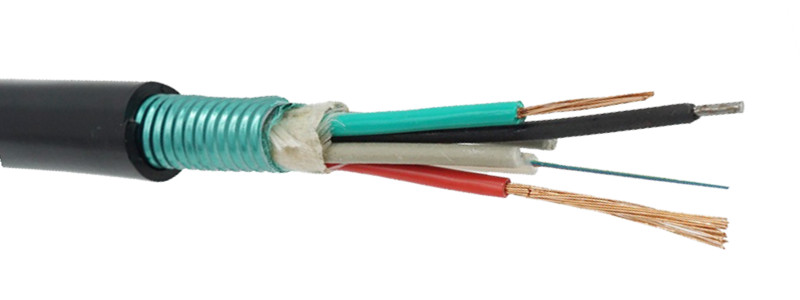

5G Hybrid Cable

OPLC Cable Deployment

Application:

Reconstruction of old power lines and low voltage level lines;

Coastal chemical industrial areas with heavy chemical pollution.

Feature:

Good mechanical and environmental characteristics;

Good optical performance;

Dual function of grounding wire&communication optic cable;

Eliminating the cost of repeated erection & maintenance.

Package:

1km/2km/3km per drum or custom.

Mechanical Characteristics:

Bending Radius Dynamic(mm)	30D
Bending Radius Static(mm)	20D
Tensile Strength Short Term(N/100mm²)	3000
Tensile Strength Long Term(N/100mm²)	1500
Crush Resistance Short Term(N)	1000
Operating Temperature	-15℃～+70℃(Electric Wire)
Operating Temperature	-40℃～+70℃(Other Materials)

Optical Characteristics:

		G652D	G657A1	G657A2	G657B3	G.655	62.5/125	50/125
Attenuation (+20℃)	@850nm						≤3.5dB/km
	@1300nm						≤1.5dB/km
	@1310nm	≤0.45dB/km		≤0.40dB/km	≤0.45dB/km	≤0.50dB/km
	@1550nm	≤0.30dB/km				≤0.50dB/km
Bandwidth （Class A）	@850						≥200MHZ·km	≥500MHZ·km
Bandwidth （Class A）	@1300						≥500MHZ·km	≥500MHZ·km
Numerical Aperture							0.275±0.015NA	0.200±0.015NA
Cut-off Wavelength		≤1260nm				≤1480nm
