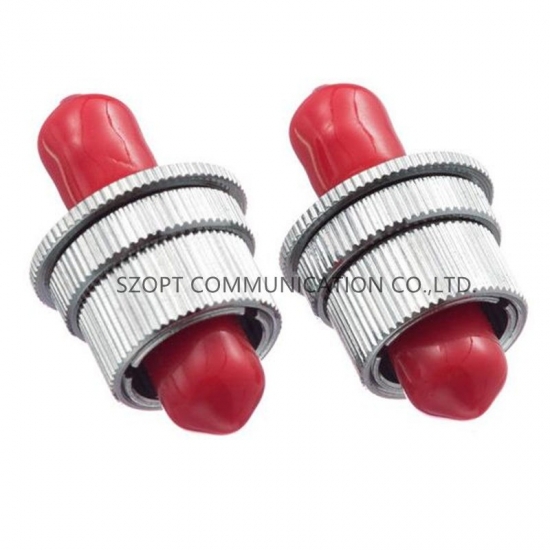

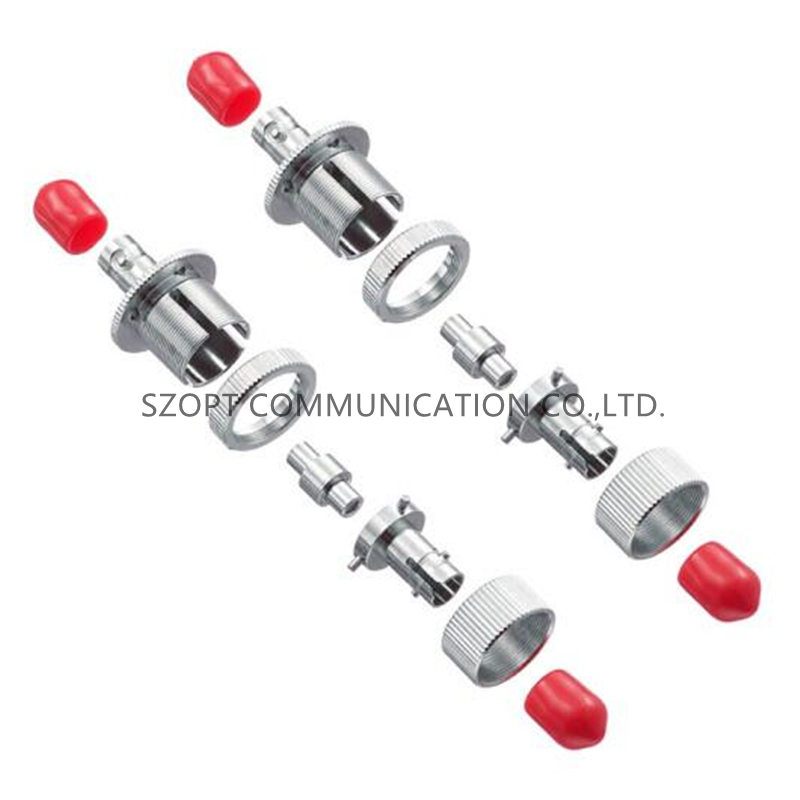

Variable Optical Attenuator VOA ST 0-60dB

Variable Optical Attenuator VOA ST 0-60dB

Variable optical attenuators,short as VOA, are used to permit dynamic control of optical power levels in a fiber. It can be applied to adjust power level of signal in the optical communication at the output of light sources, E/O converters and for the linear or dynamic range of power meter. Furthermore, they can the used in optical amplifier systems to balance the gain across the different operating wavelengths.


  • Payment:

    T/T,L/C,WU,etc.
  • Product origin:

    CN
  • Color:

    Metal
  • Goods_stock:

    10
  • Min order:

    10
  • Shipping port:

    Shenzhen,HongKong.
  • Lead Time:

    2-7 days.
  • Product Details

Variable Optical Attenuator VOA ST 0-60dB


SZOPT’s variable optical attenuator has the function that attenuation can be adjusted as request,which is much different to the fixed optical attenuator.There are two types of optical variable attenuators—these are known as the stepwise variable attenuator and the continuously variable attenuator. Please reach us for details.


Application:

-Fiber optical distributing frame
-Fiber optical network system
-High speed fiber optical transmission system
-CATV system
-Long distance DWDM system


Feature:

-High return loss
-Simple structure
-Max operation power(1W)
-Low wavelength relativity
-Low polarization related loss


Package:

Each in a PE bag,finally put in a carton box.


Specification:

Parameter

Specification

Type (nm)

1310

1550

1310/1550

850/1300

Wavelength (nm)

1310 ±50

1550 ±50

1260- 1650

850/1310 ±40

Attenuation Range (dB)

0.8-60

0.8 ~ 60

0.8 60

0.8 ~ 60

Original Loss (dB)

≤0.8

≤0.8

≤0.8

≤0.8

Return Loss (dB)

≥50

≥30

Fiber Type

SMF-28e

50/125 or 62.5/125MM

PDL (dB)

≤0.15

Operating Temperature (°C)

0~+70

Storage Temperature (°C)

-40 ~ +85



Package:

Each piece in a small PE bag,then put into a bigger carton box.
