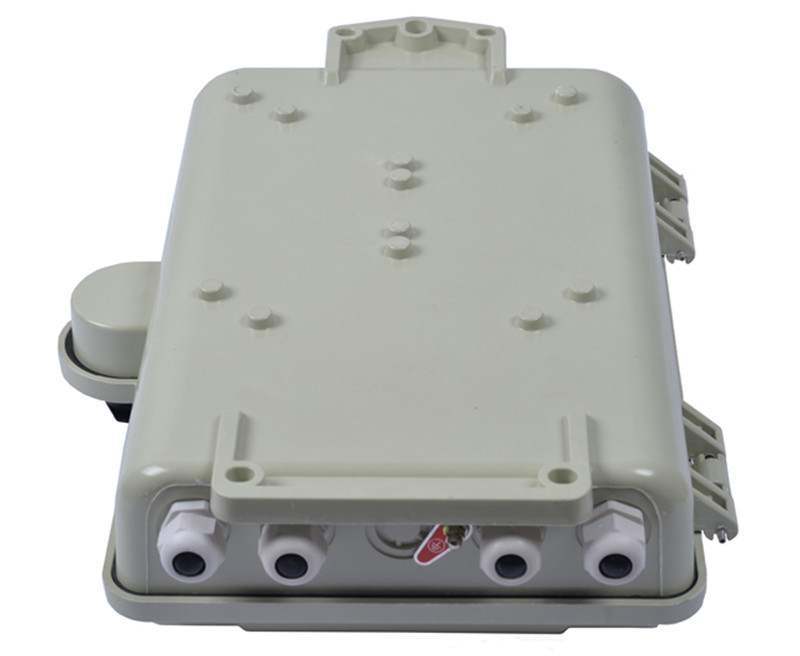

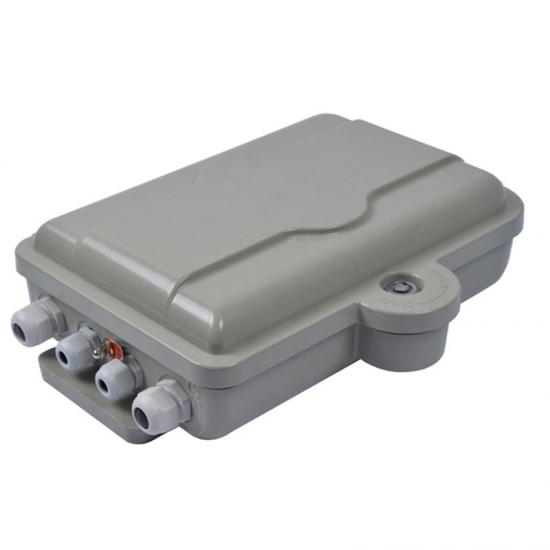

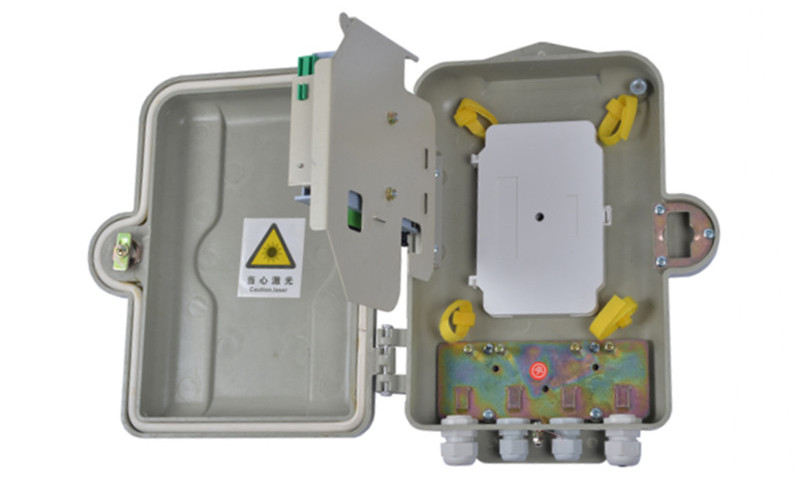

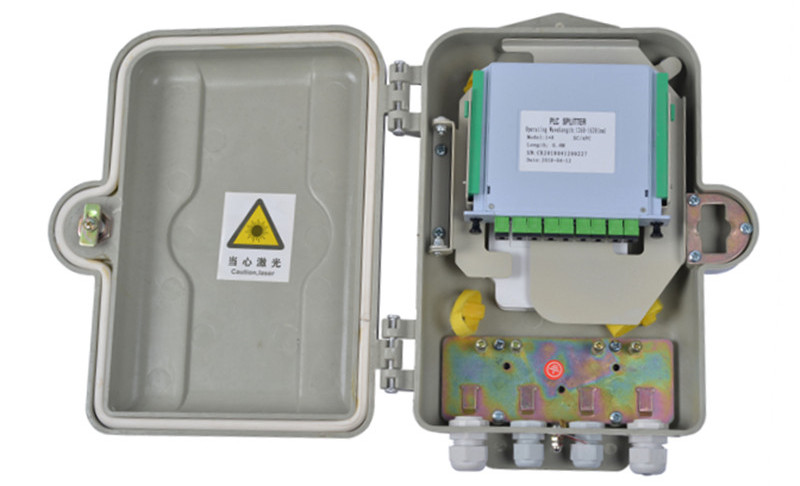

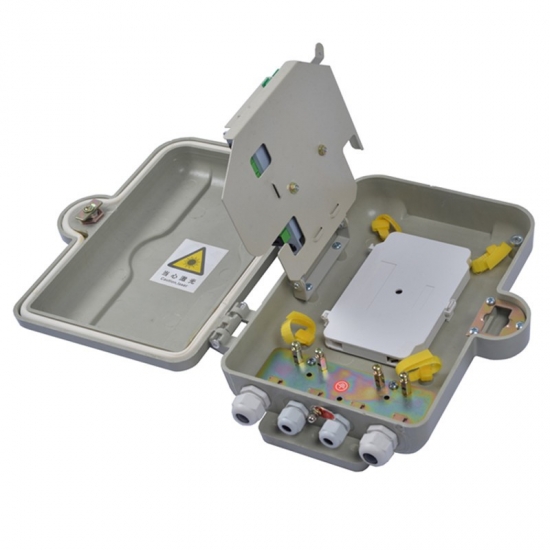

Outdoor Waterproof Fiber Optical Distribution Box SMC

SZOPT’s 19” 1U/2U/3U/4U fiber swing out patch panel are SC/FC/ST/LC port available ,12C/24C/48C/96C/144C/288C fibers with the cold rolled steel powder well coated,designed to fit standard 19” racks. These patch panels are ideal for high density LAN interconnect or cross-connect patching,providing a designated terminus for interrelated cabling deployments.

SZOPT’s 19” 1U/2U/3U/4U fiber fixed patch panel are SC/FC/ST/LC port available ,12C/24C/48C/96C/144C/288C fibers with the cold rolled steel powder well coated,designed to fit standard 19” racks. These patch panels are ideal for high density LAN interconnect or cross-connect patching,providing a designated terminus for interrelated cabling deployments.

ODF is the short term of Optical Distribution Frame, is a high-density, large-capacity design box with cold rolled steel sheet, reasonable distribution, easy to manage, install and operate.

ODF is the short term of Optical Distribution Frame, also called ODF unit box, is a high-density, large-capacity design box with cold rolled steel sheet, reasonable distribution, easy to manage, install and operate.

MPO/MTP Fiber Optic Cassette Box is usually the connection of trunk cable and the next MPO/MTP cassette in distribution area of MDA, IDA or HDA data centers. It could be installed 1pc or 2pcs of 0.9mm MPO/MTP-LC harness patch cord 12C inside.

MPO/MTP Fiber Optic Cassette Box is usually the connection of trunk cable and the next MPO/MTP cassette in distribution area of MDA, IDA or HDA data centers. It could be installed 1pc or 2pcs of 0.9mm MPO/MTP-LC harness patch cord 12C inside.

Fiber optic wallmount box is available for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected,suitable for indoor and outdoor wall-mounted & pole mounted appliance.

MPO/MTP Fiber Optic Patch Panel is used for trunk cable connection and distribution cable management in distribution area of MDA, IDA or HDA data centers. It could be installed in 19 inch racks and cabinets. It could accommodate MPO/MTP cassette modules or MPO/MTP adapter panels.

SZOPT’s 19” 1U/2U/3U/4U fiber optic patch panel are SC/FC/ST/LC port ,12/24/48/96/144/288 fibers with the cold rolled steel powder well coated,designed to fit standard 19” racks. These patch panels are ideal for high density LAN interconnect or cross-connect patching,providing a designated terminus for interrelated cabling deployments.

Optical Cable Cross-connection Cabinet is used as the interface device at the splice of the trunk cable and wiring cable in the access network. It is mainly used for the connection, distribution and scheduling of the outdoor cables.The fiber capacity can be 12 core,24 core...288 core and 576 core max.

4/8/16/32/64/128 Core PLC splitter distribution box is used as a termination point for the feeder cable to connect with optical splitter in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

This is a kind of ABS box PLC Splitter available with 1X4/1X8/1X16/1X32/1X64/1X128,2X4/2X8/2X16/2X32/2X64/2X128,the terminators can be  sc/lc/fc/st in 3.0mm or 2.0mm cable,the cable length is usually 1-1.5m.Available wavelength is:1260-1650nm.
