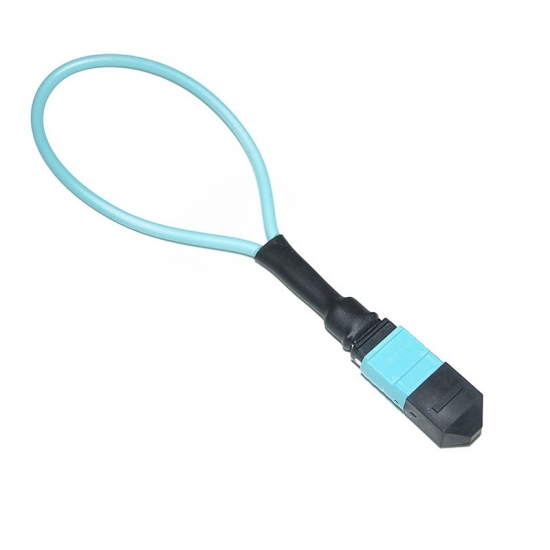

Fiber Optic Loopback Cable MPO MTP Singlemode Multimode

Fiber optic loopback plugs are designed for equipment testing, self-testing, engineering, network diagnostics and measurement applications.These devices are typically used for testing the transmission capability and receiver sensitivity of network equipment,and play an important role in fiber optic link troubleshooting.

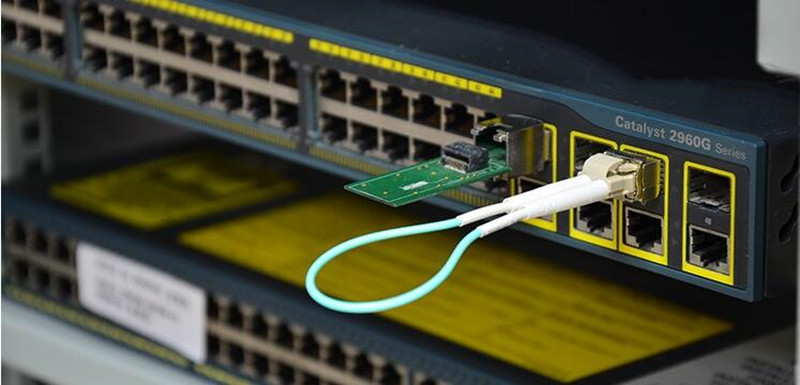

Fiber loopback cable is often utilized to check whether the transceiver module is working perfectly as designed. As we all know,transceiver module has two ports, a transmitter port and a receiver port. The former one is to send out laser signals and the latter is to receive signals.

Fiber optic loopback modules LC are designed to provide test engineers with an effective way of testing the transmission capability and receiver sensitivity of optical network equipment.

Fiber loopback is designed to provide a media of return patch for a fiber optic signal; typically it is used for fiber testing applications or network restorations. For the testing applications, the loopback signal is used for diagnosing a problem.

The LC fiber loopback is used to test the signal backhaul in the system or network system. Through the backhaul signal, various potential anomalies in the network link can be detected. This type of detection is commonly used to ensure the network link..
