Elite MPO MTP Trunk Cables SM MM OM3 OM4 OM5

MT-MT MT-FA Patch Cable Assembly is mainly used for a parallel optical technology module (QSFP), which connects the internal optical lens and external port to meet the signal transmission of the optical module. There are two types of MT-MT and MT-FA optional; SZOPT can provide all kinds of MT short patch cable products. It has the advantages of stable transmission and high reliability.

SZOPT’s MPO/ MTP loopback is a device widely used for parallel connection tests and an aging test of optical communication equipment. Our MPO/MTP loopback adapter can transmit the optical network signal from the transmitter to the receiver, thereby forming the optical signal receiving and transmitting loop. MPO/MTP loopback provides a fast and efficient way to test the transmission capacity and receiving sensitivity of optical network equipment. The MPO/MTP loopback has 8F, 12F, 16F, 24F, 32F channels with low loss, singlemode and multimode(OM1/OM2/OM3/OM4/OM5) options.

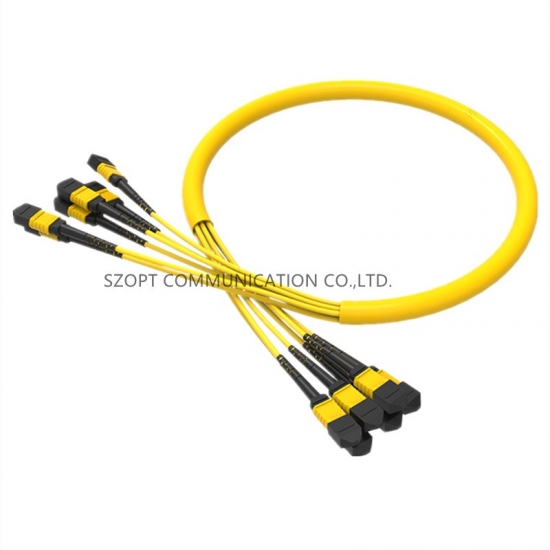

MPO/MTP Trunk Cable 24/48/72/96/144 Core is type of multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment with at least 2pcs of MPO/MTP connectors, reducing network installation or reconfiguration time and cost.MTP/MPO are used to interconnect cassettes, panels, or fan outs using a compact and rugged microcables structre. The compact cable optimizes cableway use and improve airflow.These MPO/MTP cable are build with the highest quality components , Low loss elite(premium) versions are offered accordingly,please contact SZOPT for details.

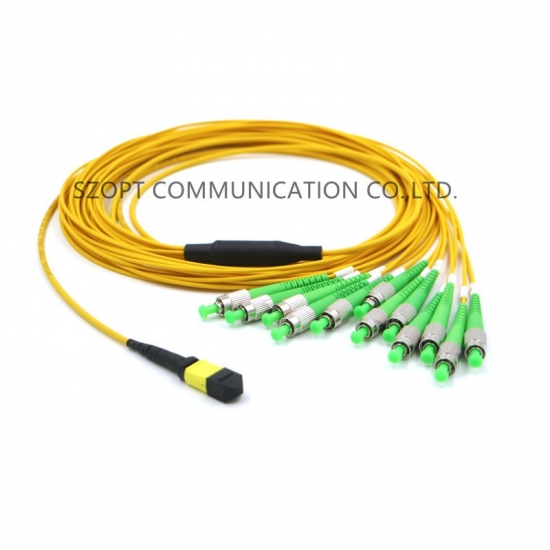

MPO/MTP to LC harness cables are used to fan out the multicore MPO/MTP fibers into generic connectors, usually it is MPO/MTP to LC, but SZOPT can also make it MPO/MTP to SC/ST/FC/MTRJ/E2000, etc. The MPO/MTP harness cable is used to transit from backbone trunk cables to fiber management racks, cable sheaths available are Mini-Core Plenum (OFNP), Mini-Core Riser (OFNR), Mini-Core Low Smoke Zero Halogen (LSZH), typical optical fiber types are single mode OS2, multimode OM1, OM2, OM3, OM4, OM5. The MPO/MTP to LC harness cables are usually 3mm ruggedized furcation legs in customized length, this will hep make it more rugged.

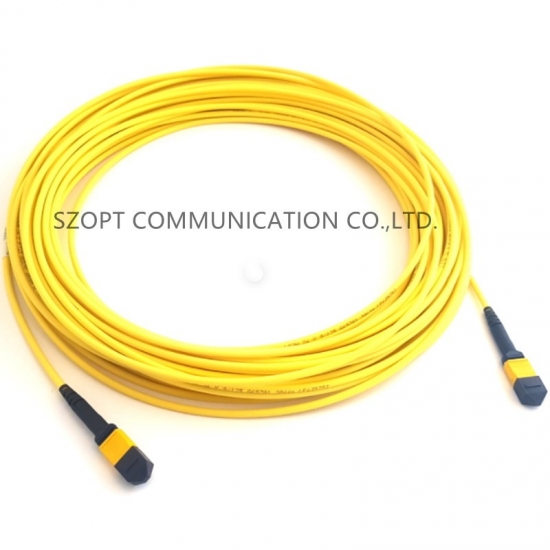

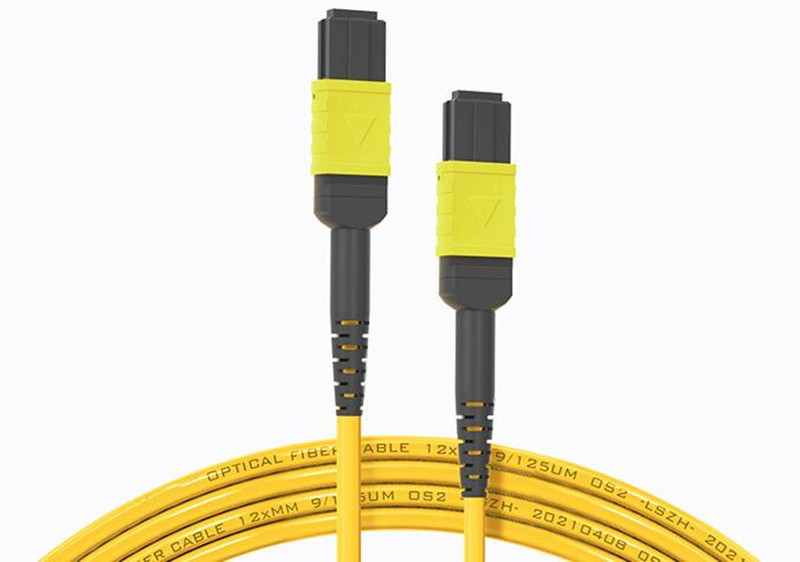

MPO/MTP Trunk Cable 12/16/24 Core is type of multicore cable assembly facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost.MTP/MPO are used to interconnect cassettes, panels, or fan outs using a compact and rugged microcables structure. The compact cable optimizes cable way use and improve airflow.These MPO/MTP cable are build with the highest quality components , Low loss elite(premium) versions are offered accordingly,please contact SZOPT for details.

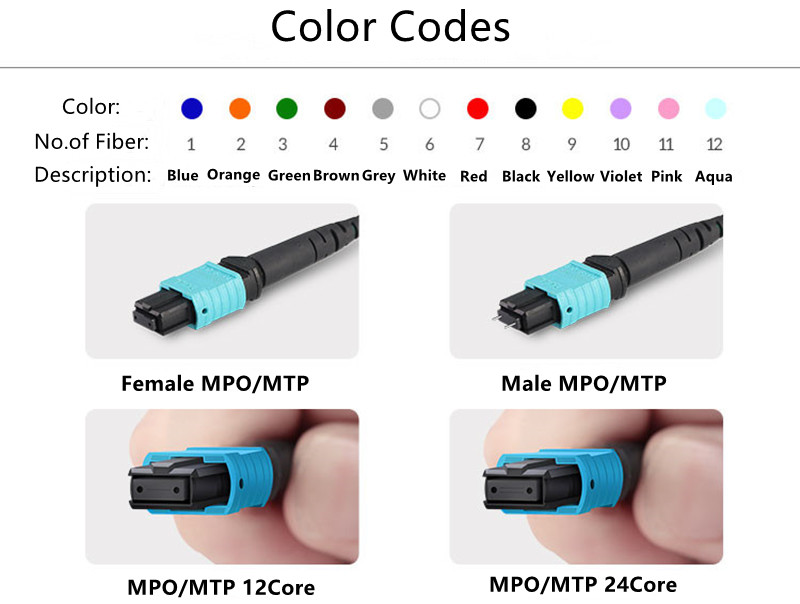

MPO/MTP harness cable 0.9mm, also known as MPO/MTP breakout cable or MPO/MTP fan-out cable, is a kind of patch cords terminated with MPO/MTP connectors on one end and MTP/MPO/LC/FC/SC/S,etc. connectors(generally MTP to LC) on the other end used for inside the MPO/MTP cassette.Female and Male MPO/MTP Connector is available.SZOPT can offer Single mode and Multimode MTP fiber optical patch cables in colors or custom,please reach us for details.

The pulling eye can further speed up the installation process compared with filed termination. It saves time during installation of conduits, ducts or risers. In addition, the pulling eye protects the connectors of the trunk cables and prevents the cables from twisting during the installation process. Since the pulling eye is strain relived directly onto the outer jacket.With the pulling eye,the tension strength of the cables can reach up to 245N.

MPO MTP Trunk Cable Double Jacket can be available for 12Core 24Core 48Core or custom,such double jacket trunk cable is of much more rigid performance for preferable deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.MTP/MPO are used to interconnect cassettes, panels, or fan outs using a compact and rugged microcables structre. The micro cable optimizes cable way use and improve airflow.These MPO/MTP cable are build with the highest quality components , better insertion loss versions are offered accordingly,please contact SZOPT for details.

Fiber Optical Patch Cord SMA-SMA has SMA connectors on both ends,with PVC,LSZH,OFNP jacket in yellow(SM);orange(OM1/OM2),aqua(OM3), magenta(OM4),lime green(OM5) or custom.Simplex or Duplex is available.

Fiber loopback cable is often utilized to check whether the transceiver module is working perfectly as designed. As we all know,transceiver module has two ports, a transmitter port and a receiver port. The former one is to send out laser signals and the latter is to receive signals.

With the development of optical fiber communication technology, especially the 3G, 4G, and 5G and WiMax base stations technology, ODVA FTTA cable assemblies are becoming more and more popular.SZOPT offers lots of types of FTTA patch cords,SZOPT keeps strict quality control from incoming raw materials,production process to final test,make sure each item from our factory are satisfied by our customers,please reach us for detail.

Optical Cable Cross-connection Cabinet is used as the interface device at the splice of the trunk cable and wiring cable in the access network. It is mainly used for the connection, distribution and scheduling of the outdoor cables.The fiber capacity can be 12 core,24 core...288 core and 576 core max.
